Aitelong SAT-17T Optical Fusion Splicer

============================================================

Features

1). Ultra-low Splice loss

2). Mirror Less Design

3). Low weight , less than 2Kg with battery and bumper

4). Full automatic heater

5). 6 sec fast splicing

6). 7800mAH large Li battery pack

7). Compatible with bare fiber, tail fiber and indoor cable

8). Wind protect, dust-proof, water-proof

============================================================

Specifications

Fiber Type : Single Fiber

Applicable Fibers : SM (single mode), MM (multi-mode), DS (dispersion), NZDS (non-zero dispersion), BIF/UBIF

Average Loss : 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS), 0.02dB (BIF/UBIF)

Return Loss : 9s / 6s (fast mode)

Typical Splicing Time : 250μm, 600μm, 900μm，2~3mm and 3.5mm

Compatiable Cable : 250μm, 600μm, 900μm，2~3mm and 3.5mm

Fiber Aligning : Core alignment and cladding alignment

Fiber Diameter :

- Cladding diameter:80 to150μm

- Coating diameter:100 to 1000μm

Magnification :

- X or Y, magnify 360X

- X + Y, magnify 180X

Image Display : High-performance 4.3 inch LCD

Tensile Test : Standard 2N

Splicing Mode : 100 (10 factoty pre-defined)

Heatig Mode : 100 (4 factory pre-defined)

Heat-Shrinkable Tubing : 60mm, 45mm, 20mm or other types

Battery Capacity :

- 7800mAH, 86.58WH

- 300 times (splicing and heating)

- Charging time: about 3h (can be used while charging)

Battery Life : 1000 charging cycles

Electroce Life : Typical 3,000 times, and replaceable

External Interface : Mini USB

Result Record : Maxmium10000 results

Heater Function : Automatic, support user defined heating mode, 0ºC ~ 300ºC adjustable

Power Supply :

- Built-in lithium battery: 11.1V;  AC/DC adapter input: AC 100-240V

- Output: DC 13.5V / 5.0A

Working Environment

- Temperature: -20°C to +55°C; Humidity: 95% RH (40°C non-condensing)

- Altitude: 0 to 5000m

Dimension : L×W×H＝166×146×159 (mm)

Weight : 1.6kg (without battery), 2.0kg (with battery)

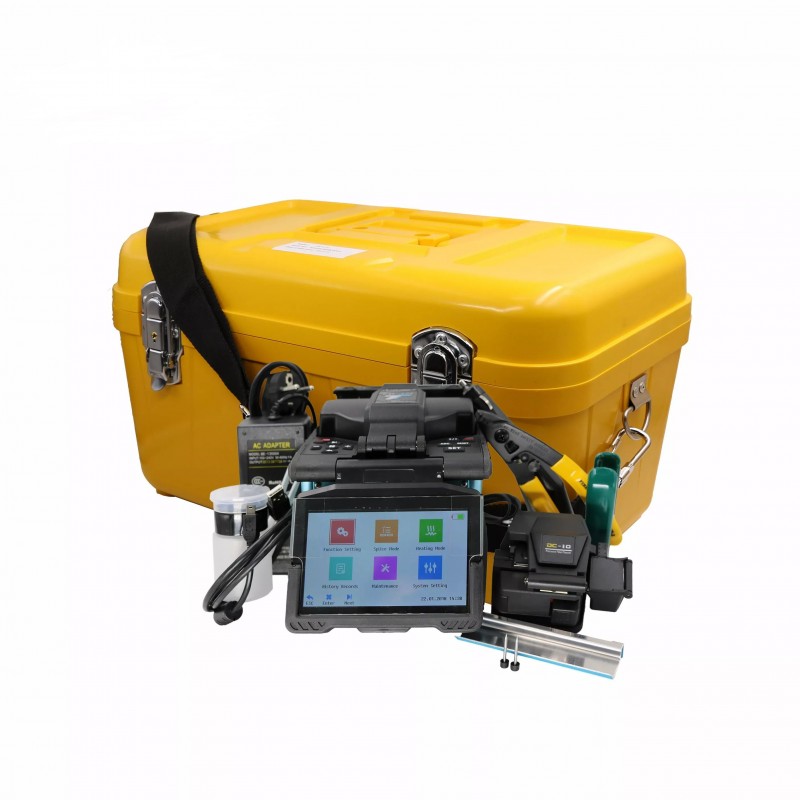

Packing List : 1. Fusion Splicer (1 pc), 2. Chargeable Battery (1 pc), 3. AC/DC Adaptor (1 pc), 4. AC Power Cable (1 pc), 5. Tweezers (1 pc), 6. Cooling Tray (1 pc), 7. Carrying case (1 pc), 8. Fiber Strippers (1 pc), 9. Indoor Cable Stripper (1 pc), 10. Alcohol Bottle (1 pc), 11. Fiber Cleaver (1 pc), 12. Warranty Card (1 pc), 13. User Manual (1 pc), 14. Packing List (1 pc), 15. QC Pass/Warranty (1 pc)

===========================================================
