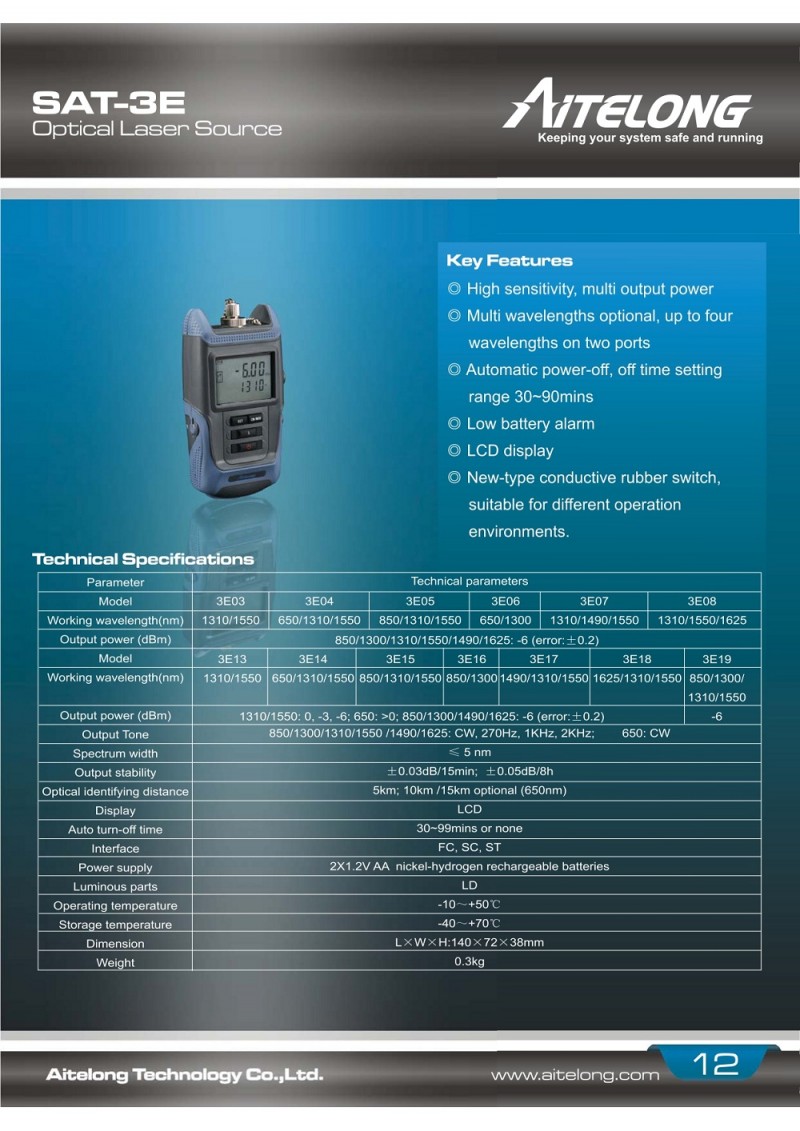

Aitelong SAT-3E-15 Optical Laser Source
============================================================
SAT-3E optical laser source fits to optical power meter to measure fiber loss and evaluate transmission performance. They are indispensable tool for optical network installation, trouble shooting, maintenance and widely used in LAN, WAN, CATV, remote optical network, etc.
Features
· High sensitivity, multi output power
· Multi wavelengths optional, up to four wavelengths on two ports
· Automatic power-off, off time setting range 30~90mins
· Low battery alarm
· LCD display
· New-type conductive rubber switch, suitable for different operation environments.
============================================================
Specifications
Model : 3E15
Working Wavelength(nm) : 850/1310/1550
Output Power (dBm) : 1310/1550 : 0, -3, -6; 650: >0; 850/1300/1490/1625 : -6 (error:±0.2)
Output Tone : 850/1300/1310/1550/1490/1625 : CW, 270Hz, 1KHz, 2KHz; 650: CW
Spectrum Width : ≤ 5 nm
Output Stability : ±0.03dB/15min; ±0.05dB/8h
Optical Identifying Distance : 5km; 10km/15km optional (650nm)
Display : LCD
Power-off Time : 30 to 99mins or none
Optical Interface : FC, SC, ST
Power Supply : 2 x 1.2V AA nickel-hydrogen rechargeable batteries
Packing List : 1. SAT-3E Series Optical laser source (1 set), 2. User Manual (1 pc), 3. Delivery inspection record (1 pc), 4. Qualified certificate of products/Warranty Card (1 pc), 5. Packing list (1 pc), 6. 1.2V 5# Ni-Mh Rechargeable battery (2 pcs), 7. Power supply adapter (1 pc), 8. ST, SC, FC adaptor (1 pc per type), 9. Soft bag (1 pc)
===========================================================
