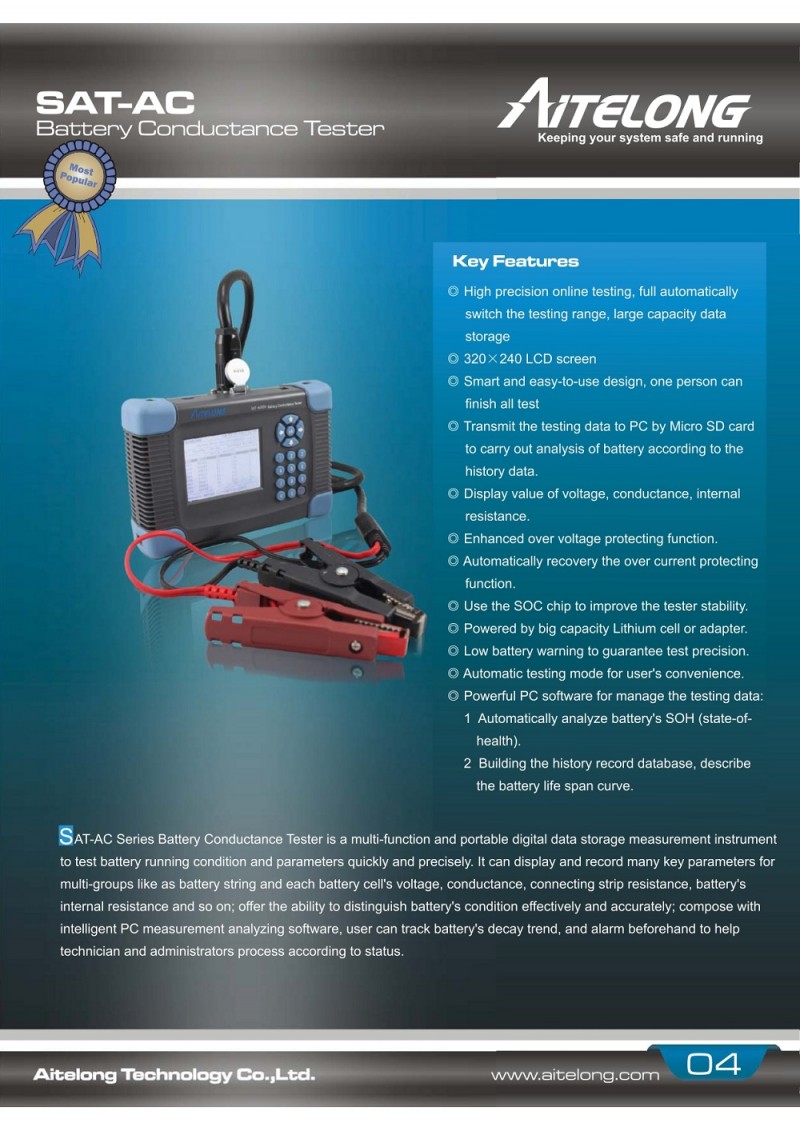

Aitelong SAT-AC650 Battery Conductance Tester
============================================================
SAT-AC Battery Conductance Tester is a multi-function and portable digital data storage measurement instrument to test battery running condition and parameters quickly and precisely. It can display and record many key parameters for multi-groups like battery string and each battery cell’s voltage, conductance, connecting strip resistance, battery’s internal resistance and so on; offer the ability to distinguish battery’s condition effectively and accurately; compose with intelligent PC measurement analyzing software, user can track battery’s decay trend, and alarm beforehand to help technician and administrators process according to status.
Applications
· Telecommunication central office, data processing center and remote site
· Power station, power plant, switchgear, UPS
· Hospitals, utilities, mining, transportation, industrial manufacturing
· Battery manufacturers and servers
Features
· online test voltage and conductance: finish all test when batteries in service
· Automatically switch test range
· Save manpower: automatically test and store results in 3~5 seconds
· Large LCD: 4 inch 320*240 LCD screen
· Data transmission: Transmit the testing data to PC via Micro SD card
· Multifunction: test voltage, conductance
· Safe and durable: over voltage and over current protection, over range alarm
· Stability: SOC chip improve testing stability
· Low battery warning
· Large data storage capacity: at least 99,999 groups of test result (each group includes max. 500 batteries) and 200 groups of configure parameter
· Probe and clamp are both available: conveniently used in all battery strings
· Powerful battery management in PC: Automatically analyze and indicate battery’s SOH (state-of-health); Building the history record database, describe the battery life graphs; Contrastive analyzing for each battery cell within the same battery string.
============================================================
Specifications
Model : SAT-AC650
Conductance Test Range : 100S-19990S
Voltage Test Range :
- 0.000 to 20.000V conductance & voltage
- 20.000 to 25.000V voltage only or warring
Measurement Precision :
- Conductance : ±0.5%rdg ±6dgt
- Voltage : ±0.2%rdg ±6dgt
Power Supply : 10.8V,2000mAh, rechargeable lithium battery
Watt Consumption : Work for 8 hours continuously
Storage Capacity : 2G Micro SD
Display : 320 x 240 matrix dot LCD
Size : 210 x 140 x 60 mm
Weight : 1.2Kg
Working Temperature : -5°C to +60°C
Humidity : 90%RH
Packing List : 1. SAT-AC650 Battery Conductance Tester (1 unit), 2. Operation manual (1 unit), 3. Product Certification (1 unit), 4. Packing list (1 unit), 5. Rechargeable battery (1 unit), 6. Power supply adapter (1 unit), 7. Measuring line (1 unit), 8. CD (1 unit), 9. SD card (1 unit), 10. SD card reader (1 unit), 11. Carry bag (1 unit)
===========================================================
