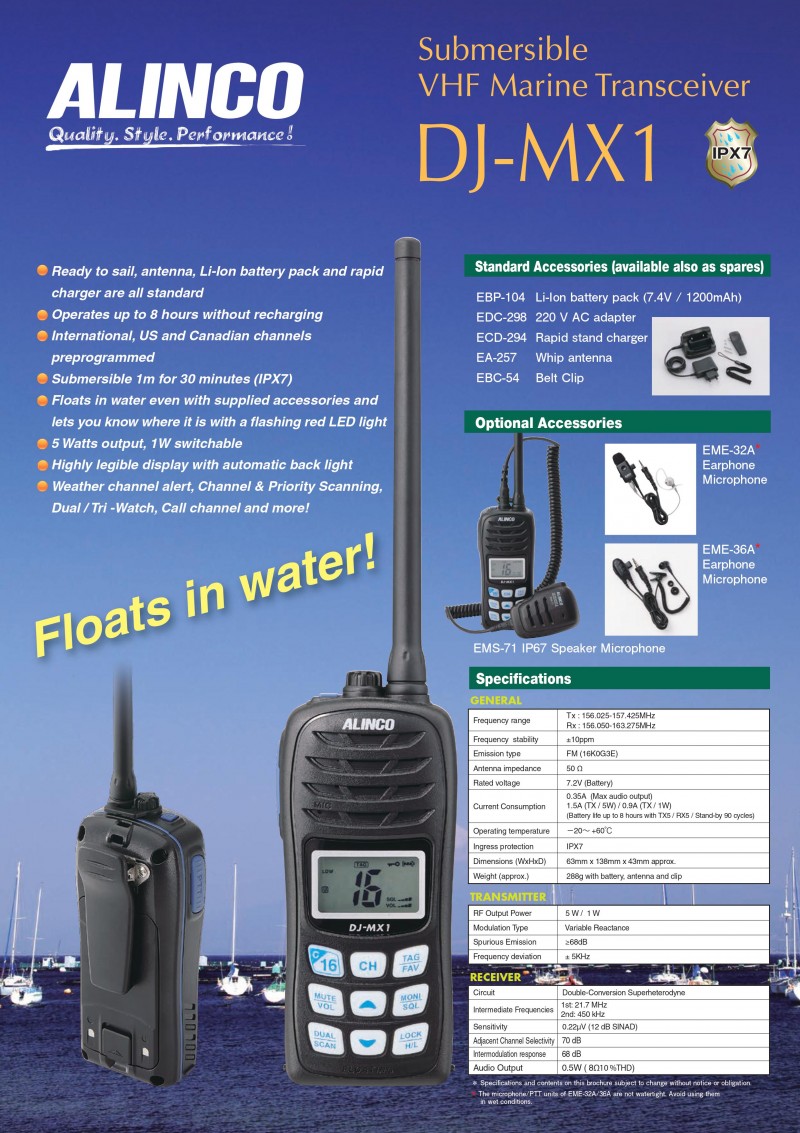

ALINCO DJ-MX1 Submersible VHF Marine Transceiver
============================================================
Features
· Ready to sail, antenna, Li-Ion battery pack and rapid charger are all standard
· Operates up to 8 hours without recharging
· International, US and Canadian channels preprogrammed
· Submersible 1m for 30 minutes (IPX7)
· Floats in water even with supplied accessories and lets you know where it is with a flashing red LED light
· 5 Watts output, 1W switchable
· Highly legible display with automatic back light
· Weather channel alert, Channel & Priority Scanning,
· Dual / Tri -Watch, Call channel and more!
============================================================
Specifications
GENERAL
Frequency range
- TX : 156.025-157.425MHz
- RX : 156.050-163.275MHz
Frequency Stability : ±10ppm
Emission Type : FM (16K0G3E)
Antenna Impedance : 50Ω
Rated Voltage : 7.2V (Battery)
Current Consumption :
- 0.35A (Max audio output)
- 1.5A (TX / 5W) / 0.9A (TX / 1W)
- (Battery life up to 8 hours with TX5 / RX5 / Stand-by 90 cycles)
Operating Temperature : -20 - +60°C
Ingress Protection : IPX7
Dimension (W x H x D) : 63 x 138 x 43 mm approx.
Weight (approx.) : 288g with battery, antenna and clip
Included : Whip Antenna (EA-257), Li-Ion Battery Pack (7.4V 1200mAh, EBP-104), Rapid Stand Charger (ECD-294), AC Adapter 220V (EDC-298), Belt Clip (EBC-54)
TRANSMITTER
RF Output Power : 5W / 1W
Modulation Type : Variable Reactance
Spurious Emission : ≥68dB
Frequency Deviation : ± 5KHz
RECEIVER
Circuit : Double-Conversion Superheterodyne
Intermediate Frequencies :
- 1st : 21.7MHz
- 2nd : 450kHz
Sensitivity : 0.22μV (12 dB SINAD)
Adjacent Channel Selectivity : 70dB
Intermodulation Response : 68 dB
Audio Output : 0.5W ( 8‑10 %THD)
===========================================================
