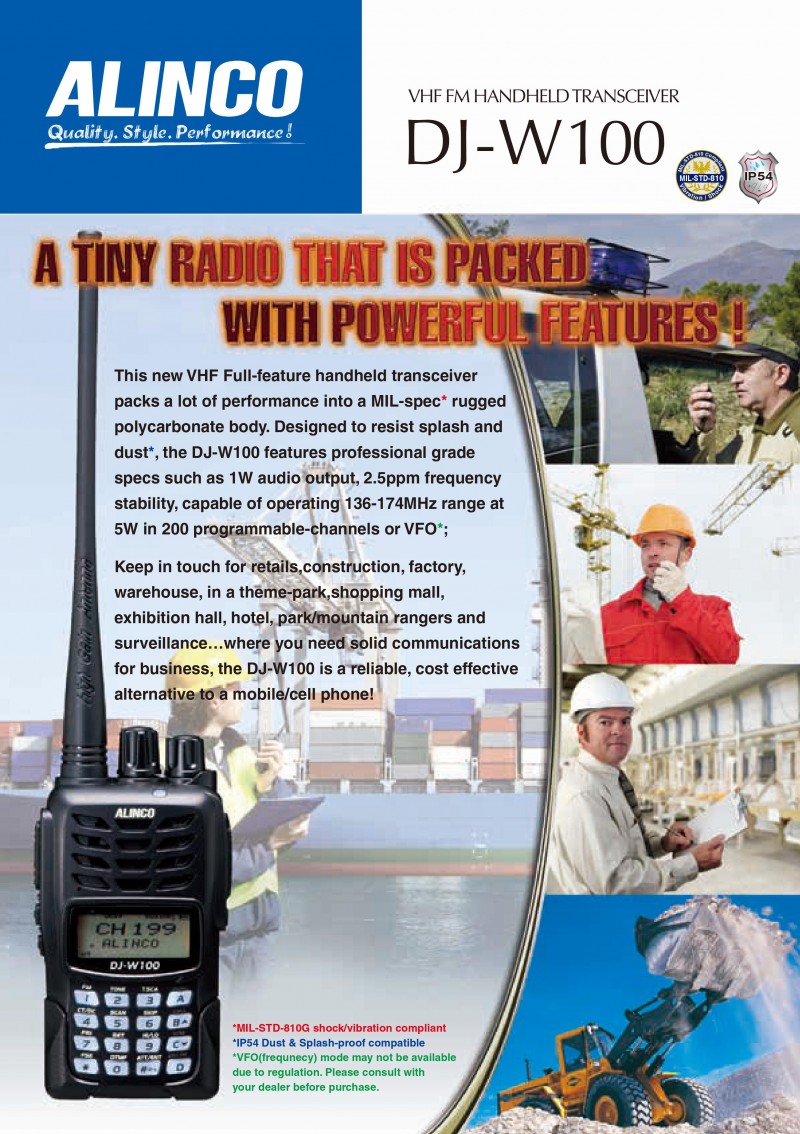

ALINCO DJ-W100 (350 – 400) VHF FM Handheld Transceiver

============================================================

This new VHF Full-feature handheld transceiver packs a lot of performance into a MIL-spec* rugged polycarbonate body. Designed to resist splash and dust*, the DJ-W100 features professional grade specs such as 1W audio output, 2.5ppm frequency stability, capable of operating 136-174MHz range at 5W in 200 programmable-channels or VFO*.

Keep in touch for retails, construction, factory, warehouse, in a theme-park, shopping mall, exhibition hall, hotel, park/mountain rangers and surveillance…where you need solid communications for business, the DJ-W100 is a reliable, cost effective alternative to a mobile/cell phone!

Features

·         IP54 Dust-Protection and Sprash-Proof

·         Plenty of operating time, over 12 Hours with standard 1700 mAh Li-Ion battery pack (TX1 : RX1 : St-by90 / EBP-88 last longer/ varies depending on conditions of use)

·         Comes with a quick stand-charger that fill-up the empty battery in 4 hours

·         Wide variety of selective calling features built-in; The 2-Tone, 5-Tone, 50 CTCSS, 114 DCS, 4 Tone-burst tones and DTMF/ANI decode

·         Radio stun/kill/revive functions to protect your communication security

·         Large, bright alphanumeric name tag LCD and easy-to-operate backlit keys

·         Loud, enhanced audio quality with audio compander

·         Analog voice scrambler and VOX built-in

·         200 programmable channels

·         3 selectable output  power 5/2/0.5W

·         FM broadcasting receiver

·         FSK short-message, BCLO, DTMF Autodialer, Reverse, Talk-Around, TOT Functions and much more!

============================================================

General Specifications

RX Frequency Coverage (76-108MHz Included) :

- TX/RX : 136.000 – 173.9975MHz

- RX only : FM radio (76 – 108MHz)

Channel Capacity : 200 channels

Channel Spacing : 25KHz (Wide Band), 20KHz (Middle Band), 12.5KHz (Narrow Band)

Phase-Locked Step : 5kHz, 6.25kHz

Operating Voltage : 7.4V DC ±20%

Battery Life : More than 12 hours (1700 mAh) by 5-5-90 work cycle

Frequency Stability : ±2.5ppm

Operating Temperature : -20°C - 50°C

Dimensions : 270 x 56 x 30mm (with battery pack, antenna)

Weight : approx. 210g inclusive of battery pack and antenna

Include : Whip Antenna (EA-211), Li-ion Battery Pack (EBP-88 Li-ion 7.4V 1700mAh), Rapid Charger Stand (EDC-189), AC Adapter (EDC-190E), Belt Clip (EBC-34)

TRANSMITTER (ETSI EN300 086 Standard Test)

Power Output : 5/2/0.5W

Modulation : 16KØF3E (Wide Band), 11KØF3E (Narrow Band)

Adjacent Channel Power : ≥70dB (Wide Band), ≥60dB (Narrow Band)

Hum & Noise : ≥40dB (Wide Band), ≥36 (Narrow Band)

Spurious Emission : ≤-36dB (Wide Band), ≤-36 (Narrow Band)

Audio Response : +1  ̶  -3dB (0.3  ̶  3kHz) (Wide Band), +1  ̶  -3dB (0.3  ̶  2.55kHz) (Narrow Band)

Audio Distortion : ≤5%

RECEIVER

Sensitivity (12dB SINAD) : ≤0.25µV (Wide Band), ≤0.35µV (Narrow Band)

Adjacent Channel Selectivity : ≥70dB (Wide Band), ≥60dB (Narrow Band)

Intermodulation : ≥65dB (Wide Band), ≥60dB (Narrow Band)

Spurious Rejection : ≥70dB (Wide Band), ≥70dB (Narrow Band)

Audio Response : +1  ̶  -3dB (0.3  ̶  3kHz) (Wide Band), +1  ̶  -3dB (0.3  ̶  2.55kHz) (Narrow Band)

Hum & Noise : ≥40dB (Wide Band), ≥36 (Narrow Band)

Audio Distortion : ≤5%

Audio output power : 1W (10%)

===========================================================
