ALINCO DJ-W35 (350 – 400) UHF FM Handheld Transceiver

============================================================

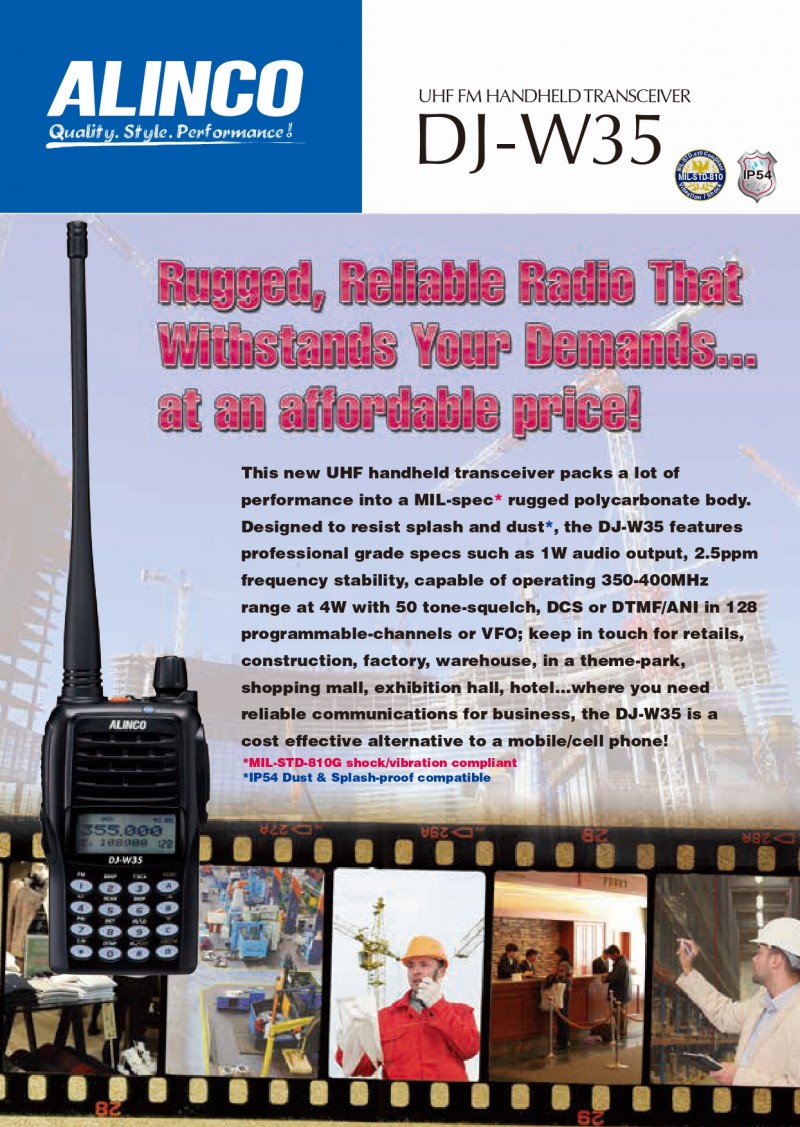

This new UHF handheld transceiver packs a lot of performance into a MIL-spec* rugged polycarbonate body.

Designed to resist splash and dust*, the DJ-W35 features professional grade specs such as 1W audio output, 2.5ppm frequency stability, capable of operating 350-400MHz range at 4W with 50 tone-squelch, DCS or DTMF/ANI in 128 programmable-channels or VFO.

Keep in touch for retails, construction, factory, warehouse, in a theme-park, shopping mall, exhibition hall, hotel…where you need reliable communications for business, the DJ-W35 is a cost effective alternative to a mobile/cell phone!

Features

·         128 channels to program operating parameters via PC utility software

·         Channel, Name Tag and VFO (Frequency) display modes selectable

·         Comes with a rechargeable Li-Ion pack, desktop quick-charger and high-performance whip antenna

·         Ergonomically designed compact body 59.0W x 98.0H x 35.0D mm or 2.32W x 3.86H x 1.38D inches (w/o projections, approx.), weights approx. 227g or 8.01oz inclusive of battery pack and antenna

·         3 types of Scan Functions (VFO/Memory Channels/Priority), 50 CTCSS, 116 DCS and 4 Tone-burst tones

·         Backlit, Dot Matrix LCD screen with alphanumeric name tag

·         Microphone and speaker ports

·         Includes FM radio receiver, Internal VOX, Voice-prompt in English, Remote-Kill/Stun/Waken, Analog Scrambling, Voice Compander, Narrow FM, Repeater-Reverse, Auto-Power Off, busy-Channel Lockout, Time-Out-Timer and more and more at No extra cost!

============================================================

General Specifications

RX Frequency Coverage (76-108MHz Included) :

- TX/RX : 350.000 – 399.995MHz

- RX only : 76 – 108MHz

Mode : F3E(16K0F3E / 11K0F3E / RX only WFM)

Programmable Channels : 128 Channels

Frequency Stability : ±2.5ppm

Power Supply Requirement : 7.4V (Battery) DC ±20% (negative ground)

Current Drain (Approx.) : 1400mA TX / 300mA receive at Max audio output / 70mA squelched

Usable Temperature Range : -20°C - 55°C

Channel Step : 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz

Dimensions (Projections not included/approx.) : 59.0W x 98.0H x 35.0D mm

Weight : approx. 227g inclusive of battery pack and antenna

Include : Whip Antenna (EA-218), Li-ion Battery Pack (EBP-88 Li-ion 7.4V 1700mAh), Rapid Charger Stand (EDC-189), AC Adapter (EDC-190E), Belt Clip (EBC-34)

TRANSMITTER (ETSI EN300 086 Compliant)

Output Power : Approx. 4W / 2W / 0.5W

Modulation System : Variable Reactance FM

Spurious Emission : Less than -36dBm

Max. Frequency Deviation : ± 5kHz / ± 2.5kHz

RECEIVER

Receiver System : Double Conversion Superheterodyne

Intermediate Frequencies : 26.45MHz

Sensitivity (12dB SINAD Wide/Narrow) : Wide -12dBµ (0.25µV/0.35µV) or better

Selectivity :

·         -6dB : Wide 12kHz / Narrow 10kH or more

·         -60dB : Wide 30kHz / Narrow 24kHz or less

Audio output power : 1000mW (10% distortion)

===========================================================
