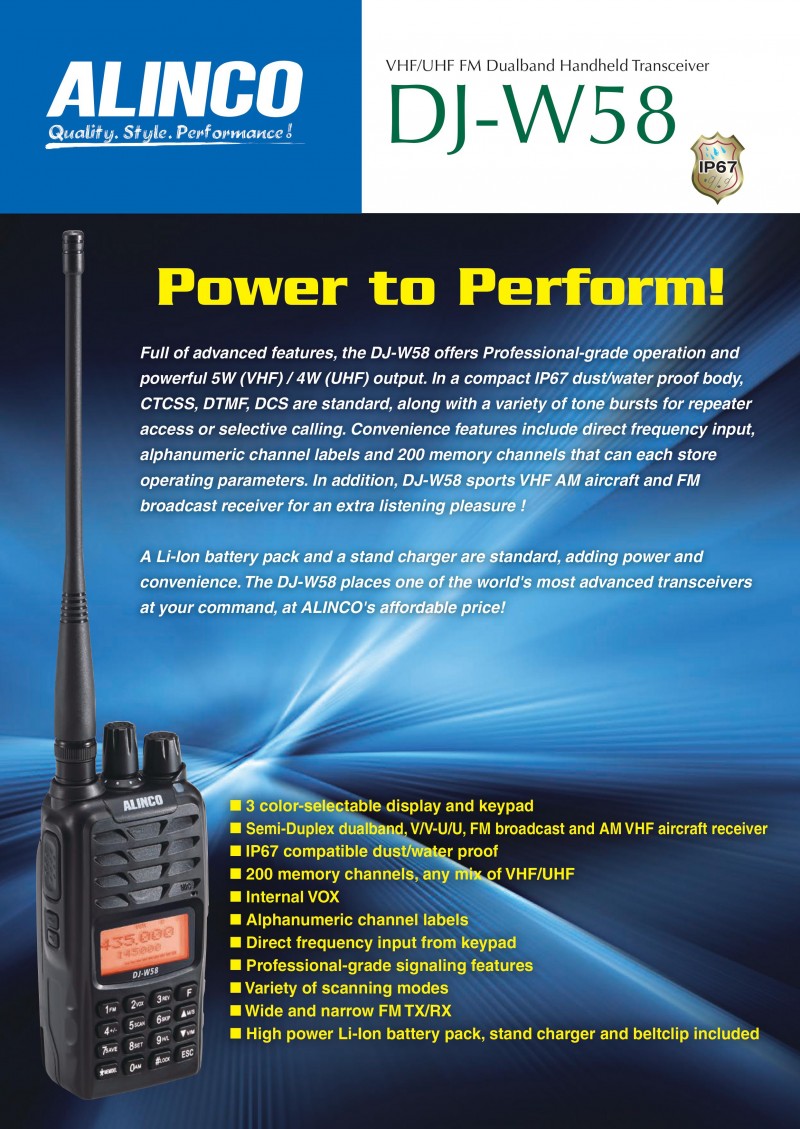

ALINCO DJ-W58 VHF/UHF FM Dualband Handheld Transceiver

============================================================

Full of advanced features, the DJ-W58 offers Professional-grade operation and powerful 5W (VHF) / 4W (UHF) output. In a compact IP67 dust/water proof body, CTCSS, DTMF, DCS are standard, along with a variety of tone bursts for repeater access or selective calling. Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters. In addition, DJ-W58 sports VHF AM aircraft and FM broadcast receiver for an extra listening pleasure!

A Li-Ion battery pack and a stand charger are standard, adding power and convenience. The DJ-W58 places one of the world's most advanced transceivers at your command, at ALINCO's affordable price!

Features

·         3 color-selectable display and keypad

·         Semi-Duplex dualband, V/V-U/U, FM broadcast and AM VHF aircraft receiver

·         IP67 compatible dust/water proof

·         200 memory channels, any mix of VHF/UHF

·         Internal VOX

·         Alphanumeric channel labels

·         Direct frequency input from keypad

·         Professional-grade signaling features

·         Variety of scanning modes

·         Wide and narrow FM TX/RX

·         High power Li-Ion battery pack, stand charger and beltclip included

============================================================

General Specifications

RX Frequency Coverage (76-108MHz Included) :

- FM : 136 – 174MHz / 400 – 438MHz

- WFM : 76 – 107.95MHz

- AM : 118 – 135.99MHz

TX Frequency Coverage : 136 – 174MHz, 400 – 438MHz

Modulation : F3E(16K0F3E / 11K0F3E / RX only WFM, AM)

Frequency Stability : ±2.5ppm

Power Supply Requirement : 7.4V (Battery)

Current Drain (Approx.) : 1500mA TX / 300mA receive at Max audio output / 80mA squelched

Usable Temperature Range : -20°C - 55°C

Channel Step : 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz

Dimensions : 118 x 59 x 38 mm (with battery pack)

Weight : approx. 230g inclusive of battery pack and antenna

Include : Whip Antenna (EA-249), Li-ion Battery Pack (EBP-101 Li-ion 7.4V 1800mAh), Rapid Charger Stand (EDC-219), AC Adapter (EDC-220), Belt Clip (EBC-51)

TRANSMITTER

Output Power : Approx. 5W(VHF) / 4W(UHF) / 2W / 1W

Frequency Deviation : ± 5kHz / ± 2.5kHz

Spurious Emission : Less than -27dBm

RECEIVER

Receiver System : Double Conversion

Sensitivity (12dB SINAD Wide/Narrow) : Wide -12dBµ / Narrow -9dBµ

Adjacent Channel Selectivity : Wide more than 65dB / Narrow more than 60dB

Audio output power : 1W (10% distortion)

===========================================================
