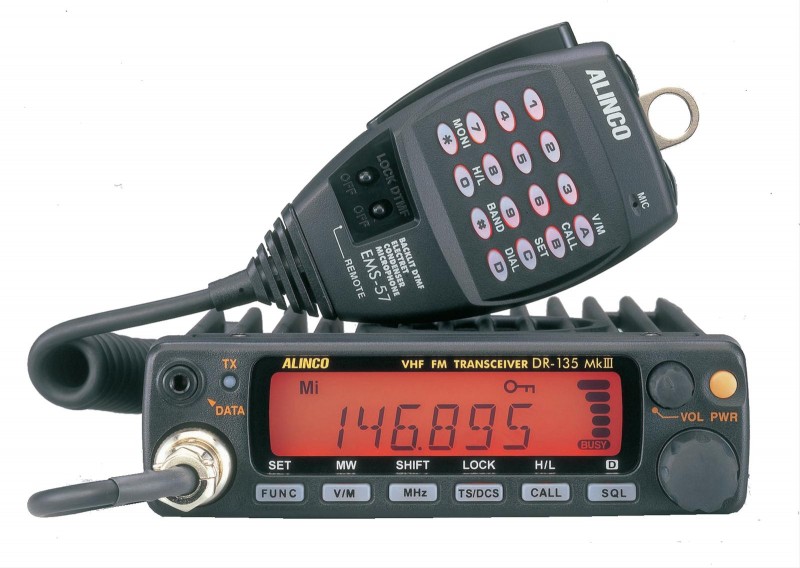

ALINCO DR-135 MKIII VHF Mobile/base FM Transceiver
============================================================
Features
· Huge Alphanumeric Display and Rugged Construction
· Conventional or Narrow FM Modes
· Variety of Scan Modes
· Multi-Function, Backlit Microphone Enables Direct Frequency Entry
· 3 Selectable Output Power Levels
============================================================
Specifications
GENERAL
Frequency Range :
- TX/RX : 146-174 MHz
- RX only : 118-135.995MHz (AM), 236-273.995MHz (FM)
Operating Mode : 16K03FE (FM), 8K50F3E (NFM)
Memory Channel : 100
Frequency Stability : ±2.5ppm
Rated Voltage : 13.8VDC ±15%
Current : 12A max.
Operating Temperature : -10°C to 60°C
Dimensions : 142 (W) x 40 (H) x 174 (D) mm
Weight : Approx. 1.0kg
Power Output : 50W (HI)/20W (MID)/approx. 5W (LOW)
Maximum Frequency Deviation : ±5kHz/±2.5kHz (Narrow Mode)
Sensitivity : -12dBµ (0.25µV) or less for 12dB SINAD
Squelch Sensitivity : -16.0dBµ (0.1µV)
Selectivity (-6dB) : 12kHz or More/6kHz or More (Narrow Mode)
Selectivity (-60dB) : 28kHz or More/16kHz or More (Narrow Mode)
Audio Output : 2.0W (8Ω, 10%THD)
Included : DTMF Microphone (EMS-57), Bracket (ADFM-78), DC Power Cable (ADU-A38), Alarm Cable (ADALM-135)
===========================================================
