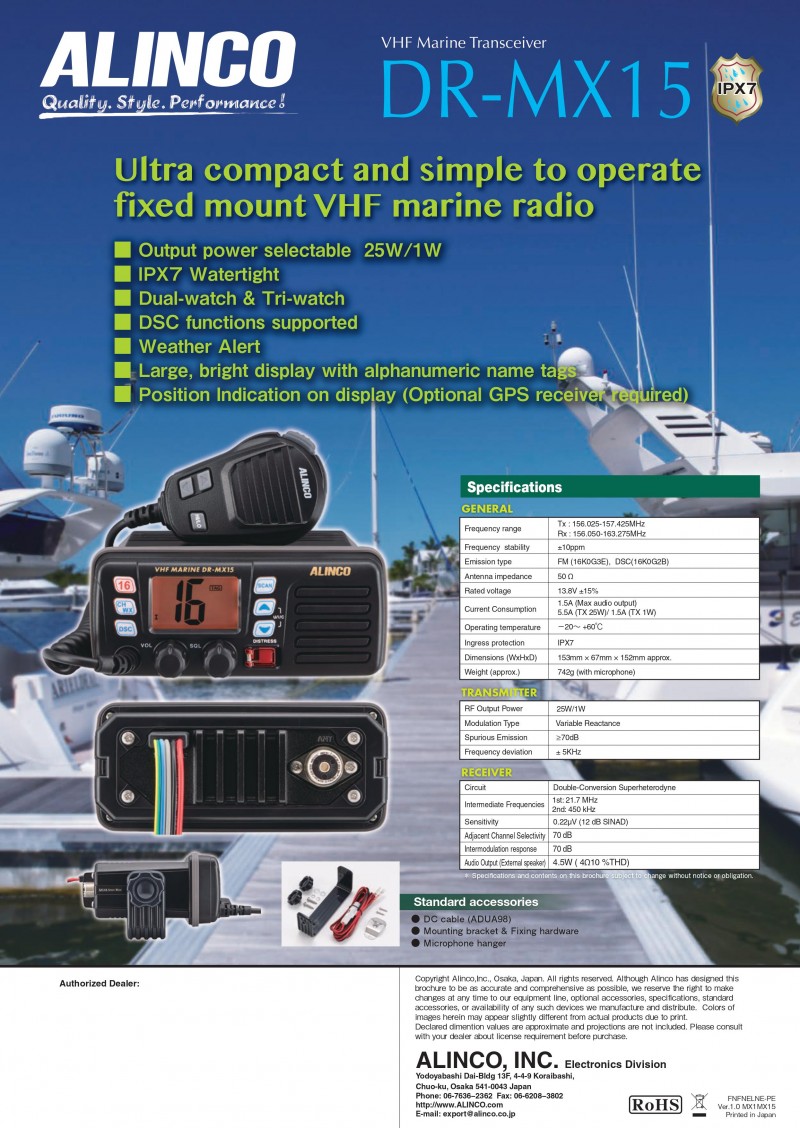

ALINCO DR-MX15 VHF Marine Transceiver
============================================================
Ultra compact and simple to operate fixed mount VHF marine radio.
Features
· Output power selectable 25W / 1W
· IPX7 Watertight
· Dual-watch & Tri-watch
· DSC functions supported
· Weather alert
· Large, bright display with alphanumeric name tags
· Position Indication on display (Optional GPS receiver required)
============================================================
Specifications
GENERAL
Frequency Range :
- TX : 156.025 – 157.425MHz
- RX : 156.050 – 163.275MHz
Frequency Stability : ±10ppm
Emission Type : FM (16K0G3E), DSC (16K0G2B)
Antenna Impedance : 50Ω
Rated Voltage : 13.8V ±15%
Current Consumption : 1.5A (Max. Audio output), 5.5A (TX 25W) / 1.5A (TX 1W)
Operating Temperature : -20°C - +60°C
Ingress Protection : IPX7
Dimension : 153mm (W) x 67mm (H) x 152mm (D) approx.
Weight (approx.) : 742g (with microphone)
Included : DC Cable (ADU A98), Mounting Bracket & Fixing Hardware, Microphone Hanger
TRANSMITTER
RF Output Power : 25W / 1W
Modulation Type : Variable Reactance
Spurious Emission : ≥70dB
Frquency Deviation : ± 5Hz
RECEIVER
Circuit : Double-Conversion Superheterodyne
Intermediate Frequencies :
- 1st : 21.7MHz
- 2nd : 450kHz
Sensitivity : 0.22µV (12 dB SINAD)
Adjacent Channel Selectivity : 70 dB
Intermodulation Response : 70 dB
Audio Output (External Speaker) : 4.5W (4Ω 10% THD)
===========================================================
