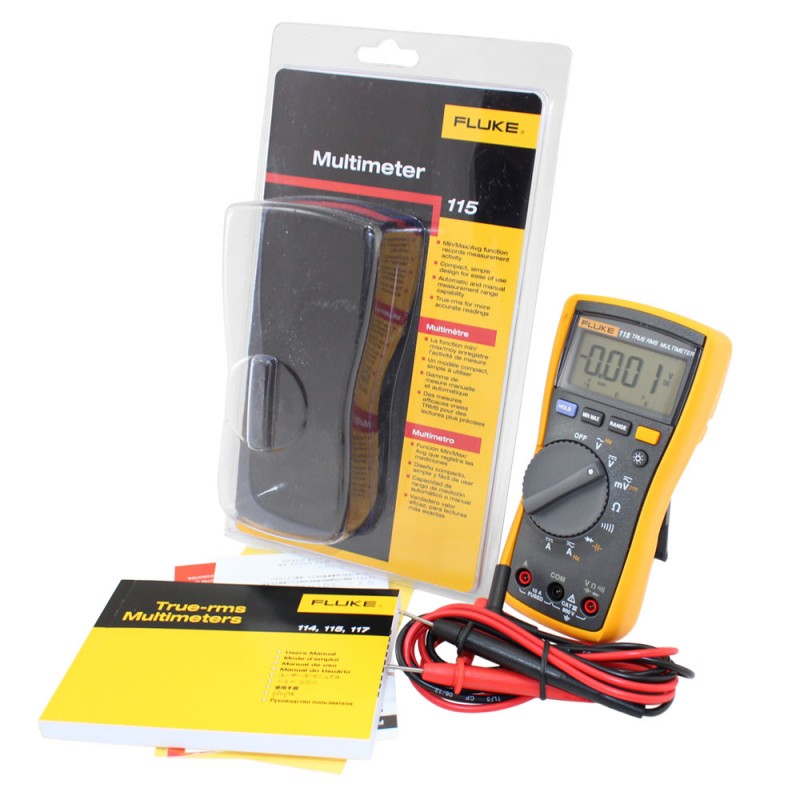

Fluke 115 Field Technicians Digital Multimeter

============================================================

Features

·         Compact True-rms digital multimeter for field service

·         Includes: meter, holster, 4 mm PVC-Insulated test lead

·         Easy one-handed operation of the meter

·         Min/Max/Average to record signal fluctuations

============================================================

Specifications

DC millivolts :

- Range/resolution : 600.0 mV / 0.1 mV

- Accuracy : ± ([% of reading] + [counts]): 0.5% + 2

DC volts :

- Range/resolution : 6.000 V / 0.001 V | 60.00 V / 0.01 V | 600.00 V / 0.1 V

- Accuracy : ± ([% of reading] + [counts]): 0.5% + 2

AC millivolts1 True RMS :

- Range/resolution : 600.0 mV / 0.1 mV

- Accuracy : 1.0% + 3 (DC, 45 Hz to 500 Hz). 2.0% + 3 (500 Hz to 1 kHz)

AC volts True RMS :

- Range/resolution : 6.000 V / 0.001 V | 60.00 V / 0.01 V | 600.0 V / 0.1 V

- Accuracy : 1.0% + 3 (DC, 45 Hz to 500 Hz). 2.0% + 3 (500 Hz to 1 kHz)

Continuity :

- Range/resolution : 600 Ω / 1 Ω

Accuracy : Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.

Ohms :

- Range/resolution : 600.0 Ω / 0.1 Ω | 6.000 kΩ / 0.001 kΩ | 60.00 kΩ / 0.01 kΩ | 600.0 kΩ / 0.1 kΩ | 6.000 MΩ / 0.001 MΩ

- Accuracy : 0.9% + 1

- Range/resolution : 40.00 MΩ / 0.01 MΩ

- Accuracy : 5% + 2

Diode test :

- Range/resolution : 2.00 V / 0.001 V

- Accuracy : 0.9% + 2

Capacitance :

- Range/resolution : 1000 nF / 1 nF | 10.00 μF / 0.01 μF | 100.0 μF / 0.1 μF | 9999 μF / 1 μF | 100 μF to 1000 μF

- Accuracy : 1.9% + 2

- Range/resolution : > 1000 μF

- Accuracy : 5% + 20%

Lo-Z capacitance :

- Range : 1 nF to 500 μF

- Accuracy : 10% + 2 typical

AC amps True RMS (45 Hz to 500Hz) :

- Range/resolution : 6.000 A / 0.001 A | 10.00 A / 0.01 A

- Accuracy : 1.5% + 3. 20 A overload for 30-seconds max

DC amps :

Range/resolution : 6.000 A / 0.001 A. 10.00 A / 0.01 A

Accuracy : 1.0% + 3. 20 A overload for 30-seconds max

Hz (V or A input) :

- Range/resolution : 99.99 Hz / 0.01 Hz | 999.9 Hz / 0.01 Hz | 9.999 kHz / 0.001 kHz | 50.00 kHz / 0.01 kHz

- Accuracy : 0.1% + 2

General Specifications

Maximum voltage between any terminal and earth ground : 600 V

Safety : IEC 61010-1: Pollution Degree 2. IEC 61010-2-033: CAT III 600V

Display : Digital: 6,000 counts, updates 4 per second

Bar graph : 33 segments, updates 32 per second

Operating temperature : -10℃ to + 50℃

Storage temperature : -40℃ to + 60℃

Battery type : 9 volt Alkaline, IEC 6LR61

Battery life : 400 hours typical, without backlight

Size : 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

Weight : 550 g

Included : Holster, Installed 9V battery, 4 mm PVC-Insulated test lead, User manual

===========================================================
