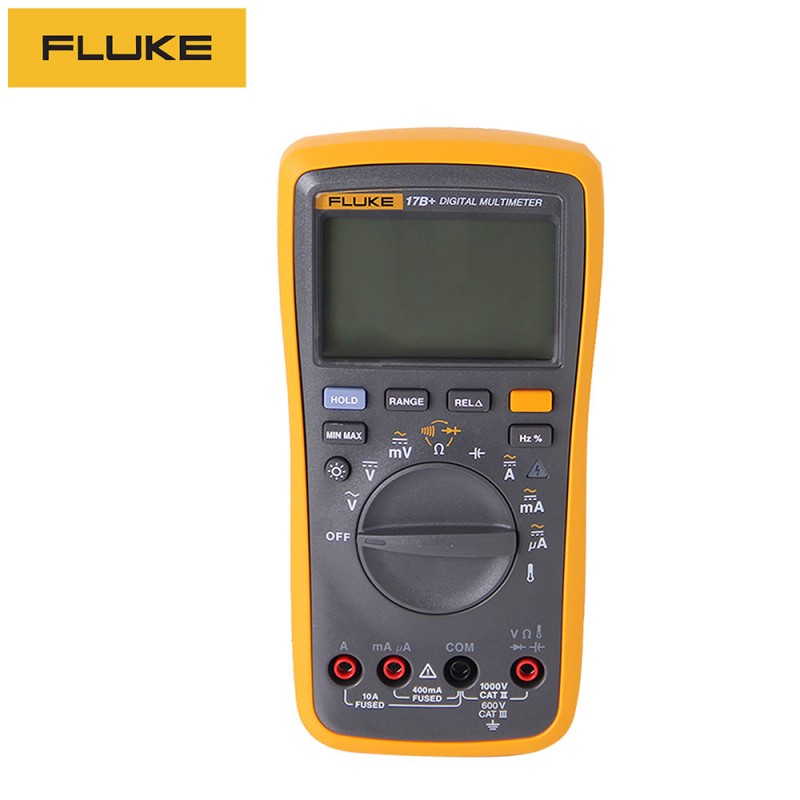

Fluke 17B+ Digital Multimeter
============================================================
Features
· 600 V Cat III safety rating
· 50% bigger display with bright white backlight
· Over-voltage indicator
· Frequency and temperature measurement
· Voltage, resistance, continuity, capacitance
· Input terminal for ac and dc current measurements to 10 A current
· Diode test, data hold
============================================================
Specifications
AC volts (40 Hz to 500Hz) :
- Range : 1000 V
- Resolution : 0.001 V
- Accuracy : 1.0% + 3
DC volts :
- Range : 1000 V
- Resolution : 0.001 V
- Accuracy : 0.5% + 3
AC millivolts :
- Range : 400 mV
- Resolution : 0.1 mV
- Accuracy : 3.0% + 3
DC millivolts :
- Range : 400 mV
- Resolution : 0.1 mV
- Accuracy : 1.0% + 10
Diode test :
- Range : 2V
- Resolution : 0.001 V
- Accuracy : 10%
Resistance (Ohms) :
- Range : 40 MΩ
- Resolution : 0.1 Ω
- Accuracy : 0.5% + 3
Capacitance :
- Range : 1000 μF
- Resolution : 0.01 nF
- Accuracy : 2% + 5
Frequency Hz (10 Hz – 100 kHz) :
- Range : 100 kHz
- Resolution : 0.01 Hz
- Accuracy : 0.1% + 3
Duty Cycle :
- Range : 1% to 99%
- Resolution : 0.1%
- Accuracy : 1% typical
AC current μA (40 Hz to 400 Hz) :
- Range : 4000 μA
- Resolution : 0.1 μA
- Accuracy : 1.5% + 3
AC current mA (40 Hz to 400 Hz) :
- Range : 400 mA
- Resolution : 0.01 mA
- Accuracy : 1.5% + 3
DC current μA :
- Range : 4000 μA
- Resolution : 0.1 μA
- Accuracy : 1.5% + 3
DC current mA :
- Range : 400 mA
- Resolution : 0.01 mA
- Accuracy : 1.5% + 3
DC current A :
- Range : 10 A
- Resolution : 0.001 A
- Accuracy : 1.5% + 3
Backlight : Yes
AC volts :
- Overload protection : 1000 V
- Input impedance (Nominal) : >10 MΩ <100 pF
- Common mode rejection ratio : >60 dB at dc, 50 Hz or 60 Hz
AC millivolts :
- Overload protection : 400 mV
- Input impedance (Nominal) : >1MΩ, <100 pF
- Common mode rejection ratio : >80 dB at 50 Hz or 60 Hz
DC volts :
- Overload protection : 1000 V
- Input impedance (Nominal) : >10 MΩ <100 pF
- Common mode rejection ratio : >100 dB at dc, 50 Hz or 60 Hz
- Normal mode rejection ratio : >60 dB at 50 Hz or 60 Hz
DC millivolts :
- Overload protection : 400 mV
- Input impedance (Nominal) : >1MΩ, <100 pF
- Common mode rejection ratio : >80 dB at 50 Hz or 60 Hz
General specifications
Maximum voltage between any terminal and earth ground : 1000 V
Display (LCD) : 4000 counts, updates 3/sec
Battery type : 2 AA, NEDA 15A, IEC LR6
Battery life : 500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.)
Temperature
- Operating : 0 °C to 40 °C
- Storage : -30 °C to 60 °C
Altitude : 2000 m, Storage : 12,000 m
Temperature coefficient : 0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Fuse protection for current inputs : 440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only.
Size (H x W x L) : 183 x 91 x 49.5 mm
Weight : 455 g
IP rating : IP 40
Safety : IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2
Electromagnetic environment : IEC 61326-1: Portable
Includes : TL75 test leads with two caps, 2 AA batteries, User’s manual
===========================================================
