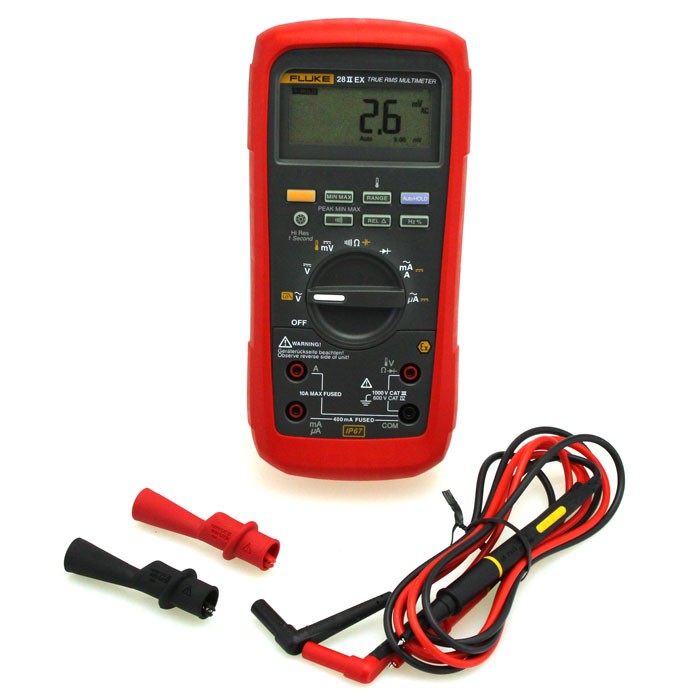

Fluke 28 II Ex Intrinsically Safe True RMS Digital Multimeter

============================================================

Features

·         A completely sealed, IP67 rated case

·         Withstands drops up to 10 ft or 3 m (with holster)

·         Dustproof per IEC 60529 IP6x

·         Waterproof per IEC 60529 IPx7

·         CAT III 1000 V, CAT IV 600 V

·         Reversible holster for added protection of the display when not in use

============================================================

Specifications

DC voltage :

- Range : 0.1 mV to 1000 V

- Accuracy : ±(0.05% + 1)

AC voltage :

- Range : 0.1 mV to 1000 V

- Accuracy : ±(0.7% + 4)

DC current :

- Range : 0.1 μA to 10 A

- Accuracy : ±(0.2% + 4)

AC current :

- Range : 0.1 μA to 10 A

- Accuracy : ±(1% + 2)

Resistance :

- Range : 0.1 Ω to 50 MΩ

- Accuracy : ±(0.2% + 1)

Conductance :

- Range : 60.00 nS

- Accuracy : ±(1.0% + 10)

Diode test :

- Range : 2.0 V

- Accuracy : ±(2.0% + 1)

Duty cycle :

- Range : 0.0% to 99.9%

- Accuracy : Within ±(0.2% per kHz + 0.1%) for rise times <1 µs

Capacitance :

- Range : 10 nF to 9999 μF

- Accuracy : ±(1% + 2)

Frequency :

- Range : 0.5 Hz to 199.99 kHz

- Accuracy : ±(0.005% + 1)

Temperature :

- Range : -200°C to +1090°C

- Accuracy : ±(1% + 10)°C

Display counts : 6000 counts/19,999 counts in high-resolution mode

Peak capture : Record transients up to 250 us

Min/Max/Avg recording : Display signals up to approximately 100 ms

Safety Certifications

ATEX : {Ex} II 2G Ex ia IIC T4 Gb. {Ex} I M1 Ex ia I Ma

NEC-500 : Class I, Div 1, Groups A-D, 130°C

IECEx : Ex ia IIC T4 Gb. Ex ia I Ma

GOST R Ex : 1Ex ia IIC T4 Gb X. PO Ex ia I Ma X. IP6X

General Specifications

Power : Three AAA batteries. Battery life: 400 hours

Display : LCD, with backlight

External protection : Rubber holster

Size with holster (H x W x L) : 6.4 x 10.0 x 19.8 cm

Weight with holster : 700 g

===========================================================
