Fluke 287 True-RMS Electronics Logging Multimeter
============================================================
Features
Equipped with new functionality
· TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred.
· Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
· Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
· Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.
· Large 50,000 count, 1/4 VGA display with white backlight. Multiple sets of measurement information can be simultaneously displayed at the same time.
· Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events.
· On board help screens for measurement functions.
· Saved measurements allow you to name and recall measurements made in the field.
· Multi-lingual interface.
· Multiple logging sessions possible without download.
· 0.025% basic DC accuracy.
· 100 kHz AC bandwidth.
· Real time clock for automatic time stamping of saved readings.
· True-RMS AC voltage and current for accurate measurements on complex signals or non-linear loads. AC bandwidth specified to 100 kHz.
· Measure up to 10 A (20 A for 30 seconds).
· 100 mF capacitance range.
· Temperature function.
· Relative mode to remove test lead resistance from low ohms or capacitance measurements.
· Peak capture to record transients as fast as 250 μs.
· Premium test leads and alligator clips included.
· Amp jack plugs included.
· Optional FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
· Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job.
============================================================
Specifications
Function
DC volts :
- Range / resolution : 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
- Basic accuracy : 0.025%
AC volts :
- Range / resolution : 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
- Basic accuracy : 0.4% (True-RMS)
DC current :
- Range / resolution : 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
- Basic accuracy : 0.05%
AC current :
- Range / resolution : 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
- Basic accuracy : 0.6% (True-RMS)
Temperature (excluding probe) :
- Range / resolution : -200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
- Basic accuracy : 1.0%
Resistance :
- Range / resolution : 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
- Basic accuracy : 0.05%
Capacitance :
- Range / resolution : 1.000 n, 10.00 nF, 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
- Basic accuracy : 1.0%
Frequency :
- Range / resolution : 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
- Basic accuracy : 0.005%
Connectivity : Optional infrared connector via Fluke ir3000 FC
General Specifications
Maximum voltage between any terminal and earth ground : 1000 V
Battery type : 6 AA alkaline batteries, IECLR6
Battery life : 100 hours minimum, 200 hours in logging mode
Temperature :
- Operating : -20°C to 55°C
- Storage : -40°C to 60°C
Relative humidity : 0 to 90% (0 t 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)
Electromagnetic compatibility : EMC EN61326–1
Vibration : Random vibration per MIL-PRF-28800F Class 2
Shock : 1 meter drop per IEC/EN 61010–1 3rd Edition
Size (H x W x L) : 22.2 x 10.2 x 6 cm
Weight 870.9 g (28 oz)
Multiple on screen displays : Yes
True-RMS AC bandwidth : 100 kHz
dBV/dBm : Yes
DC mV resolution : 1 μV
Megohm range : Up to 500 MΩ
Conductance : 50.00 nS
Continuity beeper : Yes
Battery/fuse access : Yes/Yes
Elapse time clock : Yes
Time of day clock : Yes
Min-max-avg : Yes
Peak : 250 μs
Duty cycle : 0.01% to 99.99%
Pulse width : 0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
Hold : Yes
Isolated optical interface : Yes
Auto/touch hold : Yes
Reading memory : Yes
Log to PC : Yes
Interval/event logging : Yes
Logging memory : Up to 10,000 readings
Wireless connectivity (optional) : Yes

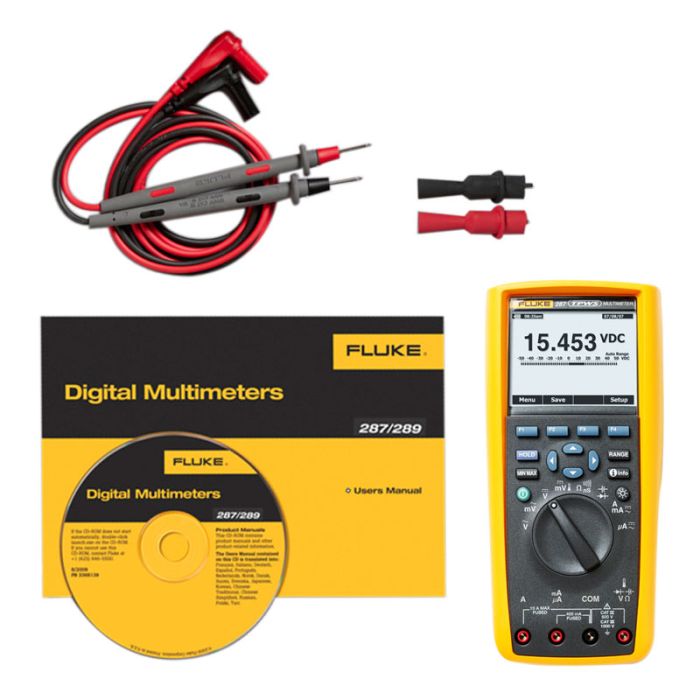

Included : Fluke 287 True-RMS Electronics Logging Multimeter, TL71 Test Leads, AC175 Alligator Clips, Batteries – 6 AA Installed
===========================================================
