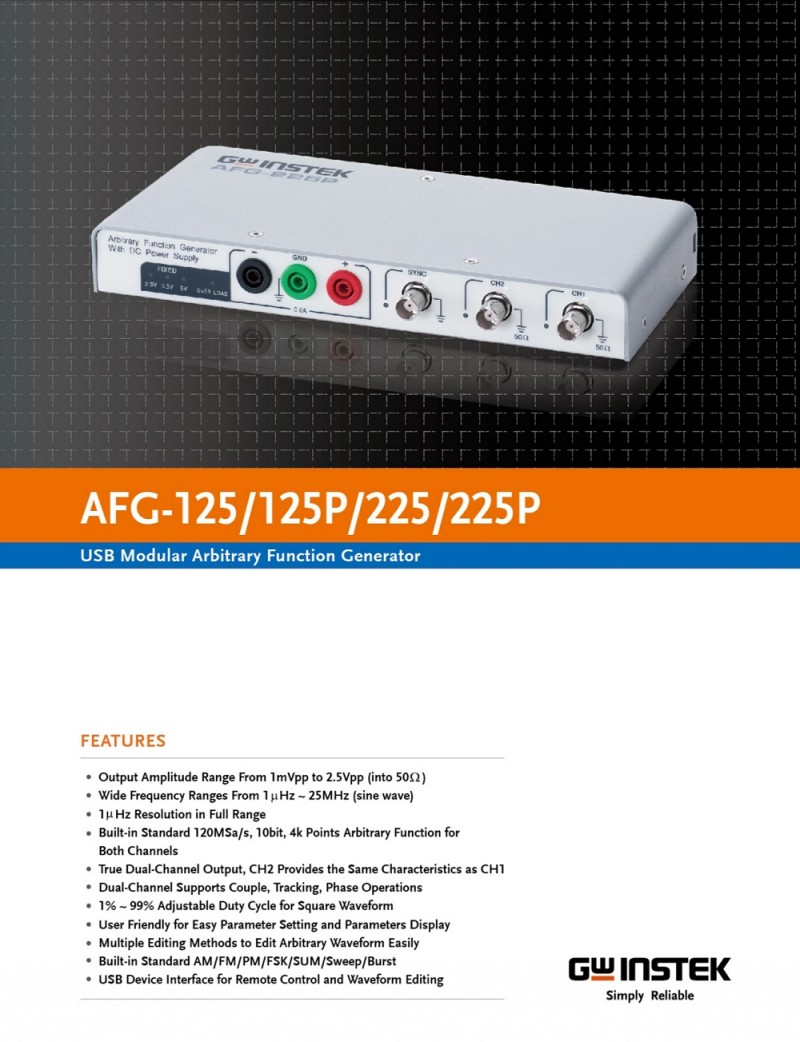

GW Instek AFG-125 25MHz Dual Channel USB Modular Arbitrary Function Generator
============================================================
Features
· Frequency range: 1uHz - 25MHz
· 1uHz frequency resolution
· Built-in 120 MSa/s, 10 bit resolution and arbitrary waveform editing function with 4k point memory
· Dual channel models support coupling, tracking, and phase functions
· Square waveform can adjust the duty cycle from 1% to 99%.
· Support various arbitrary waveform editing methods.
· Sweep and burst functions
· USB interface signal control
============================================================
Specifications
Output Channels Waveforms : 1 (Sine, Square, Ramp, Pulse, Noise, ARB)
Arbitrary Functions :
*Sample Rate : 120 Msa/s
*Repetition Rate : 60MHz
*Waveform Length : 4k points
Frequency Characteristics :
*Range : 1µHz – 25MHz (Sine/Square)
*Ramp : 1µHz – 1MHz
*Resolution : 1µHz
Waveform Output :
*Impedance : 50Ω typical (fixed), > 10MΩ (output disabled)
*Protection : Short-circuit protected. Overload relay automatically disables main output
Save/Recall : 10 Groups of Setting Memories
Interface : USB (Device)
Power Source : DC 5V
Power Consumption : 10W (Max)
Operating Environment : Temperature to satisfy the specification 18 - 28°C, Operating temperature 0 - 40°C, Relative Humidity < 80% 0 - 40°C, Installation category CAT II
Dimensions & Weight : 215 (W) x 35 (H) x 107 (D) mm, Approx. 1kg
Accessories : Quick Start Guide x 1, CD-ROM with AFG software and user manual x 1, GTL-101 BNC-Alligator Test Lead x 1 (only AFG-125/125P)
===========================================================
