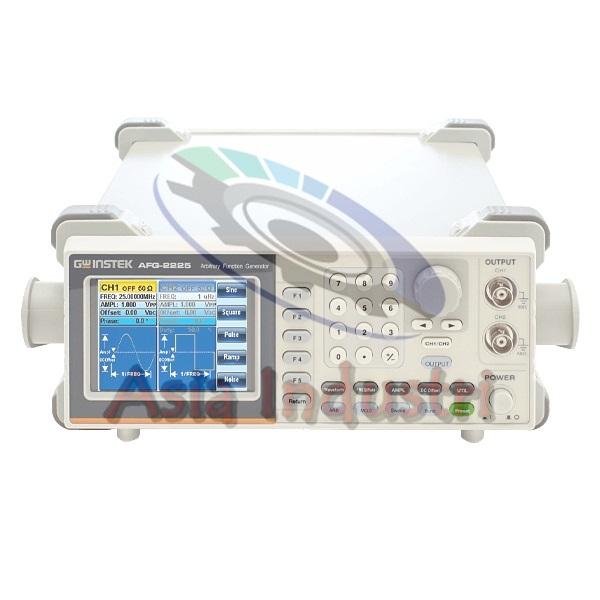

GW Instek AFG-2225 25MHz True Dual Channel Arbitrary Function Generator

============================================================

Features

·         Wide Frequency Ranges From 1μHz to 25MHz (sine/square wave)

·         1 μHz Resolution in Full Range

·         Built-in Standard 120MSa/s, 10bit, 4k Points Arbitrary Waveform for Both Channels

·         True Dual-Channel Output, CH2 Provides the Same Characteristics as CH1

·         Couple, Tracking, Phase Operations of Dual Channel are Supported

·         1% ~ 99% Adjustable Duty Cycle for Square Waveform

·         High Resolution and Colored TFT LCD with Friendly User Interface

·         Multiple Editing methods to Edit Arbitrary Waveform Easily

·         Built-in Standard AM/FM/PM/FSK/SUM/Sweep/Burst and Frequency Counter

============================================================

Specifications

WAVEFORMS : Sine, Square, Triangle, Ramp, Pulse, Noise

ARBITRARY FUNCTIONS

*Sample Rate : 120MSa/s

*Repetition Rate : 60MHz

FREQUENCY CHARACTERISTICS

*Range : 1µHz – 25MHz

*Resolution : 1µHz

SQUARE WAVE CHARACTERISTICS

*Rise/Fall Time : ≤ 25ns at maximum output (into 50 load)

*Overshoot : 5%

RAMP CHARACTERISTICS

*Linearity : < 0.1% of peak output

*Variable Symmetry : 0% - 100%(0.1% Resolution)

PULSE CHARACTERISTICS

*Period : 40ns – 2000s

*Pulse Width : 20ns – 1999.9s

FREQUENCY COUNTER

*Range : 5Hz – 150MHz

*Accuracy : Time base accuracy ± 1 count

DISPLAY : 3.5” TFT LCD

INTERFACE : USB (Host & Device)

POWER SOURCE : AC 100 – 240V, 50 – 60Hz, Max. 25W

DIMENSIONS & WEIGHT : 266 (W) x 107 (H) x 293 (D) mm, Approx. 2.5kg

ACCESSORIES : User Manual CD x 1, Quick Start Manual x 1, GTL-101 Test Lead x 2, Power Cord x 1

===========================================================
