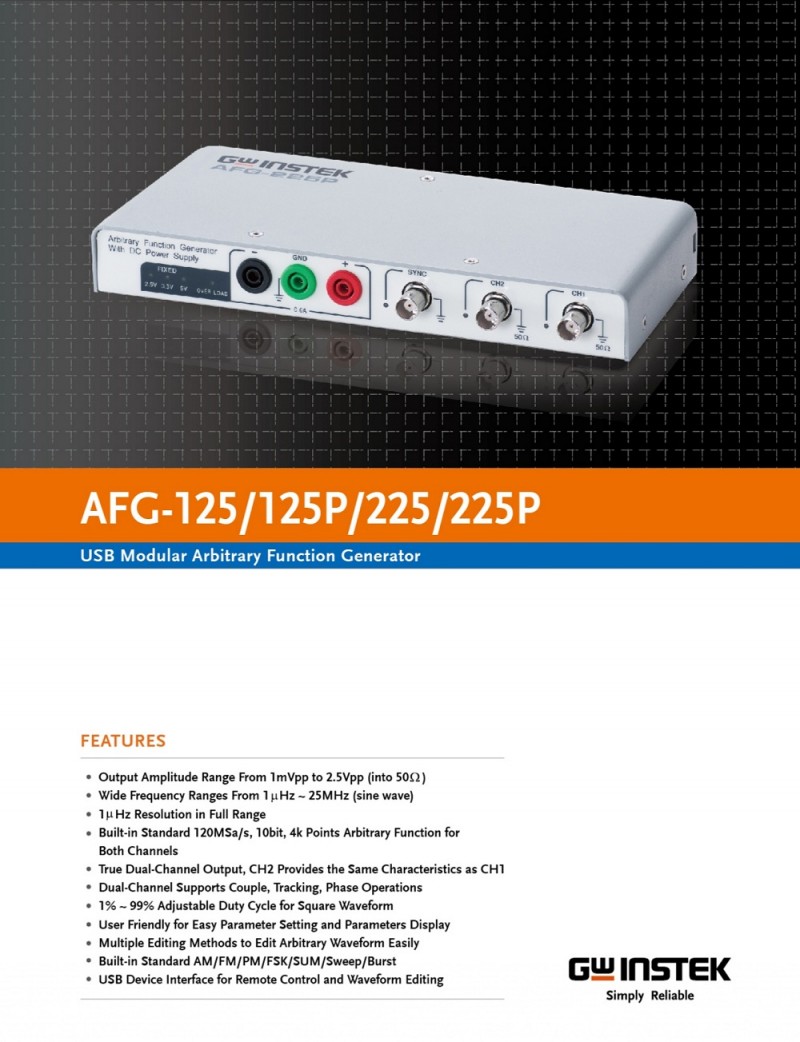

GW Instek AFG-225P 25MHz Dual Channel USB Modular Arbitrary Function Generator

============================================================

Features

·         Frequency range: 1uHz - 25MHz

·         1uHz frequency resolution

·         Built-in 120 MSa/s, 10 bit resolution and arbitrary waveform editing function with 4k point memory

·         Dual channel models support coupling, tracking, and phase functions

·         Square waveform can adjust the duty cycle from 1% to 99%.

·         Support various arbitrary waveform editing methods.

·         Built-in AM/FM/PM/FSK/SUM(AFG-225/225P) modulation, sweep and burst functions

·         USB interface signal control

·         AFG-125P/225P provide three DC power selections

============================================================

Specifications

Output Channels Waveforms : 2 (Sine, Square, Ramp, Pulse, Noise, ARB)

Arbitrary Functions :

*Sample Rate : 120 Msa/s

*Repetition Rate : 60MHz

*Waveform Length : 4k points

Frequency Characteristics :

*Range : 1µHz – 25MHz (Sine/Square)

*Ramp : 1µHz – 1MHz

*Resolution : 1µHz

Waveform Output :

*Impedance : 50Ω typical (fixed), > 10MΩ (output disabled)

*Protection : Short-circuit protected. Overload relay automatically disables main output

Save/Recall : 10 Groups of Setting Memories

Power Output : Output Voltage : (2.5V/3.3V/5V) ±5%, Output Current : 0.6A

Interface : USB (Device)

Power Source : DC 5V

Power Consumption : 10W (Max)

Operating Environment : Temperature to satisfy the specification 18 - 28°C, Operating temperature 0 - 40°C, Relative Humidity < 80% 0 - 40°C, Installation category CAT II

Dimensions & Weight : 215 (W) x 35 (H) x 107 (D) mm, Approx. 1kg

Accessories : Quick Start Guide x 1, CD-ROM with AFG software and user manual x 1, GTL-101 BNC-Alligator Test Lead x 2 (only AFG-225/225P)

===========================================================
