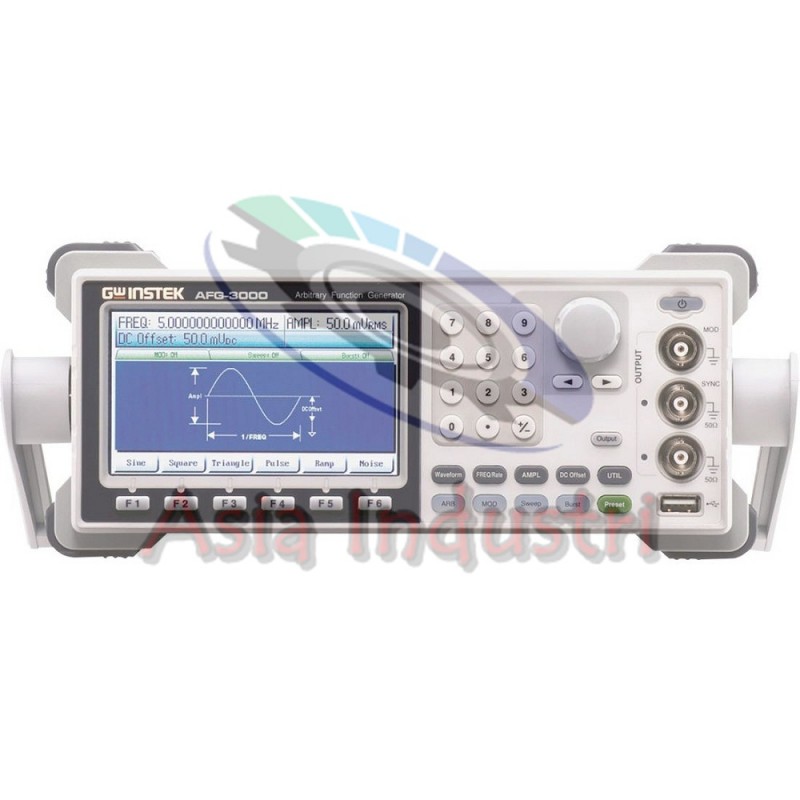

GW Instek AFG-3022 20MHz Dual Channel Arbitrary Function Generator
============================================================
Features
· 1uHz to 20 or 30MHz, 16-bit resolution with 1 mVpp to 10 Vpp amplitude. 1 or 2 channel (s)
· 250 MSa/s sampling rate for higher time resolution arbitrary waveforms
· 8M Points/channel standard waveform memory
· Input/output signal ground independent of housing and signal ground between channels also insulated.
· Synchronized phase operates up to 6 units and 12 channels
· Pulse waveform parameters can be set independently for more precise timing
· Harmonic signal generator
· Dual channel models support SUM modulation, coupling, tracking, and phase functions
============================================================
Specifications
CHANNELS : 2
ARBITRARY WAVEFORMS
*Sample Rate : 250 MSa/s
*Repetition Rate : 125MHz
*Waveform Length : 8M points
FREQUENCY CHARACTERISTICS
*Sine/Square : 1µHz – 20MHz
*Pulse : 1µHz – 20MHz
NOISE
*Noise Type : Gaussian
*Noise Bandwidth : 100MHz equivalent bandwidth
HARMONIC
*Harmonic Order : ≤8
*Harmonic Type : Even, Odd, All, User; Amplitude and Phase can be set for all harmonics
DISPLAY : 4.3 inch TFT LCD, 480 x 3 (RGB) x 272
INTERFACE : LAN, USB
AC POWER INPUT : AC 100V - 240V, 50/60Hz, 50VA
DIMENSION & WEIGHT : 265 (W) x 107 (H) x 374 (D); Approx. 4kg
ACCESSORIES : Quick Start Guide x 1, CD-ROM with AFG software and user manual x 1, GTL-101, BNC Alligator Test Lead x 2 (only AFG-3032/AFG-3022)
===========================================================
