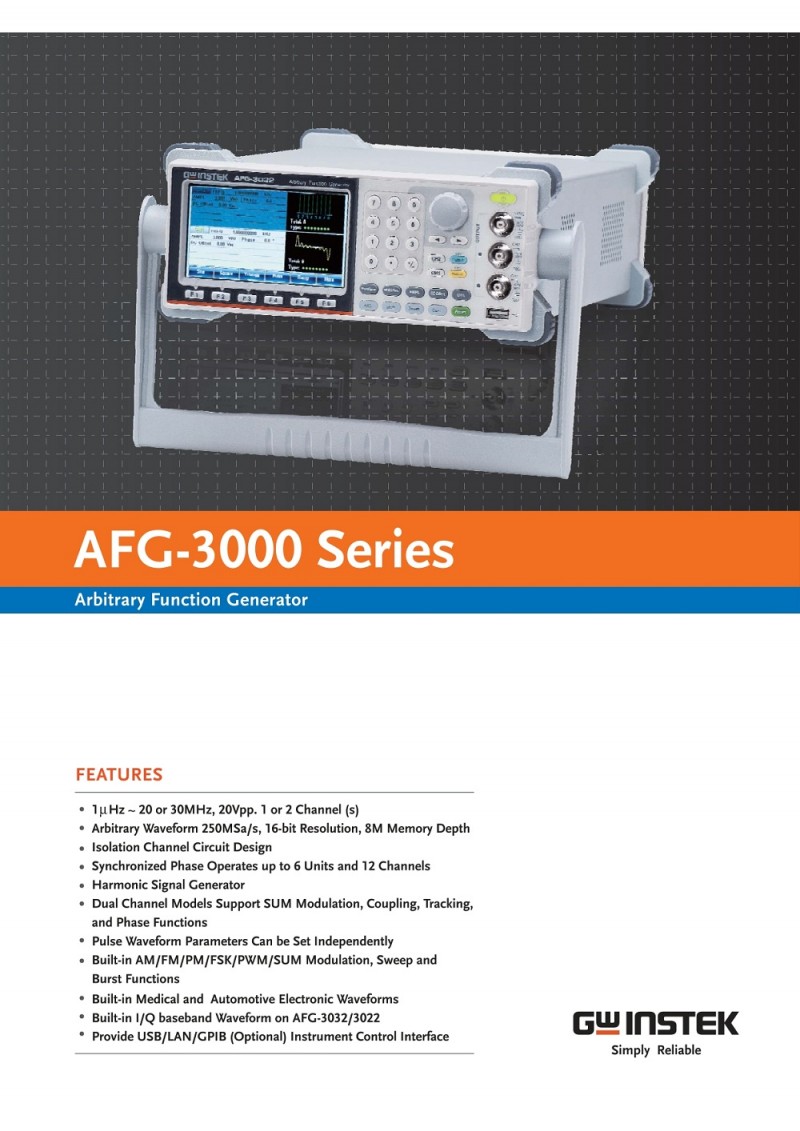

youtu.be/LD6IiCwmX54GW Instek AFG-3031 30MHz Single Channel Arbitrary Function Generator
============================================================
Features
· 1uHz to 20 or 30MHz, 16-bit resolution with 1 mVpp to 10 Vpp amplitude. 1 or 2 channel (s)
· 250 MSa/s sampling rate for higher time resolution arbitrary waveforms
· 8M Points/channel standard waveform memory
· Input/output signal ground independent of housing and signal ground between channels also insulated.
· Synchronized phase operates up to 6 units and 12 channels
· Pulse waveform parameters can be set independently for more precise timing
· Harmonic signal generator
· Dual channel models support SUM modulation, coupling, tracking, and phase functions
· Built-in AM/FM/PM/FSK/PWM/SUM modulation, sweep and burst functions
· Provide USB/LAN/GPIB (optional) instrument control interface
============================================================
Specifications
Frequency :
- Sine/Square : 1µHz – 30MHz
- Pulse : 1µHz – 25MHz
- Triangle/Ramp : 1µHz – 1MHz
- Resolution : 1µHz
Sample Rate : 250 Msa/s
Repetition Rate : 125MHz
Waveform Length : 8M points
Amplitude Resolution : 16 bits
Non-Volatile Memory : Ten 8M wafeforms
User define Output Section : Any section from 2 – 8M points
Trigger : Infinite/Manual/External
Display : 4.3 inch TFT LCD, 480 x 3 (RCB) x 272
Interface : LAN, USB
Power Source : AC 100 – 240V, 50 – 60Hz
Power Consumption : 50VA
Operating Temperature : 0°C to 40°C
Dimensions (WxHxD) : 265 x 107 x 374 mm
Weight : Approx. 4 kg
Accessories : GTL-101, BNC-Alligator Test Lead x 1 (only AFG-3031/AFG-3021), Quick Start Guide x 1, CD-ROM with AFG software and user manual x 1
===========================================================
