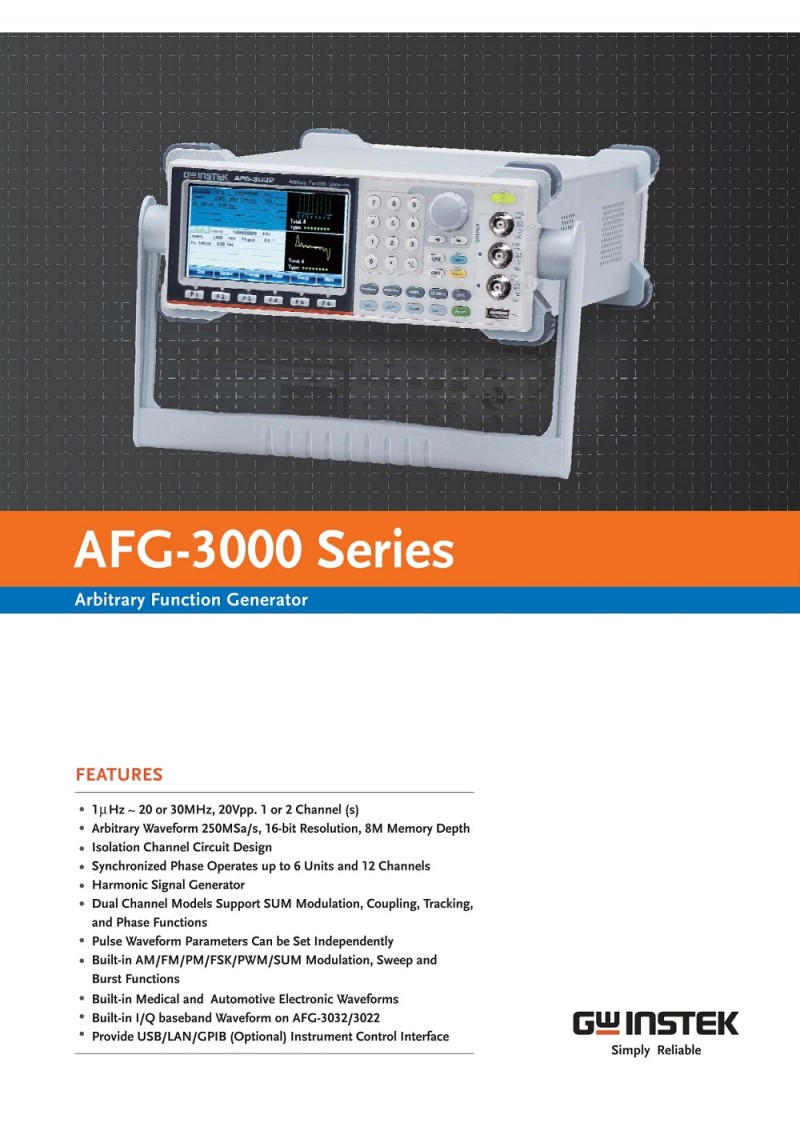

GW Instek AFG-3032 30MHz, 2 Channels Arbitrary Function Generator
============================================================
Features
· 1uHz to 20 or 30MHz, 16-bit resolution with 1 mVpp to 10 Vpp amplitude. 1 or 2 channel (s)
· 250 MSa/s sampling rate for higher time resolution arbitrary waveforms
· 8M Points/channel standard waveform memory
· Input/output signal ground independent of housing and signal ground between channels also insulated.
· Synchronized phase operates up to 6 units and 12 channels
· Pulse waveform parameters can be set independently for more precise timing
· Harmonic signal generator
· Dual channel models support SUM modulation, coupling, tracking, and phase functions
· Built-in AM/FM/PM/FSK/PWM/SUM modulation, sweep and burst functions
· Provide USB/LAN/GPIB (optional) instrument control interface
· IQ baseband waveform output function for AFG-3032/3022
============================================================
Specifications
Channels : 2
Frequency Range : DC to 30 MHz
Sample Rate : 250 MSa/s
Repetition Rate : 125MHz
Waveform Length : 8M points
Amplitude Resolution : 16 bits
Waveforms :
- Frequency Sweep: Sine, Square, Triangle, Ramp
- Amplitude Sweep: Sine, Square, Triangle, Ramp, Pulse, Noise, ARB
Power Source : AC 100 to 240V, 50 to 60Hz
Storage Temperature : -10 to 70°C, Humidity: ≤70%
Dimensions (WxHxD) : Bench Top : 265 (W) x 107 (H) x 374 (D)
Weight : Approx. 4kg
Accessories : GTL-101, BNC-Alligator Test Lead x 2, Quick Start Guide x 1, CD-ROM with AFG software and user manual x 1
===========================================================
