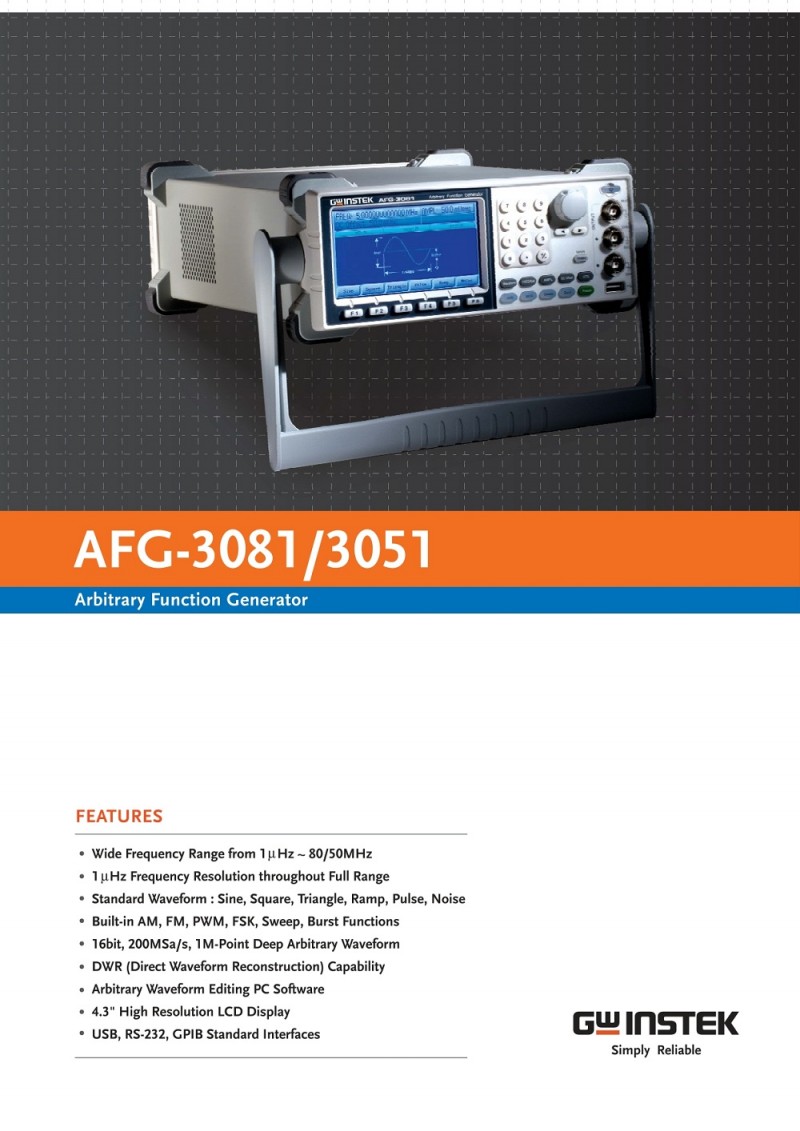

GW Instek AFG-3081 80MHz Arbitrary Function Generator

============================================================

Features

·         Wide frequency range from 1uHz to 80/50MHz

·         High 200MSa/s sampling rate

·         16-bit Amplitude Resolution

·         Output from any section of 1M-point-long waveform

·         4.3" high-resolution LCD display/on-screen help/Impedance switch

·         Four ways to generate arbitrary waveform: Front Panel Operation

·         CSV file uploading, Direct Waveform Reconstruction (DWR), Arbitrary

·         Waveform Editing PC Software

·         USB, RS-232, GPIB interface support

============================================================

Specifications

Arbitrary Waveforms :

- Sample Rate : 200 MSa/s

- Repetition Rate : 100MHz

- Waveform Length : 1M points

- Amplitude Resolution : 16 bits

Frequency Range : 80MHz

Resolution : 1µHz

Sync Output : 50Ω nominal

Operating Temperature : 0°C to 40°C

Power Source : AC100 – 240V, 50 – 60Hz

Power Consumption : 65VA

Dimensions (WxHxD) : 265 x 107 x 374

Weight : Approx. 4kg

Accessories : GTL-110 × 1, Instruction Manual × 1, Power cord × 1

===========================================================
