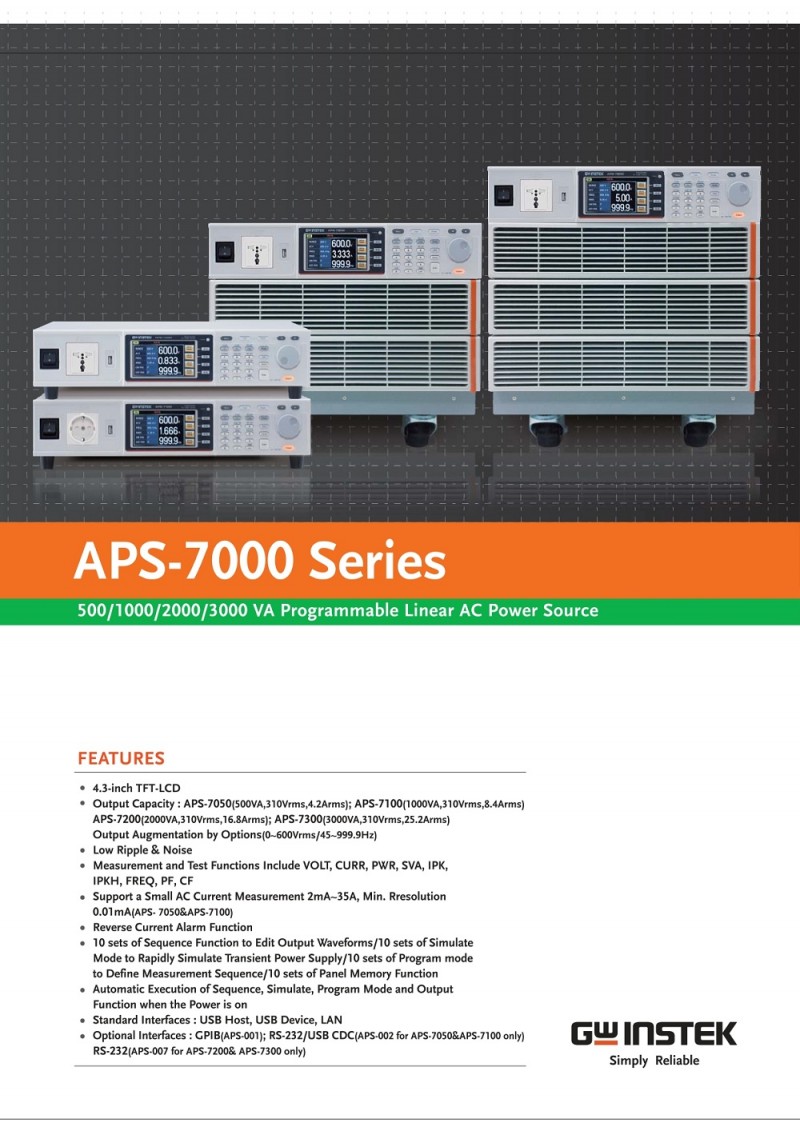

GW Instek APS-7050 500VA Programmable Linear AC Power Sources

============================================================

Features

·         4.3-inch TFT-LCD

·         Output capacity : APS-7050(500VA, 310Vrms,  4.2Arms)

·         Low Ripple & Noise

·         Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF

·         Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA(APS- 7050& APS-7100)

·         Reverse Current Alarm Function

·         10 sets of Sequence function to Edit Output Waveforms/ 10 sets of simulate mode to Rapidly Simulate Transient Power Supply/ 10 sets of Program mode to Define Measurement Sequence/ 10 sets of Panel Memory Function

·         Automatic Execution of Sequence, Simulate, Program mode and Output Function when the Power is on

============================================================

Specifications

Power Rating : 500VA

Output Voltage : 0 – 155V RMS, 0 – 310V RMS

Output Frequency : 45.00 – 500.0Hz

Resolution : 0.01Hz at 45.00 – 99.99Hz; 0.1Hz at 100.0 – 500.0Hz

Accuracy : ±0.02% of setting

Remote Output Signal : Pass, Fail, Test-in-Process, Trigger in, Trigger out, OUT ON/OFF

Sync Output Signal : Output Signal 10V, BNC type

Number of Preset : 10 (0 – 9 numeric keys)

Protection : OCP, OPP, OTP and Alarm

Interface : USB Host, LAN

Operating Temperature : 0°C to 40°C

AC Input :

- Phase : Single Phase

- Input Voltage : 115/230V AC ±15%

- Input Frequency : 50/60Hz

- Max. Current : 16A/8A

- Power Factor : 0.7 typ.

- Power Consumption : 1.8kVA or less

Dimensions (WxHxD) : 430 x 88 x 400

Weight : 24kg

Accessories : CD ROM(User Manual, Programming Manual for APS-7000) x 1, Power Cord(Region Dependent), GTL-123 Test Lead

===========================================================
