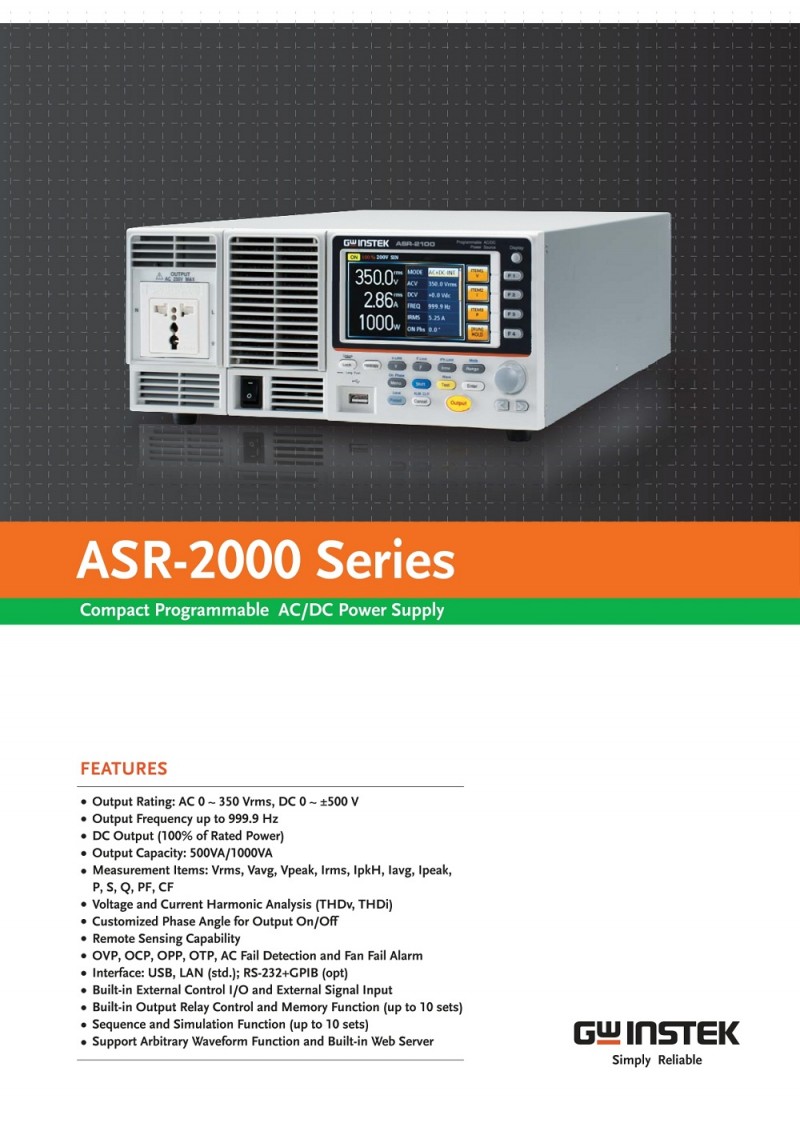

GW Instek ASR-2100 Programmable AC/DC Power Source
============================================================
Features
· Output Rating: AC 0 – 350 V RMS, DC 0 - ± 500 V
· Output Frequency up to 999.9 Hz
· DC Output (100% of Rated Power)
· Measurement Items: V RMS, V AVG, V peak, I RMS, I PKH, I AVG, I peak, P, S, Q, PF, CF
· Voltage and Current Harmonic Analysis(THDv, THDi)
· Remote Sensing Capability
· OVP, OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm.
· Support Arbitrary Waveform Function
· Output Capacity: 500VA/ 1000VA
· Customized Phase Angle for Output On/Off
· Sequence and Simulation Function(up to 10 sets)
· Interface: USB, LAN(std.); RS-232+GPIB(opt.)
· Built-in External Control I/O and External Signal Input
· Built-in Output Relay Control
· Memory Function (up to 10 sets)
· Built-in Web Server
============================================================
Specifications
Input Ratings (AC RMS)
Nominal Input Voltage : 100V AC to 240V AC
Input Voltage Range : 90V AC to 264V AC
Phase : Single phase, Two-wire
Input Frequency Range : 47Hz to 63Hz
Max. Power Consumption : 1500VA or less
Power factor*1 :
- 100VAC : 0.95 (typ.)
- 200VAC : 0.90 (typ.)
Max. Input Current :
- 100VAC : 15A
- 200VAC : 7.5A
*1. For an output voltage of 100V/200V (100V/200V range), maximum current, and a load power factor of 1.
Output Rating for DC Mode
Voltage
- Setting Range*1 : -250V to +250V/-500V to +500V
- Setting Resolution : 0.1V
- Accuracy*2 : ±(|0.5 % of set| +0.6V/1.2V)
Maximum current*3 :
- 100V : 10A
- 200V : 5A
Maximum Peak Current*4 :
- 100V : 40A
- 200V : 20A
Power Capacity : 1000 W
*1. 100V/200V range
*2. For an output voltage of -250V to -25V, +25V to +250V/-500V to -50V, +50V to +500V, no load, AC volatge setting 0V (AC+DC mode) and 23°C ± 5°C
*3. For an output voltage of 1.4V to 100V/2.8V to 200V. Limited by the power capacity when the output voltage is 100V to 250V/200V to 500V.
*4. Within 5ms, Limited by the maximum current.
Operating Temperature Range : 0°C to 40°C
Dimensions : 285(W) × 124(H) × 480(D) (not including protrusions)
Weight : Approx. 11.5 kg
Accessories : CD ROM(User Manual, Programming Manual), Safety Guide, Power Cord, Mains Terminal Cover Set, Remote Sense Terminal Cover Set, GTL-123 Test Lead, GTL-246 USB Cable
===========================================================
