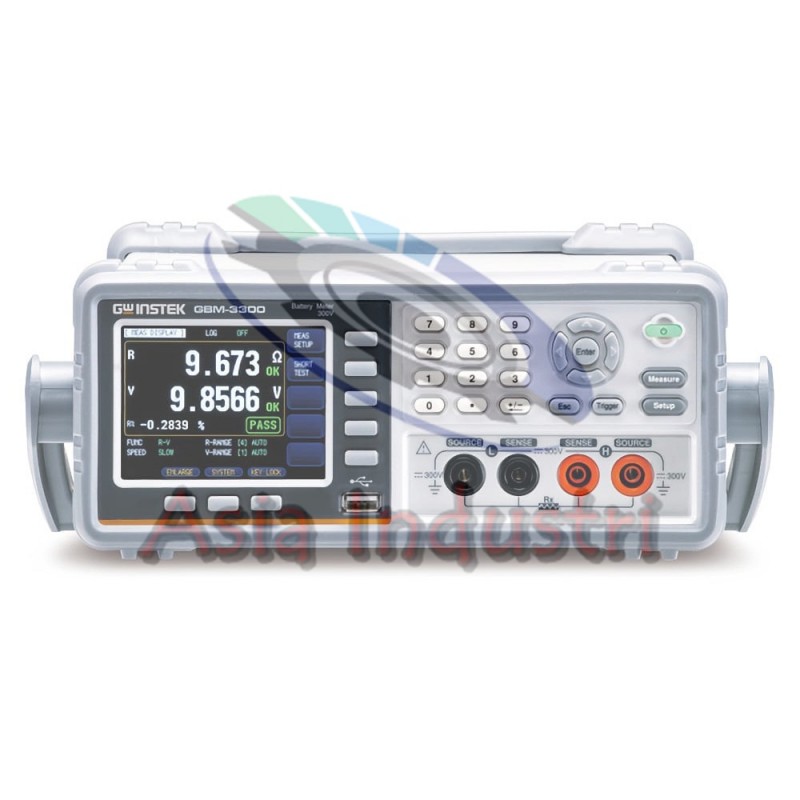

GW Instek GBM-3300 300V Battery Meter

============================================================

Features

·         3.5’ TFT LCD (320x240)

·         Measurement items: DC voltage and AC resistance

·         Voltage measurement: 300V (GBM-3300) or 80V (GBM-3080)

·         Resistance measurement: 0mΩ to 3.2kΩ(max.)

·         Basic accuracy for voltage measurement: 0.01%

·         Basic accuracy for resistance measurement: 0.5%

·         Measurement resolution up to 0.1μΩ and 10μV, suitable for single-cell measurement

·         Independent GO/NOGO determination function for voltage and resistance respectively

·         The judgment mechanism of test lead (probe) disconnect/contact failure is to ensure the measurement reliability

·         Standard interfaces: USB host/device, RS-232C and Handler

============================================================

Specifications

DISPLAY : 6 digits 3.5” (320x240) TFT LCD

TEST SPEED

-Slow : 3 time/second

-Medium : 14 time/second

-Fast : 25 time/second

RESISTANCE MEASUREMENT

-Test Frequency : 1kHz (± 0.5Hz) Fixed

-Input Impedance : 3mΩ - 300mΩ : 99kΩ, 3Ω - 3kΩ : 2MΩ

VOLTAGE MEASUREMENT

-Range : 300V

-Resolution : 1mV

-Accuracy : ± 0.01%rdg ± 3dgt

OTHER FUNCTIONS

-Range Selection : Auto range, Hold range, Nom range

-Comparator : ABS, PER or SEQ

-Contact Detection : OPEN & WIRE

-Buzzer : OFF, Pass, Fail

-Trigger : INT, EXT

INTERFACE : USB Host/USB Device/RS-232C/Handler

POWER SOURCE : AC 100-240, 50-60Hz; Consumption: 10W

DIMENSIONS & WEIGHT : 264(W) x 107(H) x 309(D) mm, Approx. 2.8kg

ACCESSORIES : Safety sheet x 1, Power cord x 1,  GBM-01 x 1 : 4 Wire(kelvin clip) test lead, 90V(max.), approx. 1100mm, CD x 1(including complete user manual and USB driver)

===========================================================
