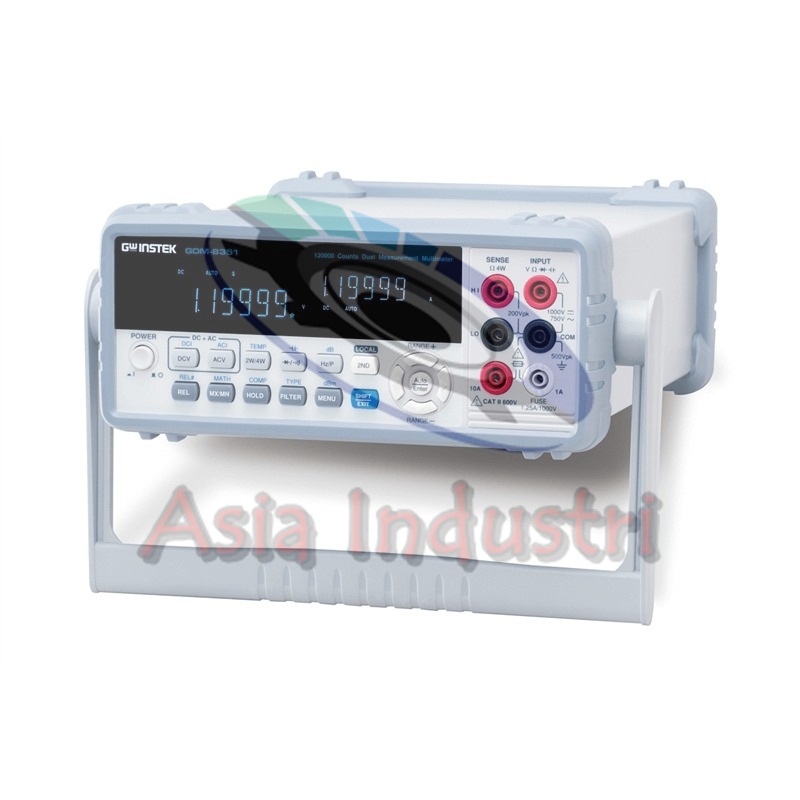

GW Instek GDM-8351 5 ½ Digit Dual Measurement Multimeter
============================================================
Features
· 120,000 counts, VFD display
· Dual measurement/Dual display
· The basic precision of DC voltage: 0.012%
· Selectable measurement speeds, the maximum: 320 Readings/s
· True RMS (AC，AC+DC) measurements
· Auto/manual selection
· 12 different measurement functions: AC/DC voltage, AC/DC current, AC+DC voltage/current, 2W/4W resistance, continuity beeper, diode test, capacitance, frequency, temperature
· Many auxiliary functions: Max./Min., REL/REL#, Compare, Hold, dB, dBm, Math (MX+B, %, 1/X)
· Digital I/O provides dual mode (standard Compare and User definition modes)
· Standard RS-232C and USB device interface (support USBCDC and USBTMC modes)
============================================================
Specifications
DC VOLTAGE
-Range : 100mV – 1000V
-Resolution : 1µV – 10mV
RESISTANCE
-Range : 100Ω - 100MΩ
-Resolution : 1mΩ - 1kΩ
DC CURRENT
-Range : 10mA – 10A
-Resolution : 100nA – 100µA
CONTINUITY
-Range : 100Ω
-Resolution : 10mΩ
DIODE TEST
-Range : 6V
-Resolution : 100µV
CAPACITANCE
-Range : 10nF - 100µF
-Resolution : 0.01nF – 0.1µF
TRUE RMS AC (or AC+DC – AC Coupled) VOLTAGE
-Range : 100mV – 750V
-Resolution : 1µV – 10mV
TRUE RMS AC (or AC+DC – AC Coupled) CURRENT
-Range : 10mA – 10A
-Resolution : 10nA – 100µA
FREQUENCY :
-Voltage : 10Hz – 1MHz
-Current : 20Hz – 10kHz
THERMOCOUPLE TEMPERATURE : -200°C - 300°C (J/T/K)
DISPLAY : VFD, Two Colors Display
INTERFACE : RS-232C, USB device (USBCDC & USBTMC)
POWER SOURCE : AC 100V/120V/220V/240V ±10%, 50-60Hz, Max. 15VA
DIMENSIONS & WEIGHT : 265(W) x 107(H) x 302(D)mm, Approx. 2.9kg
ACCESSORIES : Safety Instruction Sheet x 1, Power cord x 1, Test lead GTL-207A x 1, CD x 1 (including complete user manual, driver and software)
===========================================================
