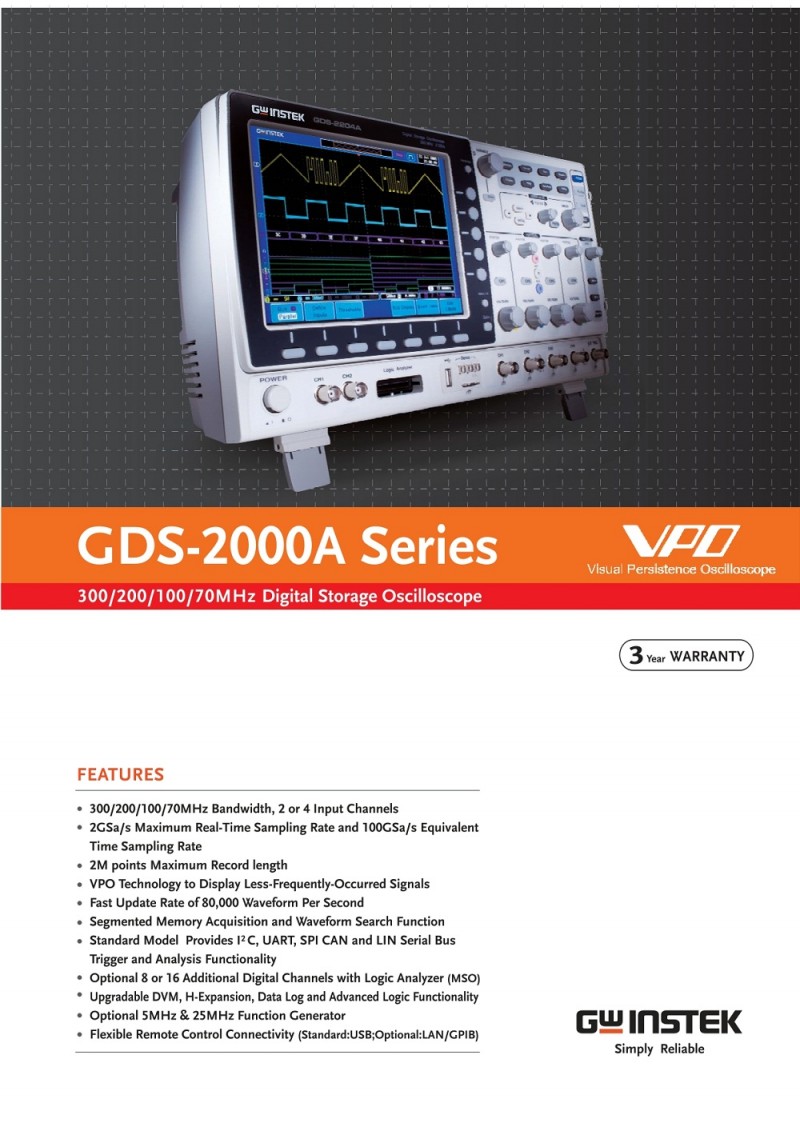

GW Instek GDS-2302A 300MHz, 2-Channel, Digital Storage Oscilloscope
============================================================
Features
· 300MHz Bandwidth,2 Input Channel
· 2GSa/s Real-time Sampling Rate and 100GSa/s Equivalent Time Sampling Rate
· 2Mega Points Record Length
· 1mV /div to 10V/div of Vertical Range
· 1ns/div to 100s/div of Time base Range
· 80,000 wfm/s of Waveform Update Rate
· 8 inch 800*600 High Resolution TFT LCD Display
· Built-in Segmented Memory and Waveform Search Functions to Optimize the Efficiency of Record Length
· Zoom Window and Play/Pause can Rapidly Navigate the Waveforms
· 36 Automatic Measurement Functions Offers Various Measurement Selections
============================================================
Specifications
Bandwidth (-3dB) : 300MHz
Channels : 2
Rise Time : 1.17ns
Banwidth Limit (-3dB) : 20M/100M/200MHz
Resolution : 8 bit : 1mV – 10V/div
Input Coupling : AC, DC, GND
Input Impedance : 1MΩ//16pF
DC Gain Accuracy : ±(3% X |Readout| + 0.1div + 1mV)
Polarity : Normal & Invert
Maximum Input Voltage : 300V RMS, CAT I
Display : 8” 800 x 600 TFT LCD WVGA color display
Interface : RS232C, USB Port, Ethernet Port, Go-NoGo BNC
Power Source : AC 100 – 240V, 50 – 60Hz, auto selection
Operating Temperature : 0°C to 50°C
Dimensions (WxHxD) : 380 x 220 x 145 mm
Weight : Approx. 4.2 kg
Accessories : User Manual CD x 1, Power Code x 1, GTP-350A-2 350MHz(10:1/1:1) Switchable passive probe for GDS-2302A/2304A(One per channel)
===========================================================
