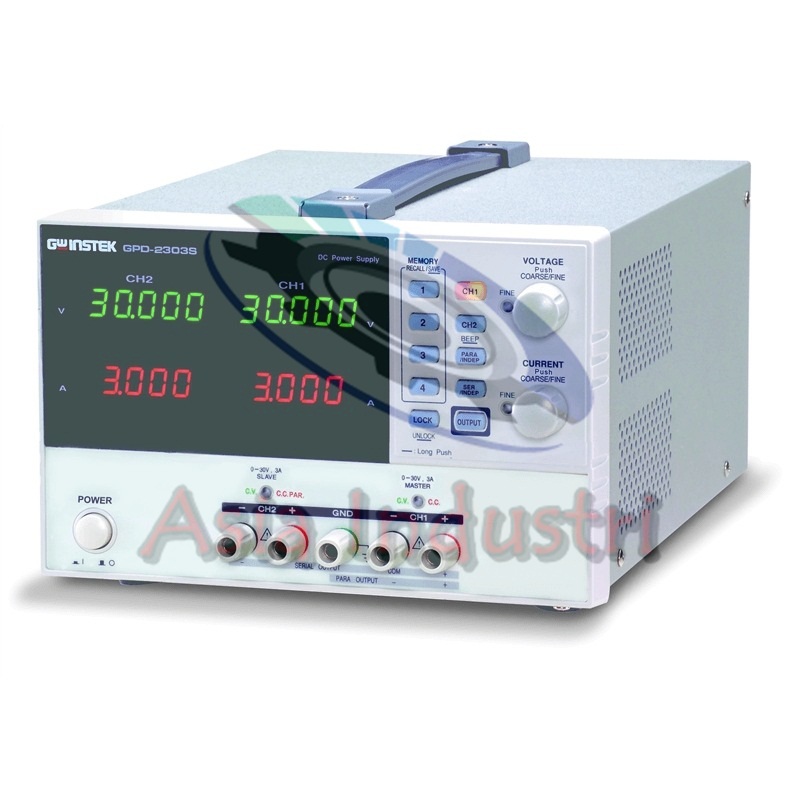

GW Instek GPD-2303S 2-Channels, 180W Programmable Linear DC Power Supply
============================================================
Features
· 2/3/4 Independent Isolated Output
· 4 LED Display Sets: 3 digits after decimal point
· Minimum Resolution :
· 1mV/1mA(GPD-2303D/GPD-3303S/GPD-4303S)
· 100mV/10mA(GPD-3303D)
· Digital panel control(rotary encoder Switch, rubber key with indicator)
· User-friendly operation, coarse/fine volume control
· 4 Sets Save/Recall
· Key-Lock
· Output on/off
· Tracking Series and Parallel mode
· Smart cooling fan achieving low noise
· USB Standard Interface
· PC Software & USB Driver
· Labview driver
============================================================
Specifications
OUTPUT
-Channel : CH2
-Voltage : 0 – 30V
-Current : 0 – 3A
ConSTANT VOLTAGE OPERATION
-Line Regulation : ≤0.01% + 3mV
-Load Regulation : ≤0.01% + 3mV (rating current ≤3A); ≤0.02% + 5mV (rating current >3A)
-Ripple & Noise : ≤1mVrms (5Hz – 1MHz)
-Recovery Time : ≤100µS (50% Load change, Minimum load 0.5A)
ConSTANT CURRENT REGULATION
-Line Regulation : ≤0.2% + 3mA
-Load Regulation : ≤0.2% + 3mA
-Ripple & Noise : ≤2mArms
METER
-Display : Voltage : 5 digits 0.4" LED Display (full scale : 32V); Current : 4 digits 0.4" LED Display (full scale : 3.2A)
-Resolution : Voltage : 1mV; Current : 1mA
KEY LOCK : Yes
MEMORY SAVE/RECALL : 4 sets
POWER SOURCE : AC 100V/120V/220V/230V ±10%, 50/60Hz; 490V max
DIMENSIONS & WEIGHT : 210(W) x 130(H) x 265(D) mm; Approx. 7kg
ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-104A x 2
===========================================================
