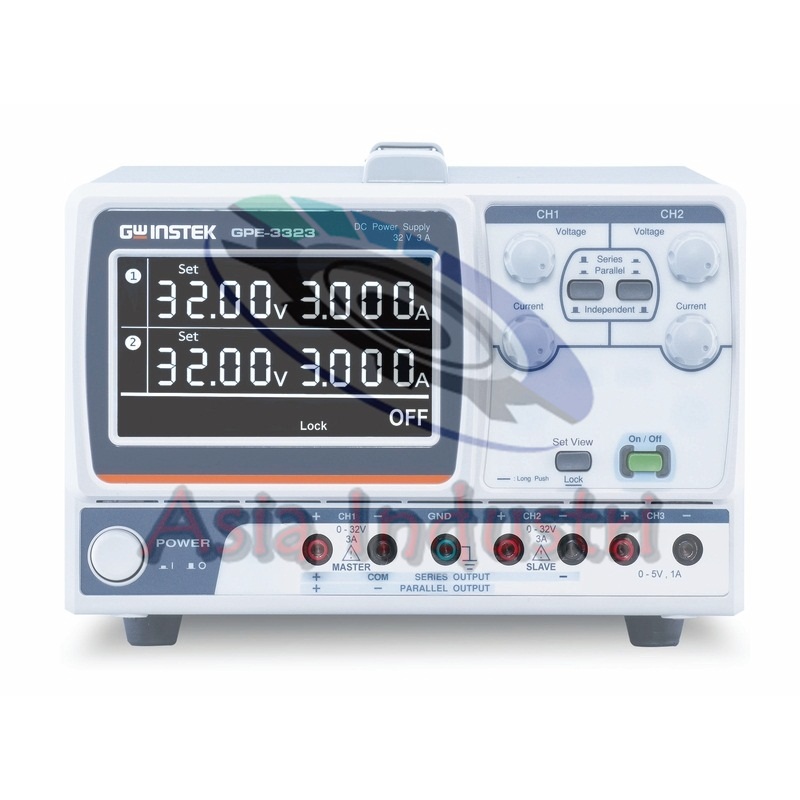

GW Instek GPE-3323 217W 3 Channel Linear DC Power Supply
============================================================
Features
· 1/2/3/4 Independent Isolated Output
· 4.3 Inch LCD Display
· Setting & Read Back Resolution 100mV/10mA (*1)
· Output On/off
· Analog Control (Remote I/O) For Output ON/OFF
· Set View Function For Checking an Original V/I Setting During Output On
· Key Lock Function
· Tracking Series And Parallel Operation
· Smart Cooling Fan Achieving Low Noise
============================================================
Specifications
OUTPUT MODE
-Number of Channel : 3CH
-Voltage : 0 – 32V (CH1 & CH2); 5V (CH3)
-Current : 0 – 3A (CH1 & CH2); 5A (CH3)
-Tracking Series Voltage : 0 – 64V
-Tracking Parallel Current : 0 – 6A
ConSTANT VOLTAGE OPERATION
-Line Regulation : ≤0.01% + 3mV
-Load Regulation : ≤0.01% + 3mV (rating current ≤3A); ≤0.02% + 5mV (rating current >3A)
-Ripple & Noise : ≤1mVrms (5Hz – 1MHz)
-Recovery Time : ≤100µS (50% Load change, Minimum load 0.5A)
ConSTANT CURRENT OPERATION
-Line Regulation : ≤0.2% + 3mA
-Load Regulation : ≤0.2% + 3mA
-Ripple & Noise : ≤3mArms
TRACKING OPERATION
-Tracking Error : ≤ 0.1%+10mV of Master(0~32V) No Load , with Load add load regulation ≤100mV)
-Parallel Regulation : Line : ≤0.01%+3mV; Load : ≤0.01%+3mV(rating current ≤3A); ≤0.02%+5mV(rating current >3A)
-Series Regulation : Line : ≤0.01%+5mV; Load : ≤100mV
-Ripple & Noise : ≤2mVrms, 5Hz – 1MHz
CH3 OPERATION
-Output Voltage : 5.0V ±5%
-Output Current : 5A
-Line Regulation : ≤3mV
-Load Regulation : ≤5mV
-Ripple & Noise : 1mVrms (5Hz – 1MHz)
METER
-Voltage Resolution : 100mV
-Current Resolution : 10mA
-Setting Accuracy : Voltage ±(0.1% of reading +30mV); Current ±(0.3% of reading +6mA)
-Readback Accuracy : Voltage ±(0.1% of reading +30mV); Current ±(0.3% of reading +6mA)
INSULATION
-Chassis and Terminal : 20MΩ or above (DC 500V)
-Chassis and AC Cord : 30MΩ or above (DC 500V)
POWER SOURCE : AC100V/120V/220V ±10%; 230V(+10%~-6%); 50/60Hz
DIMENSIONS & WEIGHT : 210(W)x 155(H) x 306(D) mm; Approx. 7kg
ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-104A x 3
===========================================================
