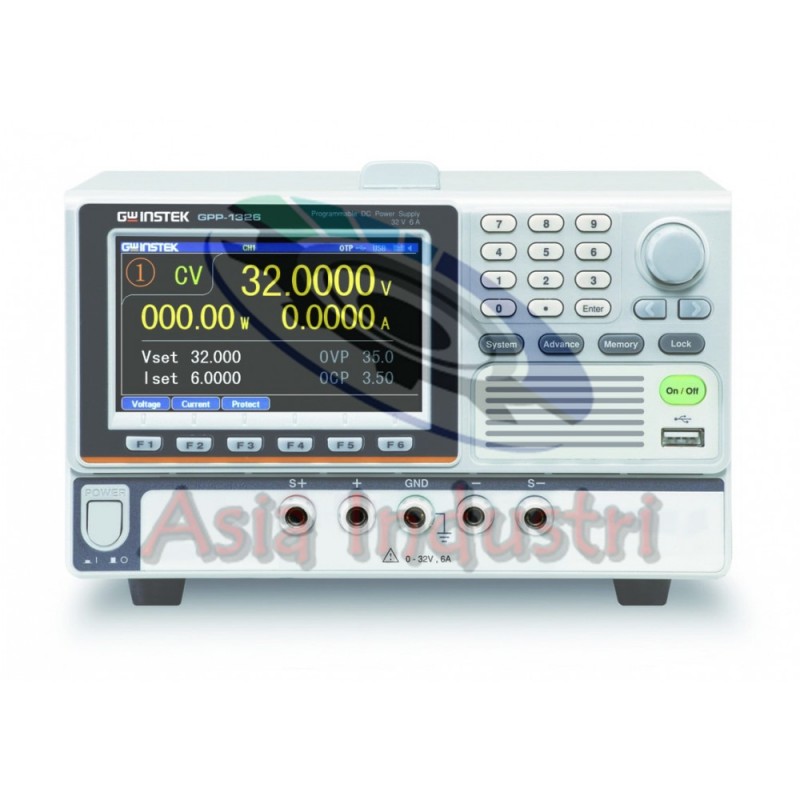

GW Instek GPP-1326 Single-Output Programmable DC Power Supply
============================================================
Features
· 4.3”TFT LCD Display
· Supports Setting Value, Measurement Value and Output Waveform Display
· Load Function (CC, CV, CR Mode)
· Setting Resolution: 1mV / 0.1mA; Read Back Resolution: 0.1mV / 0.1mA
· Low Ripple Noise: ≦350uVrms/ ≦2mArms
· Transient Response Time: ≦50uS
· Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection
· Delay Function / Output Monitoring Function / Output Recorder Function
· Intelligent Temperature Control Fan Effectively Reduces Noise
· Sequential Output Function and Built-in 8 Template Waveforms
· The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second.
· Provides 10 Sets of Memory for Each Sequence/Delay/Recorder/Panel Setting Condition
· GPP-3323 Supports A USB (Type A) Output Terminal
· Standard: RS-232, USB, Ext I/O
============================================================
Specifications
OUTPUT MODE
-Number of Channel : CH1
-Voltage : 0 – 32V
-Current : 0 – 6A
ConSTANT VOLTAGE OPERATION
-Line Regulation : ≤0.01% + 3mV
-Load Regulation : ≤0.01% + 3mV (rating current ≤3A); ≤0.02% + 5mV (rating current >3A)
-Ripple & Noise : ≤500µVrms (5Hz – 1MHz)
-Recovery Time : ≤100µS
ConSTANT CURRENT REGULATION
-Line Regulation : ≤0.2% + 3mA
-Load Regulation : ≤0.2% + 3mA
-Ripple & Noise : ≤4mArms
PROGRAMMING RESOLUTION
-Voltage : 1mV
-Current : 0.2mA
METER
-Voltage Resolution : 0.1mV
-Current Resolution : 0.2mA
INSULATION
-Chassis and Terminal : 20MΩ or above (DC 500V)
-Chassis and AC Cord : 20MΩ or above (DC 500V)
EXTERNAL ConTROL : Yes
INTERFACE : RS-232/USB (CDC)
POWER SOURCE : AC 115V/120V/220V/230V ±10%, 50/60Hz
DIMENSIONS & WEIGHT : 213(W) x 145(H) x 312(D) mm; Approx. 7.5kg
ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-104A x A, GTL-105A x 1
===========================================================
