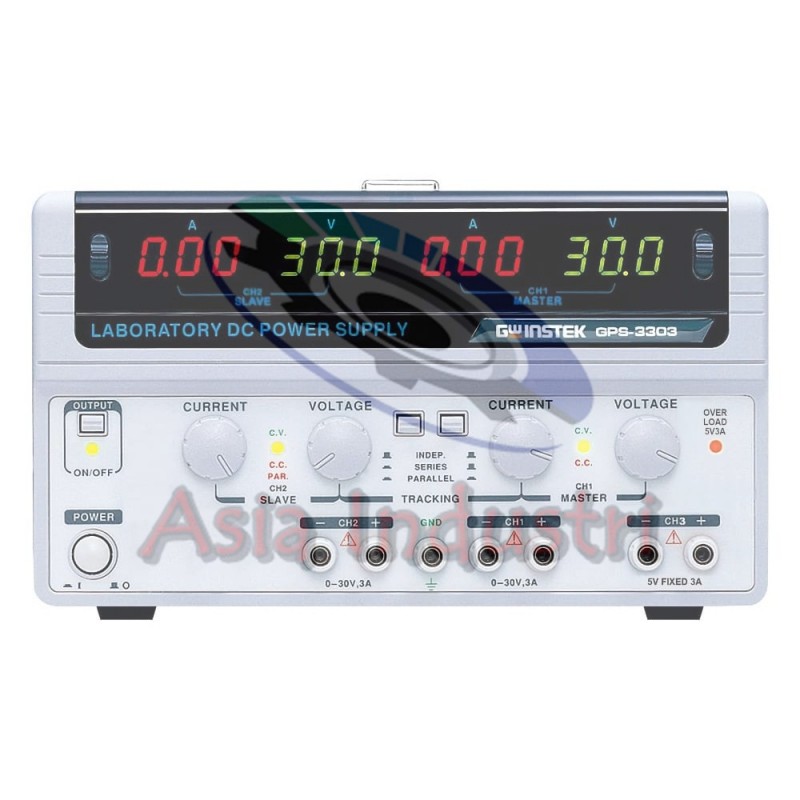

GW Instek GPS-3303 Multiple Output Linear D.C. Power Supply
============================================================
Features
· 4 Independent Isolated Output
· Four "3 Digits" LED Displays
· 0.01% Load and Line Regulation
· Low Ripple and Noise
· Tracking Operation and Auto Series/Parallel Operation
· Output ON/OFF Switch
· Output Voltage and Current Setting When Output Disable
· Fan Speed Control Circuit to Minimize Fan Noise
· Over Load and Reverse Polarity Protection
============================================================
Specifications
OUTPUT MODE
-Voltage : 0 – 30V (CH1 & CH2); 5V Fixed (CH3)
-Current : 0 – 3A (CH1 & CH2); 3A Max. (CH3)
-Tracking Series Voltage : 0 – 60V (CH1 & CH2)
-Tracking Series Current : 0 – 6A (CH1 & CH2)
ConSTANT VOLTAGE OPERATION (CH1 & CH2)
-Line Regulation : ≤0.01% + 3mV
-Load Regulation : ≤0.01% + 3mV (rating current ≤3A); ≤0.02% + 5mV (rating current ≥3A)
-Ripple & Noise : ≤1mVrms , 5Hz - 1MHz
-Recovery Time : ≤100µS (50% Load change, Minimum load 0.5A)
ConSTANT CURRENT OPERATION (CH1, CH2)
-Line Regulation : ≤0.2% + 3mA
-Load Regulation : ≤0.2% + 3mA
-Ripple & Noise : ≤3mArms
TRACKING OPERATION (CH1, CH2)
-Tracking Error : ≤0.5% + 10mV of the CH1
-Series Regulation : ≤300mV
-Load Regulation : ≤0.01% + 3mV
-Ripple & Noise : ≤2mVrms , 5Hz - 1MHz
METER
-Digital : 3 digits 0.5” LEDD dislay
-Accuracy : ±(0.5% rdg + 2 digits)
INSULATION
-Chassis and Terminal : ≥DC 500V/20MΩ
-Chassis and AC Cord : ≥DC 500V/30MΩ
POWER SOURCE : AC 100V/120V/220V(+10%)/230V(+10% - -6%), 50/60Hz
DIMENSIONS & WEIGHT : 255(W) x 145(H) x 265(D) mm, Approx. 7 kg
ACCESSORIES : User manual x 1, Power cord x 1, Test lead GTL-104A x 2,GTL-105A x 1
===========================================================
