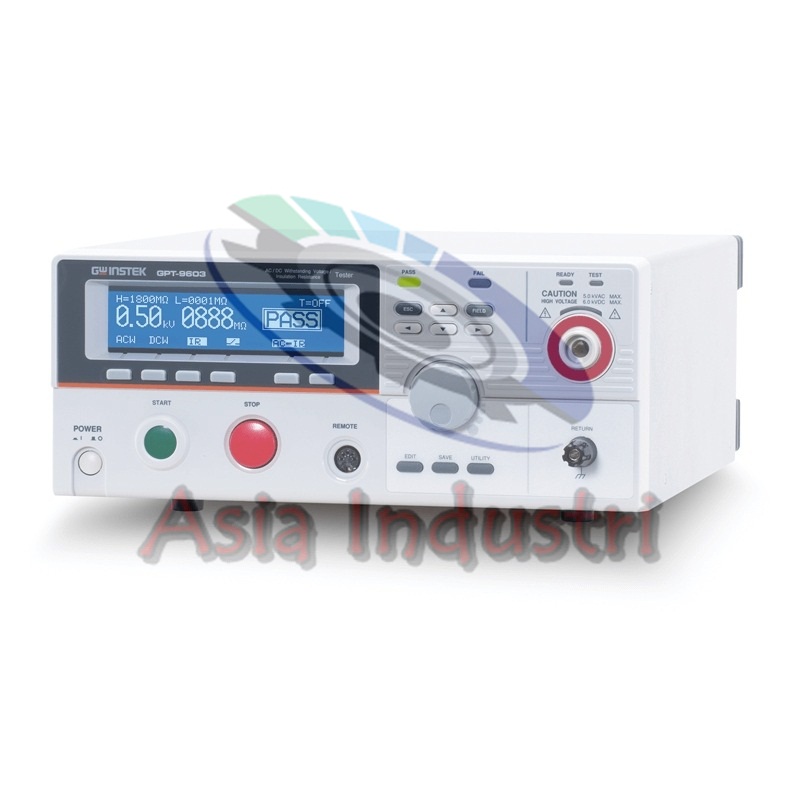

GW Instek GPT-9602 100VA AC/DC Withstanding Voltage Tester
============================================================
Features
· 100VA AC Test Capacity
· 240x48 Ice Blue Dot matrix LCD
· Auto W-I or I-W Mode
· ARC Detection
· RMS Current Measurement
· Zero Crossing Turn-on Operation
· Safety INTERLOCK function
· PWM amplifier to enhance the power efficiency and reliable testing
· Automatically Switching Input Source for Universal Input Voltage
· Interface : Remote terminal and Signal I/O
============================================================
Specifications
AC WITHSTANDING
-Output-Voltage Range : 0.10kV - 5.00kV AC
-Output-Voltage Resolution : 10V
-Output-Voltage Accuracy : ±(1.5% of setting +2 counts) with no load
-Maximum Rated Load : 100VA (5kV/20mA)
-Maximum Rated Current : 20mA (0.5kV <V ≤5kV); 5mA (0.1kV ≤V ≤0.5kV)
DC WITHSTANDING
-Output-Voltage Range : 0.10kV - 6.00kV DC
-Output-Voltage Resolution : 10V
-Output-Voltage Accuracy : ±(1.5% of setting +2 counts) with no load
-Maximum Rated Load : 25W (5kV/5mA)
-Maximum Rated Current : 6mA (0.5kV <V ≤6kV); 2mA (0.1kV ≤V ≤0.5kV)
TEST MODE
-SINGLE : ACW, DCW, IR
-AUTO : AC-IR, IR-AC, DC-IR, IR-DC
INTERFACE
-Remote Terminal (Front) : Standard
-SIGNAL I/O : Standard
DISPLAY : 240 x 48 Ice Blue dot matrix LCD
POWER SOURCE : AC100V - 120V/220V - 240V ±10%, 50/60Hz, 400VA max.
DIMENSIONS & WEIGHT : 330(W) x 148(H) x 358(D) mm, approx. 9kg(Max)
ACCESSORIES : Quick Start Guide x1, CD x1(completed user manual), Power cord x1, Interlock key x1, Remote terminal Cable GHT-119 x1, Test lead GHT-114 x1
===========================================================
