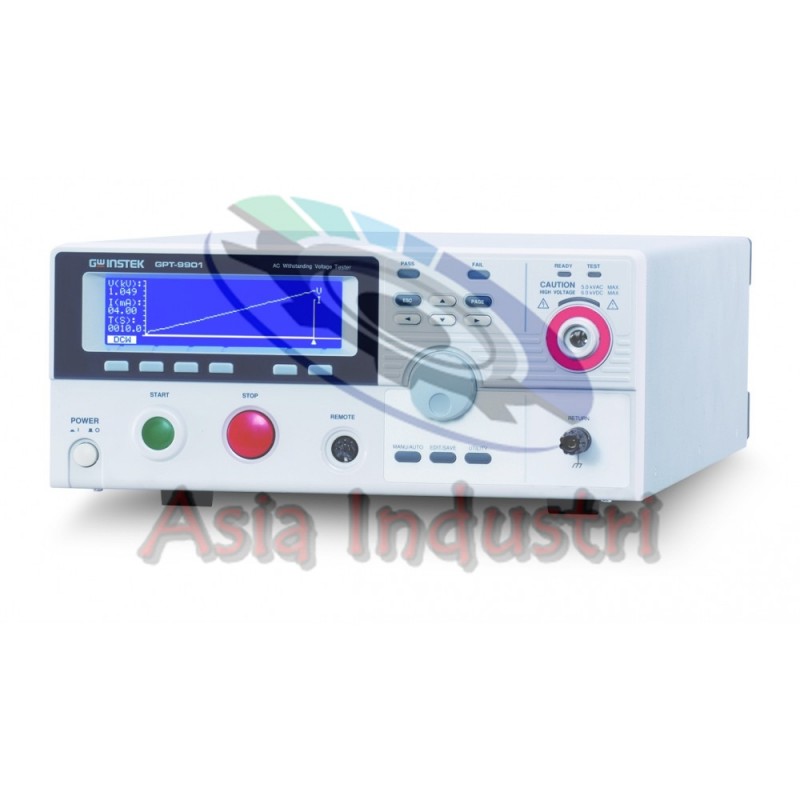

GW Instek GPT-9901A 500VA AC Withstanding Voltage Tester

============================================================

Features

·         500VA AC Test Capacity

·         Short Current > 200mA

·         240x64 Ice Blue Dot matrix LCD

·         Sweep Function for DUT characteristic analysis

·         Insulation resistance measurement up to 50GΩ(GPT-9903A/9904)

·         Manual/Auto Mode

·         Function Key for quick selection

·         High intensity flash for caution & Status indication

·         Safety INTERLOCK function

·         Zero Crossing Turn-on Operation

·         Controllable Ramp-up Time

·         RMS Current Measurement

·         High resolution: 1uA for measuring current, 2V for setting voltage

·         PWM amplifier to enhance the power efficiency and reliable testing

·         Max. 100 memory block for test condition (step) setting. And each step can be named individually.

·         Remote terminal on the front panel for “start” and “stop” control

·         Rear panel output available

·         Interface : RS-232C, USB device, Signal I/O and GPIB (optional)

============================================================

Specifications

AC WITHSTANDING

-Output-Voltage Range : 0.050kV -  5.000kV AC

-Output-Voltage Resolution : 2V/step

-Output-Voltage Accuracy : ±(1% of setting + 5V) [no load]

-Maximum Rated Load : 500VA (5kV/100mA)

-Maximum Rated Current : 100mA (0.5kV <V ≤5kV); 10mA (0.1kV ≤V ≤0.5kV)

MEMORY

-Single Step Memory : MANU : 100 blocks

-Automatic Testing Memory : AUTO : 100 blocks, menu per auto : 16

INTERFACE : Rear Output, RS232, USB (Device), Remote Terminal (Front), SIGNAL I/O

DISPLAY : 240 x 64 dot matrix LED back light LCD

POWER SOURCE : AC100V/120V/220V/230V ±10%, 50/60Hz, 1000VA max.

DIMENSIONS & WEIGHT : 330(W) x 148(H) x 482(D) mm, approx. 27kg(Max)

ACCESSORIES : Quick Start Guide x1, CD x1(completed user manual), Power cord x1, Interlock key x1, Remote terminal Cable GHT-119 x1, Test lead GHT-114 x1

===========================================================
