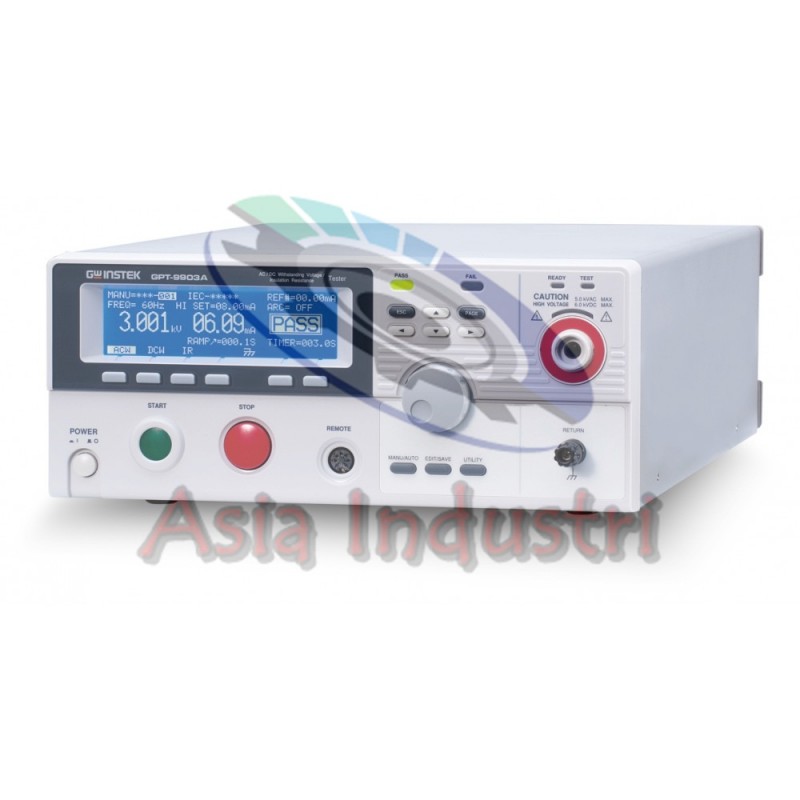

GW Instek GPT-9903A 500VA AC/DC Withstanding Voltage/Insulation Resistance Tester
============================================================
Features
· 500VA AC Test Capacity
· Short Current > 200mA
· 240x64 Ice Blue Dot matrix LCD
· Sweep Function for DUT characteristic analysis
· Insulation resistance measurement up to 50GΩ(GPT-9903A/9904)
· Manual/Auto Mode
· Function Key for quick selection
· High intensity flash for caution & Status indication
· Safety INTERLOCK function
============================================================
Specifications
AC WITHSTANDING
-Output-Voltage Range : 0.050kV - 5.000kV AC
-Output-Voltage Resolution : 2V/step
-Output-Voltage Accuracy : ±(1% of setting + 5V) [no load]
-Maximum Rated Load : 500VA (5kV/100mA)
-Maximum Rated Current : 100mA (0.5kV <V ≤5kV); 10mA (0.1kV ≤V ≤0.5kV)
DC WITHSTANDING
-Output-Voltage Range : 0.050kV - 6.000kV DC
-Output-Voltage Resolution : 2V/step
-Output-Voltage Accuracy : ±(1% of setting +5V) [no load]
-Maximum Rated Load : 100W (5kV/20mA)
-Maximum Rated Current : 20mA (0.5kV <V ≤6kV); 2mA (0.05kV ≤V ≤0.5kV)
INSULATION RESISTANCE
-Output-Voltage : 50V - 1000V DC
-Output-Voltage Resolution : 50V/step
-Output-Voltage Accuracy : ±(1% of setting +5V) [no load]
-Resistance Measurement Range : 0.001GΩ - 50.00GΩ
MEMORY
-Single Step Memory : MANU : 100 blocks
-Automatic Testing Memory : AUTO : 100 blocks, menu per auto : 16
INTERFACE : Rear Output, RS232, USB (Device), Remote Terminal (Front), SIGNAL I/O
DISPLAY : 240 x 64 dot matrix LED back light LCD
POWER SOURCE : AC100V/120V/220V/230V ±10%, 50/60Hz, 1000VA max.
DIMENSIONS & WEIGHT : 330(W) x 148(H) x 482(D) mm, approx. 27kg(Max)
ACCESSORIES : Quick Start Guide x1, CD x1(completed user manual), Power cord x1, Interlock key x1, Remote terminal Cable GHT-119 x1, Test lead GHT-114 x1
===========================================================
