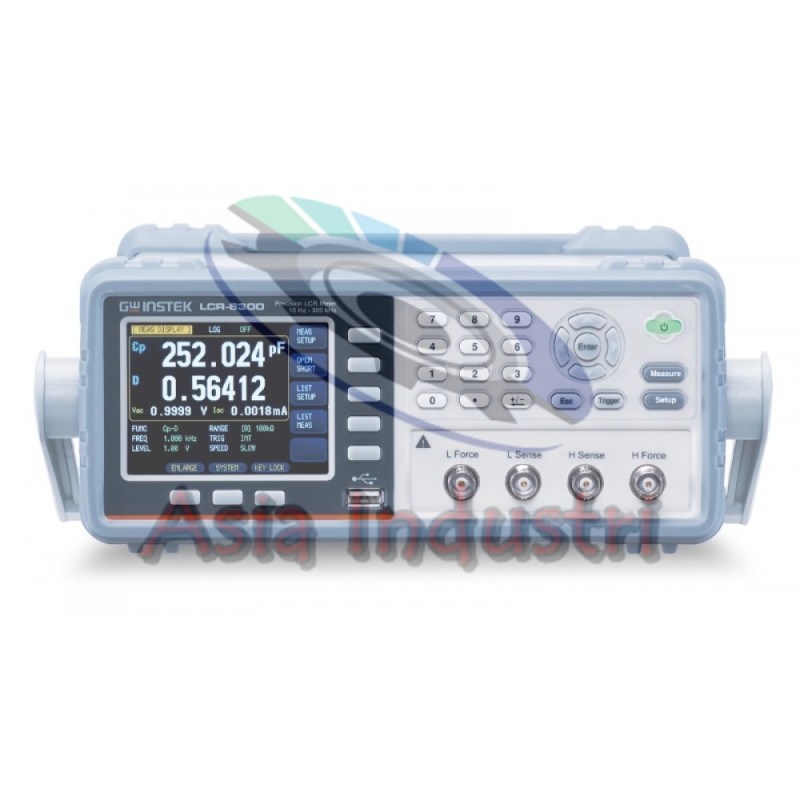

GW Instek LCR-6300 10Hz – 300kHz Precision LCR Meter

============================================================

Features

·         Consecutive test frequency

·         Basic accuracy : 0.05%

·         Measuring speed up to 25ms (max.)

·         Full frequency range or spot OPEN/SHORT

·         16 major/secondary parameter measurement combinations and two additional monitoring parameters(maximum four different parameters can be shown simultaneously)

·         DCR measurement and internal D.C. bias voltage (±2.5V)

·         PASS/FAIL judgment

·         Auto Level Control (ALC) function

·         BIN function provides 9BIN and 1AUX, totally 10 BIN

·         10 steps listed tests to select different frequency, voltage and current criteria

·         Standard interface : RS-232C, Handler and USB Host / Device

·         Compact size, ideal for automatic equipment (2U,1/2 RACK)

============================================================

Specifications

TEST FREQUENCY : 10Hz – 300kHz (±0.01%) (4 digits resolution)

OUTPUT IMPEDANCE : 30Ω/50Ω/100Ω selectable

BASIC ACCURACY

-Slow/Med : 0.05%

-Fast : 0.1%

TEST SPEED : FAST : 25ms / MED : 100ms / SLOW : 333ms

TEST SIGNAL LEVELS

-AC Voltage : 10.00mV- 2.00V (±10%) CV : 10.00mV- 2.00V (±6%)

-AC Current : 100.0µA- 20.00mA (±10%) CC : 100.0 A- 20.00mA(±6%) (@2VMax)

-DCR : +2V, 0.066A(Max.), Output impedance fixed 30Ω

DC BIAS

-Internal : ±2.5V (0.5% + 0.005V)

LISTED MODE : 10 steps

BIN FUNCTION : Comparator (9BIN, AUX : 1BIN)

MEMORY

-INT – Panel Setting : 10 file name

-INT – Measured data: 10000 Data (.csv)

-USB Storage : 10 file name of setting, 9999 file name for data, 999 Log file for LCD screen

OTHER FUNCTIONS

-Auto Level Control (ALC) : ON/OFF

-Average : 1 – 256 times

-Trigger : INT/MAN/EXT/BUS

-Delay : 0ms – 60s

-Judgement : PASS/FAIL

-Screen Capture : Saving in to USB (Bmp form)

DISPLAY : 3.5” LCD, RGB color (320 x 240)

INTERFACE : RS-232(SCPI), Handler, USB Host

POWER SOURCE : AC 100V – 240V, 50 – 60Hz, Max. 15W

DIMENSIONS & WEIGHT : 265(W) x 107(H) x 312(D) mm; Approx. 3kg

ACCESSORIES : Safety Sheet x 1, Power Cord x 1, Test Fixture LCR-06B x 1, CD x 1 (User manual/PC software)

===========================================================
