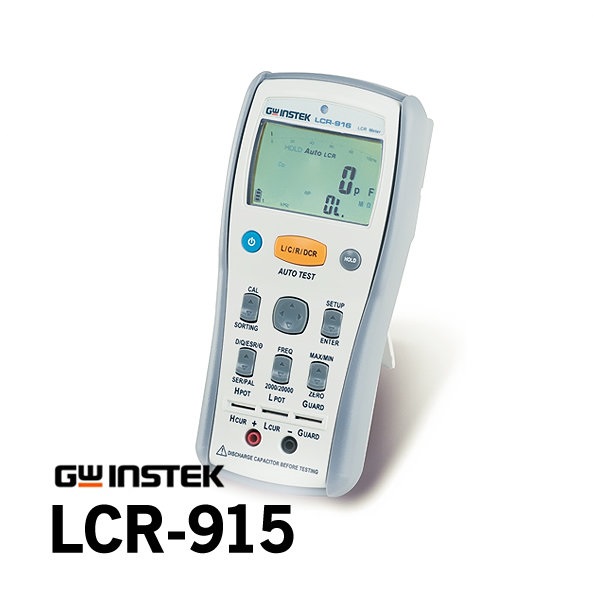

GW Instek LCR-915 10kHz Hand-held LCR Meter
============================================================
Features
· 20,000/2,000 Counts Dual Display
· Test Frequency : 100/120Hz/1/10/100kHz
· Auto LCR Mode for DUT Measurements
· 0.2% Basic Accuracy
· Measurement Parameters : L,C,R,D,Q,ESR,θ,DCR
· Parallel/Series Testing Mode
· Sorting Mode for Quality Control
· 2Wire or 5Wire Measurement Available
· Data Hold and Zero Mode Supported
· Max/Min
· Auto Range, Auto Backlit
· Low Battery Indication
· Auto Power off
· Data Collection/AC power operation
============================================================
Specifications
TEST FREQUENCY : 100Hz/120Hz/1kHz/10kHz Selectable
INDUCTANCE
-Range : 20µH – 20H
-Accuracy : +(0.2% rdg + 2 digits)
CAPACITANCE
-Range : 20pF – 20mF
-Accuracy : +(0.2% rdg + 2 digits)
RESISTANCE
-Range : 20Ω - 200MΩ
-Accuracy : +(0.2% rdg + 2 digits)
DC RESISTANCE
-Range : 200Ω - 200MΩ
-Accuracy : +(0.2% rdg + 2 digits)
QUALITY FACTOR (Q)
-Range : 0.000 – 999
-Accuracy : 2 x (main parameter accuracy)
DISSIPATION FACTOR (D)
-Range : 0.000 – 999
-Accuracy : 2 x (main parameter accuracy)
PHASE ANGLE (Ø)
-Range : -90° - 90°
-Accuracy : +(0.2% rdg+ 5 digits)
MEASUREMENT CIRCUIT : Parallel or Series selectable
AUTO LCR MODE : Automatically identifies and measures the DUT when the meter is switch on
SORTING MODE : +0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable
OTHER FUNCTIONS : Auto range, Auto backlit, Max, Min, Data hold, Zero, Auto power off, 46 segments analogue bar
DISPLAY : LCD mono display
INTERFACE : USB
POWER SOURCE : AA Battery 1.5V x 4 or DC 5V(through AC adapter or USB cable)
DIMENSIONS & WEIGHT : 95(W) × 207(H) × 52(D) mm, Approx. 630g
ACCESSORIES : User manual x1, Battery x1, Shorting Cube, Alligator Clip Set, Magnetic Hang Kit
===========================================================
