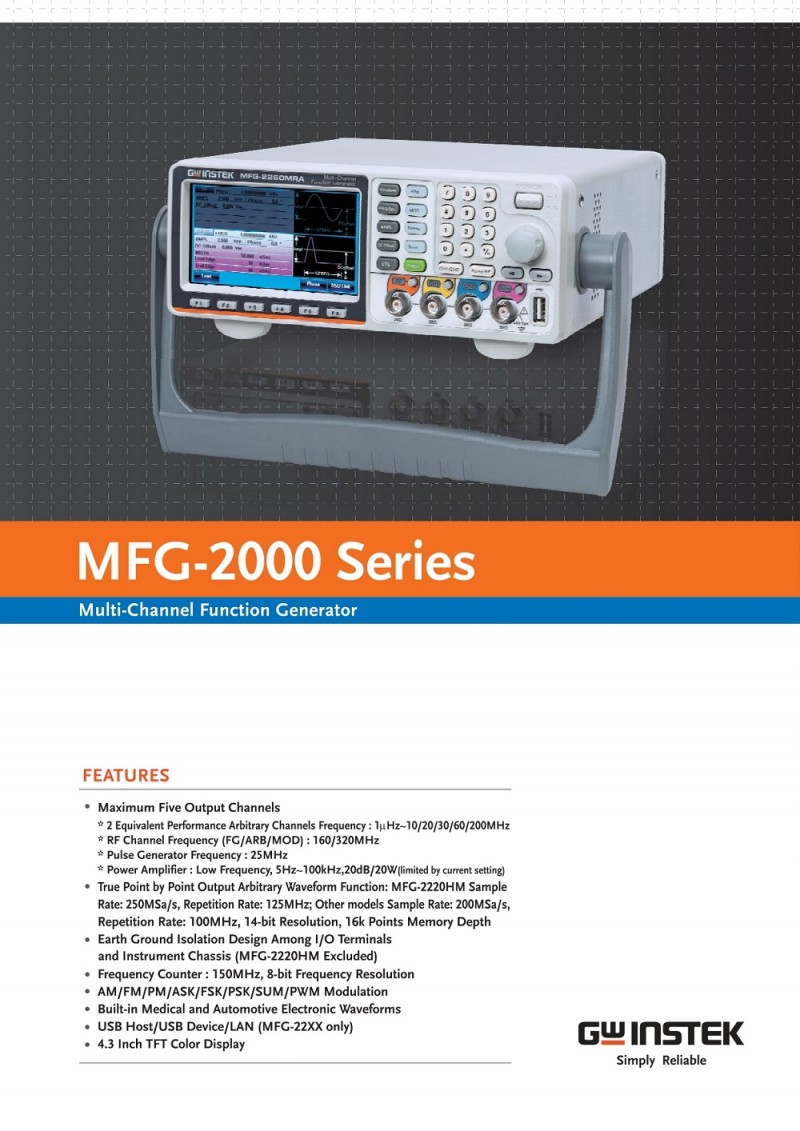

GW Instek MFG-2120MA 20MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation, Power Amplifier
============================================================
Features
· Maximum Five Output Channels
· 2 Equivalent Performance Arbitrary Channels Frequency : 1μHz~10/20/30/60/200MHz
· RF Channel Frequency (FG/ARB/MOD) : 160/320MHz
· Pulse Generator Frequency : 25MHz
· Power Amplifier : Low Frequency, 100kHz, Output 20W
· True Point by Point Output Arbitrary Waveform Function: MFG-2220HM Sample Rate: 250MSa/s, Repetition Rate: 125MHz; Other models Sample Rate: 200MSa/s, Repetition Rate: 100MHz, 14-bit Resolution, 16k Points Memory Depth
· Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis (MFG-2220HM Excluded)
· Frequency Counter : 150MHz, 8 bits Frequency Resolution
· AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation
============================================================
Specifications
WAVEFORMS : Sine, Square, Ramp, Pulse, Noise
ARBITRARY WAVEFORMS
*ARB Function : Built in
*Sample Rate : 200 MSa/s
*Repetition Rate : 100MHz
*Waveform Length : 16k points
*Amplitude Resolution : 14 bits
FREQUENCY CHARACTERISTICS
*Range : 20MHz
*Resolution : 1µHz
PULSE CHARACTERISTICS
*Frequency : 1µHz – 25MHz
*Pulse Width : ≥20nS
POWER AMPLIFIER
*Input Impedance : 10KΩ
*Input Voltage : 1.25Vpmax
DISPLAY : 4.3 inch TFT LCD; 480 x 3(RGB) x 272
INTERFACE : USB
POWER SOURCE : AC 100 – 240V, 50 – 60Hz
DIMENSIONS & WEIGHT : 266 (W) x 107 (H) x 293 (D)mm, Approx. 2.5kg
ACCESSORIES : Quick Start Guide x 1, CD-ROM with MFG Software and User Manual x 1, GTL-101 GTL-101 BNC-Alligator test lead x 1
===========================================================
