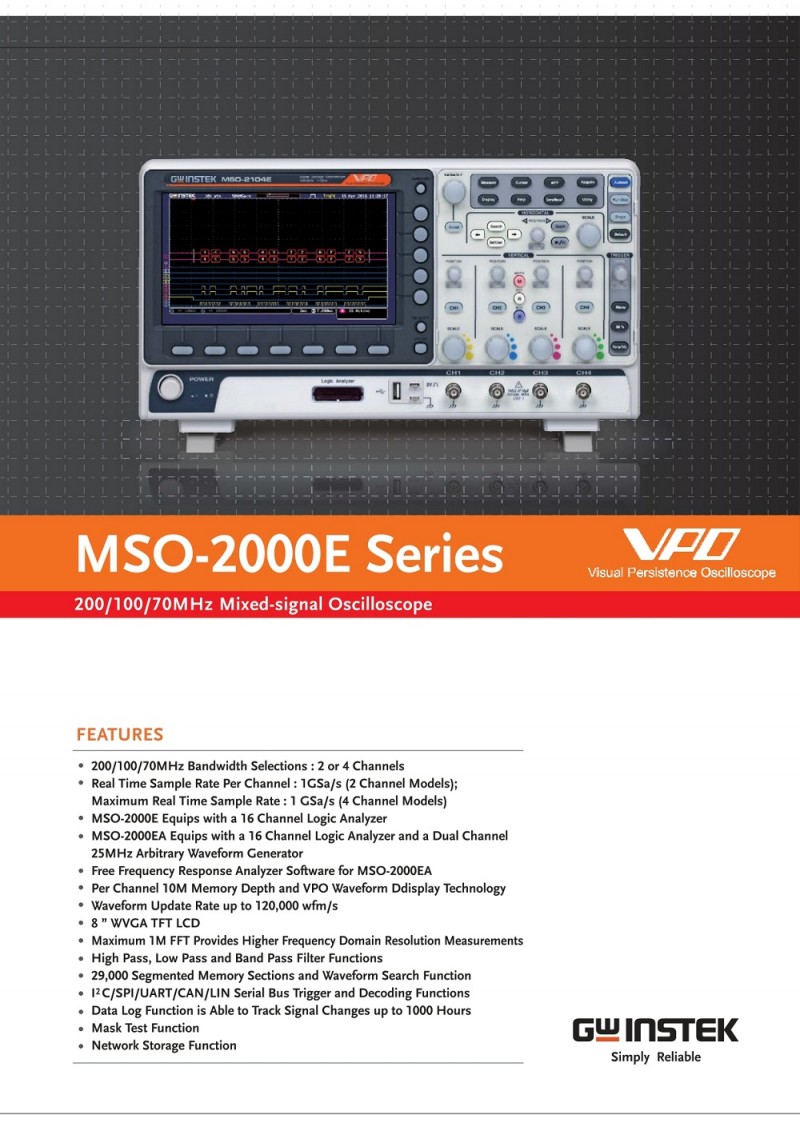

GW Instek MSO-2102E 100MHz, 2 + 16 Channel, Mixed-Signal Oscilloscope
============================================================
Features
· 100MHz bandwidth selections: 2 channels
· MSO-2000E equips with a 16-channel logic analyzer
· Real time Sampling rate for each channel is 1GSa/s (2-channel models)
· Maximum 10M memory depth and VPO waveform display technology
· Waveform update rate up to 120,000 wfms/s
· 8 ” WVGA TFT LCD screen display
· Free Frequency Response Analyzer Software
· Maximum 1M FFT provides higher frequency domain resolution measurements
· High Pass, Low Pass and Band Pass Filter Functions
· 29,000 segmented memory sections and waveform search function
· I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
· Data log function is able to track signal changes up to 100 hours
· Network storage function
============================================================
Specifications
Bandwidth (-3dB) : DC-100MHz
Channels : 2ch+Ext
Calculated Rise Time : 3.5ns
Bandwidth Limit (-3dB) : 20MHz
Vertical Sensitivity :
- Resolution : 8 bit; 1mV – 10V/div
- Input Coupling : AC, DC, GND
- Input Impedance : 1MΩ//16pF approx.
Trigger : CH1, CH2, EXT
Trigger Mode : Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence
Logic Analyser Specifications
Sample Rate : Per Channel 1GSa/s
Bandwidth : 200MHz
Record Length : Per Channel 10M pts (max)
Input Channels : 16 Digital (D15 - D0)
Trigger Type : Edge, Pattern, Pulse Width, Serial bus (I2C, SPI, UART(RS232/422/485), CAN, LIN), Parallel Bus
Power Source : AC 100 to 240V, 50 to 60Hz, auto selection
Operating Temperature : 0°C to 50°C
Display : 8” 800 x 480 TFT LCD WVGA color display
Interface : USB Port, Ethernet Port (LAN), Go/NoGo BNC
Dimensions (WxHxD) : 384 x 208 x 127.3 mm
Weight : Approx. 2.8 kg
Accessories : User Manual (CD) x 1, AC Power Cord x 1, GTP-100B-4 100MHz(10:1/1:1)Switchable passive probe for MSO-2102E(A)/2104E(A)(one per channel)
===========================================================
