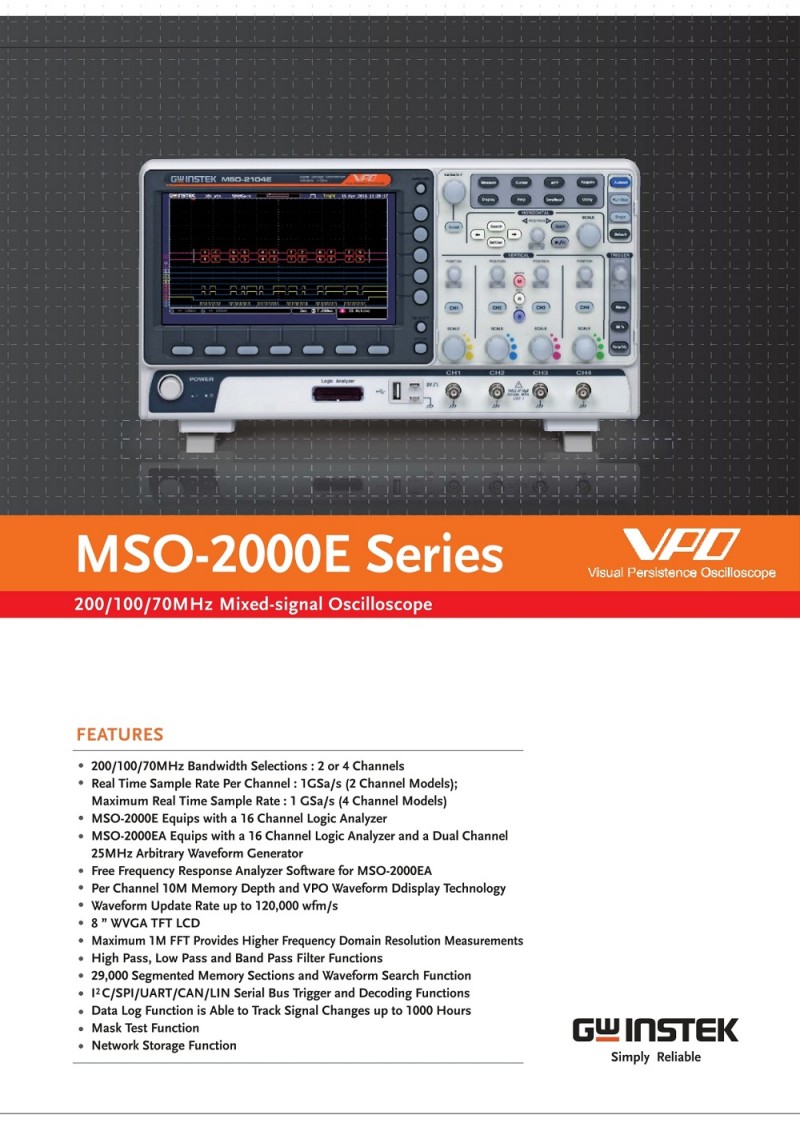

GW Instek MSO-2102EA 100MHz, 2 + 16 Channel, Mixed-Signal Oscilloscope

============================================================

Features

·         100MHz bandwidth: 2 channels

·         MSO-2000E equips with a 16-channel logic analyzer

·         MSO-2000EA equips with a 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator

·         Real time Sampling rate for each channel is 1GSa/s (2-channel models);Maximum real time Sampling rate is 1 GSa/s (4- channel models)

·         Maximum 10M memory depth and VPO waveform display technology

·         Waveform update rate up to 120,000 wfms/s

·         8 ” WVGA TFT LCD screen display

·         Free Frequency Response Analyzer Software

·         Maximum 1M FFT provides higher frequency domain resolution measurements

·         High Pass, Low Pass and Band Pass Filter Functions

·         29,000 segmented memory sections and waveform search function

·         I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions

·         Data log function is able to track signal changes up to 100 hours

·         Network storage function

============================================================

Specifications

Bandwidth : 100MHz

Channels : 2

Reecord Length : 10M/ch

Real-Time Sampling Rate : Per channel 1Gsa/s

Built-in : 16 Channel Logic Analyzer and Dual Channel 25MHz Arbitrary Waveform Generator

Logic Analyzer Specifications

Sample Rate : Per Channel 1GSa/s

Bandwidth : 200MHz

Record Length : Per Channel 10M pts (max)

Input Channel : 16 Digital (D15 – D0)

Display : 8” 800 x 480 TFT LCD WVGA color display

Interface : USB Port, Ethernet Port (LAN), Go/NoGo BNC

Power Source : AC 100 – 240V, 50 – 60Hz, auto selection

Operating Temperature : 0°C to 50°C

Dimensions (WxHxD) : 384 x 208 x 127.3 mm

Weight : Approx. 2.8 kg

Accessories : User Manual CD x 1, Power Code x 1, GTL-16E 16-Channel Logic Analyzer Probe, GTP-100B-4 100MHz(10:1/1:1)Switchable passive probe for MSO-2102E(A)/2104E(A)(one per channel)

===========================================================
