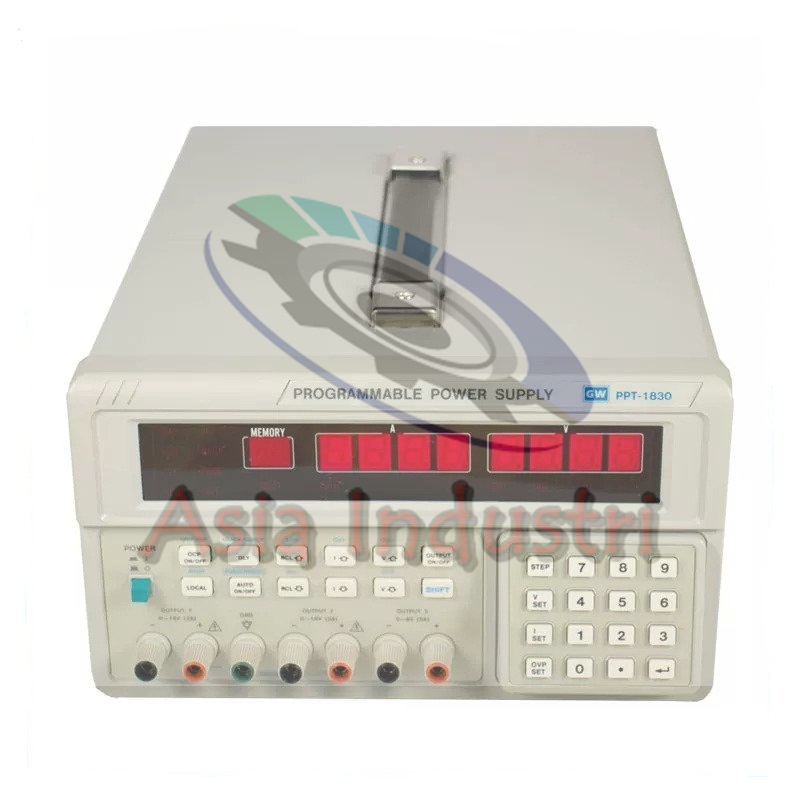

GW Instek PPT-1830 138W Triple Output Programmable D.C. Power Supply
============================================================
Features
· Easy operation with UP/DOWN key
· High Resolution: 10mV, 1mA
· Over voltage protection, over current protection by hardware
· 50 Sets memory
· Self test and software calibration
· Meets UL CSA IEC Safety Regulation
· Auto Step Running With Timer Setting
· FRONT/REAR Output and Sense Switch Selectable
· Triple Output
· Auto Series and Parallel Operation
· Auto Tracking
· IEEE-488.2 and SCPI Compatible Command set
· Labview Driver Software Available
· High Stability, Low Drift
· 4 Digit Display
============================================================
Specifications
OUTPUT
-Voltage : 0 – 18V x 2, 0 – 6V x 1
-Current : 0 – 3A x 2, 0 – 5A x 1
-OVP : 0 – 20V x 2, 0 – 7V x 1
LOAD REGULATION
-Voltage : ≤3mV rear output (≤6mV front output)
-Current : ≤ 3mA (≤6mA rating current > 3.5A)
LINE REGULATION
-Voltage : ≤3mV
-Current : ≤3mA
RESOLUTION
-Voltage : 10mV (20mV rating voltage > 36V)
-Current : 1mA (2mA rating current >3.5A)
-OVP : 10mV (20mV rating voltage > 36V)
PROGRAM ACCURACY
-Voltage : ≤0.05% + 25mV (+50mV rating voltage > 36V)
-Current : ≤0.2% + 10mA
-OVP : ≤2% + 0.6V
RIPPLE & NOISE
-Voltage : Ripple 1mVrms/3mVp-p; Noise 2mVrms / 30mVp-p
-Current : ≤3mA rms (5mA rms rating current > 3.5A)
RESPonSE TIME
-VOLTAGE UP 10% - 90% : ≤100mS
-VOLTAGE DOWN 90% - 10% : ≤100mS (≥rating load)
MEMORY : 50 sets
INTERFACE : RS-323
POWER SOURCE : AC 100V/120V/ 220V/240V ±10%, 50/60Hz
DIMENSIONS & WEIGHT : 255(W) x 145(H) x 346(D) mm; Approx. 10kg
ACCESSORIES : User manual x 1, Power cord x 1, Test Lead GTL-104 x 3
===========================================================
