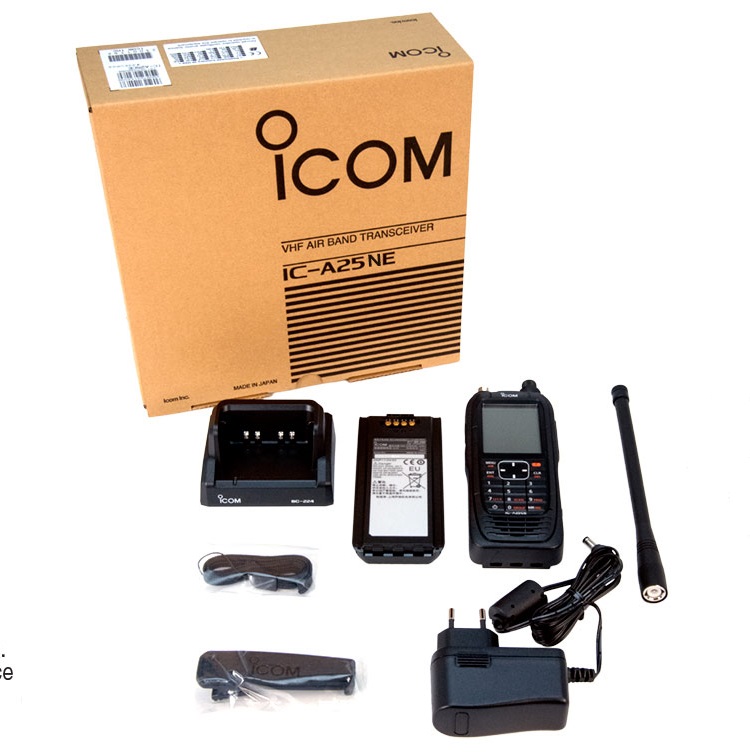

ICOM IC-25NE Aviation VHF Air Band Handheld Transceivers

============================================================

Features

·         6 Watts High RF Output Power

·         Easy-to-Use Interface

·         2.3 inch Large High Visibility LCD

·         "Flip-Flop" Channel Recall

·         Built-in Bluetooth® for Hands-Free Operation

·         Intelligent Battery with Detailed Battery Status

·         VOR Navigation Functions

·         Near Station Search Function

·         Built-in GPS Receiver with Simplified Waypoint NAV

·         Flight Plans with Android™ /iOS™ App

·         IP57 dust-protection and waterproof construction

·         Operate with six AA size alkaline batteries with the BP-289 battery case

·         BNC antenna

·         121.5 MHz emergency key

·         Weather channels

·         Priority watch

·         VFO scan, memory channel scan, priority scan

·         ANL (Auto Noise Limiter) for noise reduction

·         Side tone function

·         Internal VOX capability

·         300 memory channels (in 15 memory groups) with 12 character names

·         8.33 kHz channel spacing

============================================================

Specifications

GENERAL

NAV and COM :                NAV and COM channels

Frequency range :

- TX : 118.000–136.992 MHz

- RX : 108.000–136.992 MHz

Number of Memory Channels : 300 channels/15 groups

Channel Spacing : 25/8.33 kHz

Type of Emission : 6K80A3E, 5K00A3E

Power Supply Requirement : 7.2 V DC (BP-288), 11.0 V DC (External DC Jack)

Current Drain (approximately) :

- TX High : Less than 1.8 A

- RX Max. Audio/Stand-by : Less than 500 mA; 90 mA typ. (GPS, Bluetooth, Light: OFF)

Antenna Impedance : 50 Ω

Operating Temperature Range : −20°C to +55°C

Dimensions (W × H × D;) (Projections not included) : 58.9 × 148.4 × 31.8 mm

Weight (approximately) : 340 g (with BP-288)

Supplied accessories (*May differ, depending on the radio version.) : Battery pack (BP-288), Battery case (BP-289), Rapid charger (BC-224), AC adapter for BC-224* (BC-123SE/SV), Headset adapter (OPC-2379), Antenna (FA-B02AR), Belt clip (MB-133), Hand strap

TRANSMITTER

Output Power (at 7.2 V DC) : 6.0/1.8 W (PEP/carrier)

Audio Harmonic Distortion : Less than 10% (at 85% modulation)

Harmonics Spurious Emissions : Less than −36 dBm (except operationg frequency ±1 MHz)

Frequency stability : ±1 ppm

RECEIVER

Intermediate Frequencies : 46.35 MHz/450 kHz (1st/2nd)

Sensitivity :

- NAV (6 dB S/N) : Less than 0 dBμ

- COM (12 dB SINAD) : Less than 0 dBμ (with CCITT filter)

Squelch Sensitivity (at threshold) : Less than 0 dBμ

Adjacent Channel Rejection : More than 60 dB

Spurious Response : More than 70 dB

Hum and Noise : More than 40 dB (at 90% modulation)

Audio Output Power :

- External Speaker : 530 mW typical (AM 8 Ω/60% Mod at 10% distortion)

- Internal Speaker : 1200 mW typical (AM 8 Ω/60% Mod at 10% distortion)

Ext. Speaker Connector : 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω

===========================================================
