ICOM IC-A110 Avonics VHF Air Band Transceiver

============================================================

Features

·         Additional to the predominantly used 25 kHz channel spacing, an extra version complying to new regulations is available for 8.33 kHz channel spacing

·         Equipped EEPROM system provides maintenance free memory backup capability, without the use of a separate backup battery

·         Various scan functions, such as VFO and priority scans are available

·         Limited number of keys for simple manipulation, but providing advanced multi-functions

·         A total of 20 memory channels are available

·         Ideal compact size of 150(W) × 50(H) × 180(D) mm* to mount in various types of vehicles

·         36 W (pep) of powerful output

·         Excellent durability to cope with even the toughest workplace

·         Memory channel only operation possible via PC programming

·         Hand microphone supplied

============================================================

Specifications

GENERAL

Frequency Range : 118.000–136.975 MHz

Channel spacing (according to version) : 8.33/25 kHz auto selection or 25 kHz only

Mode : 6K00A3E (AM)

No. of Memory Ch. : 20

Antenna Connector : SO-239 (50 Ω)

Power Supply Requirement (negative ground) : 13.75 V DC or 27.5 V DC automatic selection

Current Drain (at 13.75 V DC) :

- Transmitting : 5.0 A max.

- Receiving : 4.0 A (at AF max.); 0.5 A (at stand-by)

Operating Temperature Range : –30°C to +60°C

Frequency Stability : ±5 ppm (–30°C to +60°C)

Dimensions (projections not incl.) : 150(W) × 50(H) × 180(D) mm

Weight (approx.) : 1.5 kg

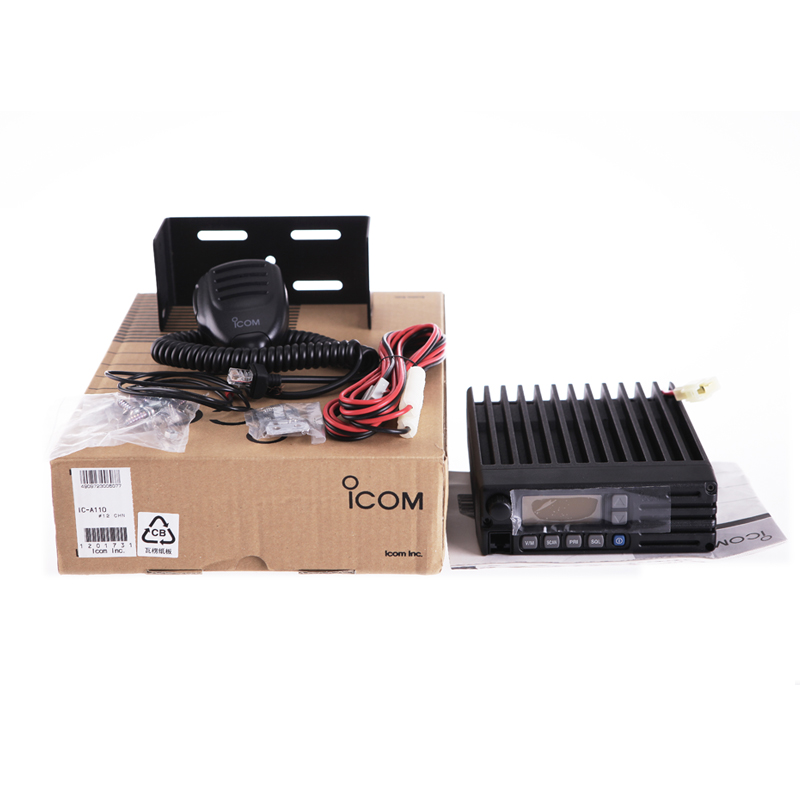

Supplied Accessories : Hand microphone (HM-161), DC power cable, Mounting bracket kit, Microphone hanger kit, Fuses

TRANSMITTER

Output Power : 36 W typ. pep (9 W typ. for CW)

Modulation Limiting : 70–100% (IC-A110)

Modulation Compression*: Linear 85%; Max. 95%

AF Harmonic Distortion : Less than 10% (at 85% mod.)

Hum and Noise Ratio : More than 40 dB

Spurious Emissions : Less than –16 dBm

Adjacent Ch. Power* : Less than 60 dB (25 kHz); Less than 50 dB (8.33 kHz)

Microphone Connector : 8-pin modular (600 Ω)

RECEIVER

Receiving System : Double conversion superheterodyne

Intermediate Freq. : 1st 38.85 MHz; 2nd 450 kHz

Sensitivity (pd) : Less than 1 μV (at 6 dB S/N)

Squelch Sensitivity (pd; at threshold) : Less than 0.3 μV

Selectivity :

- 25 kHz Ch. Spacing : More than ±8 kHz (at –6dB); Less than ±17 kHz (at –40dB); Less than ±25 kHz (at –60dB)

- 8.33 kHz Ch. Spacing : More than ±2.778 kHz (at –6dB); Less than ±7.37 kHz (at –60dB)

Spurious Response : More than 74 dBμ

Intermodulation Rejection Ratio* : More than 64 dB

Blocking/Desensitisation* : More than 70 dB

Cross modulation rejection* : More than 70 dB

Audio Output power (at 13.75 V; 10% dist.; 60% mod.) :

- Internal Speaker : 1.5 W typical w/8 Ω load

- External Speaker : More than 10.0 W w/8 Ω load

- Headset (side tone) : More than 0.1 W w/500 Ω load

AF Output Impedance :

- EXT SP : 8 Ω

- Headset (side tone) : 500 Ω

===========================================================
