ICOM IC-A120 Avonics VHF Air Band Transceiver
============================================================
Features
· Compatible with both 12V and 24V systems
· Dualwatch and priority scan functions
· Power on password protection
· CI-V commands for external control
· Connect with other radio devices with the VE-PG3 RoIP gateway
============================================================
Specifications
GENERAL
Frequency coverage (TX/RX) : 118.000–136.992MHz
Channel Spacing : 25kHz/8.33kHz
Type of Emission : 6K00A3E, 5K60A3E (FCC/EXP); 6K00A3E (Industry Canada)
Operating Temperature : –30˚C to +60˚C
Frequency Stability : ±5ppm (–30˚C to +60˚C)
Antenna Connector : SO-239 (50Ω)
Number of Memory Channels : 200 channels
Power Supply Requirement : 13.75V/27.5V DC
Current Drain (at 13.75V)
- Transmitting : 5.0A (maximum)
- Receiving : 4.0A (at AF max.), 0.5A (at stand-by)
Dimensions (W×H×D, Projections not included) : 161 × 45 × 175 (mm) (approximately)
Weight (approximately) : 1.5kg (main unit)

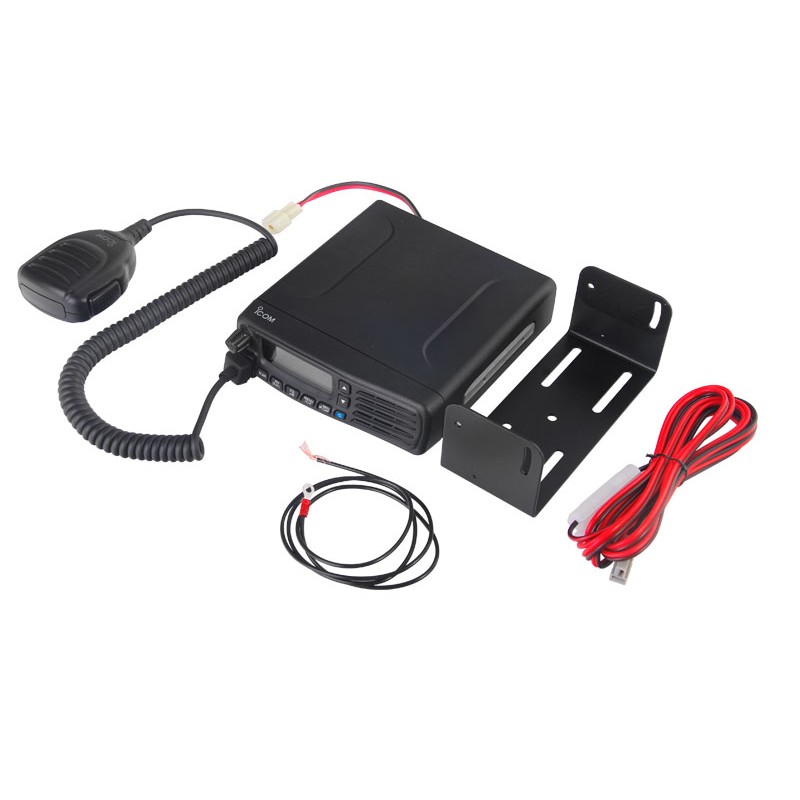

Supplied Accessories : Hand microphone (HM-216), DC power cable, Mounting bracket kit, Microphone hanger kit, Fuses
TRANSMITTER
Output power (at 13.75V) (Carrier Power) : 9.0W typical; 10.0W maximum
Spurious Emissions : Less than –60dBc
Modulation Capability : 70% to 100%
Microphone Impedance : 600Ω
RECEIVER
Intermediate Frequencies : 38.85MHz/450kHz (1st/2nd)
Sensitivity (at 6dB S/N) : Less than 1μV
Selectivity :
- 8.33kHz : 2.778/7.37kHz (6dB/60dB)
- 25kHz : 8/25kHz (6dB/60dB)
Spurious Response : More than 74dBμ
Audio Output Power (10% distortion, 60% modulation) :
- Internal SP (8Ω load) : 1.5W typical
- External SP (8Ω load) : More than 10W
- Headphone (500Ω load) : More than 100mW
===========================================================
