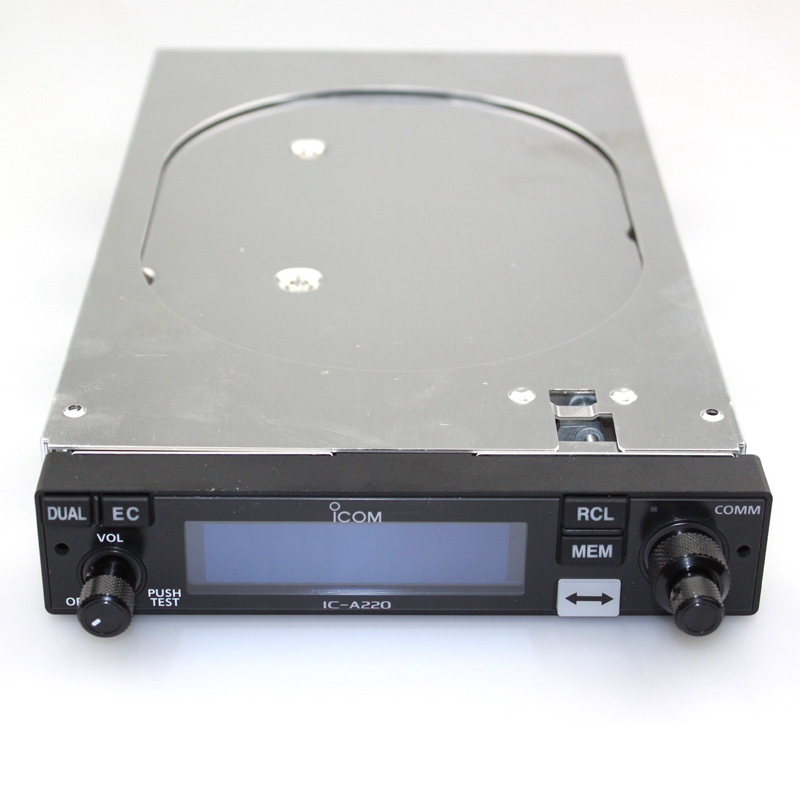

ICOM IC-A220 VHF Avionics Air Band Transceiver
============================================================
Features
· Automatic squelch function detects the signal level and automatically adjusts the squelch level
· Built-in voice activated intercom function allows pilot and co-pilot to talk via the headset
· Connect the A220 to an external GPS
· Built-in DC-DC converter accepts a 12/24V DC power source
· Automatic weather channel scanning and receive
· Dualwatch and priority watch functions
· One touch access to 121.5 MHz emergency frequency
· Side tone function for monitoring your voice with headset
· ANL (Automatic noise limiter) function reduces pulse type noise
· Remote control capability
· Dial lock and panel lock
· Time-out-timer
· Slim 34mm (1.34 inch) height can be installed in a limited panel space
· D-Sub 25-pin industry standard connector for easy installation
· Two types of menu mode; settings menu and configuration menu
============================================================
Specifications
GENERAL
Frequency Coverage :
- TX/RX (8.33 kHz spacing) : 118.000 – 136.992 MHz
- TX/RX (25 kHz spacing) : 118.000 – 136-975 MHz
- RX (Weather channel) : 161.650 – 163.275 MHz
Frequency Spacing : 8.33 kHz/25 kHz
Mode : AM (6K00A3E, 5K60A3E)
Frequency Stability : ±5 ppm
Operating Temperature : -10°C to +60°C
Antenna Impedance : 50 Ω
Number of Channels : 20 regular, 50 group memory, 10 GPS, 20 history, 10 weather
Power Supply Requirement : 13.8 V/27.5 V DC (Negative ground)
Dimensions (W x H x D, projections not included) : 160 × 34 × 271 mm
Weight (approximately) : 1.0 kg
Supplied Accessories : Mounting bracket kit
TRANSMITTER
Output Power : 8 W (Carrier power)
Spurious Emission : –60 dBc
Modulation Limiting : 70% (Maximum 98%)
Microphone Impedance 600 Ω
RECEIVER
Intermediate Frequencies : 38.85 MHz/450 kHz (1st/2nd)
Sensitivity :
- AM (6 dB S/N) : Less than 2 µV
- FM (12 dB SINAD) : Less than 1.4 µV
- FM (BW:15 kHz at 12 dB SINAD) : 0.5 μV (@ 28.0 – 29.7 MHz), 0.25 μV (@ 50 MHz band)
Spurious Response : More than 74 dBµ
Audio Output Power :
- External SP : 5 W with a 4 Ω load
- Headphone : 60 mW with a 500 Ω load
===========================================================
