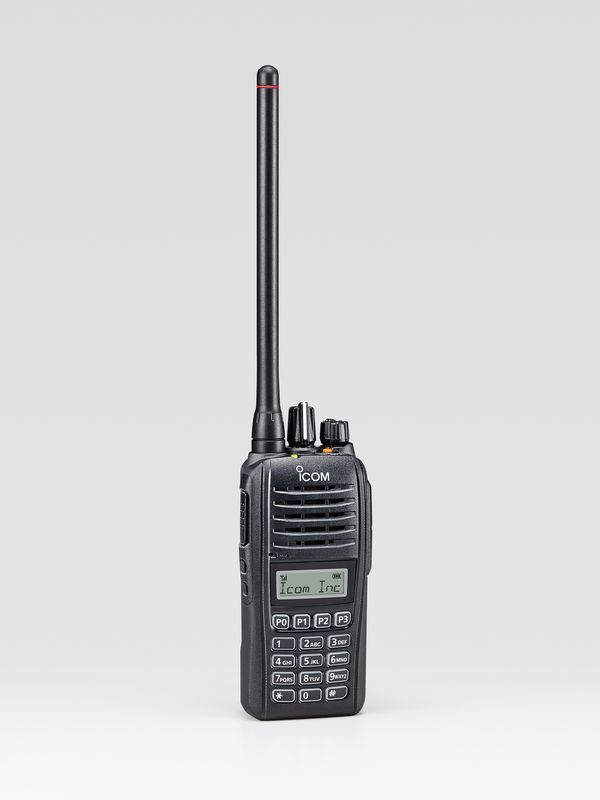

ICOM IC-F1100DT IDAS Radios VHF Digital Handheld Transceivers
============================================================
Features
· 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
· 128 Channels / 8 Zones (for LCD types)
· 16 Channels (for non-display types)
· Icom’s customized speaker offers a louder 1500 mW audio output
· An engineered casing that amplifies and improves acoustic sound clarity
· Compact (52.2 (W) × 111.8 (H) mm; 2.1 × 4.4 in) and lightweight
· IP67/55/54 waterproof and dust-tight protection
· Tested to 12 categories of MIL-STD-810-G environmental tests
· AquaQuake™ – Expels water ingress from the speaker grill
· DTMF autodial memories
· 16-position rotary selector and ON/OFF volume knob
· Programmable keys – Increase the number of programmable key assignments by using the “Shift key”
· Operating times of up to 18 hours (with the supplied BP-280 battery pack)
· Eight character alphanumeric display (for LCD types)
· Three color LED
============================================================
Specifications
GENERAL
Frequency coverage* (*Varies according to version) : 136–174 MHz (NXDN/dPMR)
Number of Channels : 128 channels/ 8 zones
Type of Emission* (*Depending onversion) :
- 11K0F3E, 4K00F1E, 4K00F1D (USA)
- 16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EXP)
- 16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EUR)
Power Supply Requirement : 7.5V DC nominal
Current Drain (approx.) :
- TX : 1.3A
- RX : 520 mA /110 mA (Max. audio (internal SP)/Standby)
Antenna Impedance : 50Ω
Operating Temperature Range (Radio specification) :
–30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP)
–25°C to +55°C (Radio specification) (EUR)
Dimensions (W × H × D; Projections not included) : 52.2 × 111.8 × 34.1 mm (With BP-280)
Weight (approx.) : 277 g (With BP-280 and MB-133)
Supplied Accessories (*May differ, depending on transceiver version) : Battery pack (BP-280), Belt clip (MB-133), Antenna, Desktop charger (BC-213*), AC adapter* (BC-242 or BC-123SE/SUK/SV)
TRANSMITTER
Output Power (Hi, L2, L1) : 5 W, 2 W, 1 W
Maximum frequency deviation : ± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)
Spurious Emissions :
- 70 dB minimum (USA/EXP)
- 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR/EXP)
Frequency Stability : ±2.0ppm
Audio Harmonic Distortion : 0.8% typ. (25 kHz), 0.9% typical (20 kHz), 1.0% typical (12.5 kHz) (at AF 1 kHz 40% deviation)
FM Hum and Noise (without CCITT filter) : 46 dB typ. (25 kHz) (EXP), 44 dB typ. (12.5 kHz) (USA/EXP)
Residual Modulations (with CCITT filter) : 51 dB typical (25 kHz), 49 dB typical (20 kHz), 45 dB typical (12.5 kHz) (EUR/EXP
FSK Error : 5% maximum
External Microphone Connector : 3-conductor 2.5 (d) mm (1/10 in)/2.2 kΩ
RECEIVER
Sensitivity :
- Analog (at 12dB SINAD) : 0.24 μV typical
- Analog (at 20dB SINAD) : –5 dBμV typ. emf (25/20 kHz), –2 dBμV typ. emf (12.5 kHz)
- Digital (at 5% BER) : –9 dBμV typical emf (0.18 μV typical)
Adjacent Channel Selectivity : 77 dB typ. (25 kHz), 75 dB typ. (20 kHz), 67 dB typ. (12.5 kHz), 59 dB typ. (digital)
Spurious Response Rejection : 80 dB typical
Intermodulation Rejection :
- Digital : 71 dB typ. (USA/EXP), 74 dBμV emf typ. (EUR/EXP)
- Analog : 76 dB typ. (25 kHz, EXP), 75 dB typ. (12.5 kHz, USA/EXP), 69 dB typ. (EUR/EXP)
Hum and Noise :
- With CCITT Filter : 48 dB typ. (25 kHz, EXP), 43 dB typ. (12.5 kHz, USA/EXP)
- Without CCITT Filter : 51 dB typ. (25 kHz), 49 dB typ. (20 kHz), 46 dB typ. (12.5 kHz) (EUR/EXP)
AF output power (at 5% distortion 8Ω load) :
*Internal SP : 1500 mW typical
*External SP :
- 450 mW typical (single end)
- 1500 mW typical (BTL, HM-222HLWP connected*)
External Speaker Connector : 2-conductor 3.5 (d) mm (1⁄8 in)/8 Ω
===========================================================
