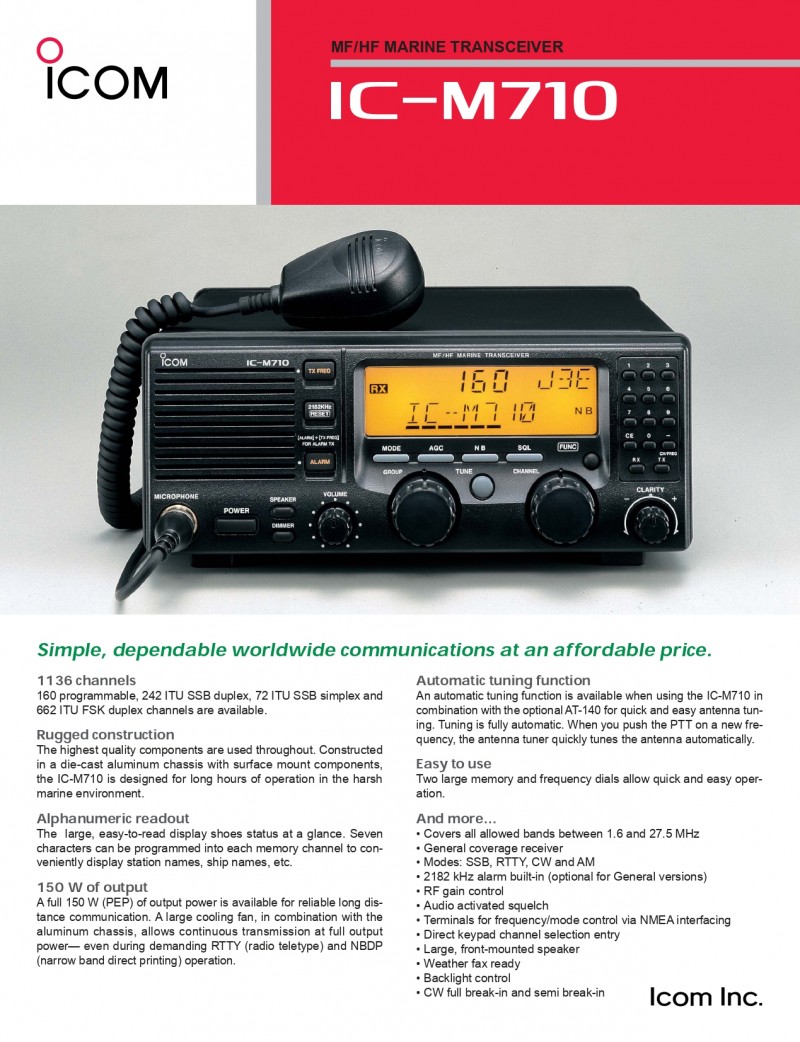

ICOM IC-M710 Marine SSB MF/HF Marine Transceiver
============================================================
Features
· Covers all allowed bands between 1.6 and 27.5 MHz
· General coverage receiver
· Modes: SSB, RTTY, CW and AM
· 2182 kHz alarm built-in (optional for General versions)
· RF gain control
· Audio activated squelch
· Terminals for frequency/mode control via NMEA interfacing
· Direct keypad channel selection entry
· Large, front-mounted speaker
· Direct keypad channel selection entry
· Weather fax ready
· Backlight control
· CW full break-in and semi break-in
============================================================
Specifications
GENERAL
Frequency Coverage :
- Receive : 500 kHz–29.9999 MHz
- Transmit* : 1.6–27.5 MHz
*Restrictions may apply depending on version.
Mode (Varies with Version) : J3E (USB), H3E, J2B (AFSK), F1B (FSK) R3E, A1A (CW). (available modes may differ depending on version)
Number of Channels : 1136 (max.) (160 programmable; 242 ITU SSB duplex; 72 ITU, SSB simplex; 662 ITU FSK duplex)
Antenna Impedance : 50 Ω (nominal)
Usable Temperature Range : -30°C to +60°C
Freq. Stability : ±10 Hz (–30 to +60°C; –22 to +140°F; ±20 Hz above 15 MHz for General and Marine versions)
Power Supply Requirement : 13.6 V DC ±15% (negative and floating grounds are available depending on version)
Current Drain (at 13.8 V DC) :
- Transmit (max. output power) : 30 A
- Receive (max. audio output) : 2.5 A (negative ground type), 3.0 A (floating ground type)
Dimensions (W x H x D, projections not included) : 291.4 × 116.4 × 315 mm
Weight (approximately) : 7.9 kg (negative ground type), 8.1 kg (floating ground type)
TRANSMITTER
Output Power :
- U.S.A. version : 150, 60, 20 W PEP (selectable), (60, 20 W only for 25 MHz band)
- Europe version : 150, 60 W PEP (selectable) (60 W only for 25 MHz band)
Spurious Emission : –65 dB (USA version); -60 dB (Europe version)
Unwanted Sideband Suppression : 70 dB typical
Carrier Suppression : 40 dB
Unwanted Sideband Suppression : 55 dB
Microphone Impedance : 600 Ω
RECEIVER
Sensitivity :
*J3E, R3E, J2B, F1B, A1A (for 12 dB SINAD) :
- 0.5 μV (1.8–29.9999 MHz)
- 1 μV (1.6–1.7999 MHz)
- 6.3 μV (0.5–1.5999 MHz)
*H3E (for 10 dB S/N) :
- 3.2 μV (1.8–29.9999 MHz)
- 6.3 μV (1.6–1.7999 MHz)
- 32 μV (0.5–1.5999 MHz)
Spurious Rejection Ratio : 70 dB (1.6–29.9999 MHz)
Audio Output Power : 4.5 W at 10% distortion with a 4 Ω load
Audio Output Impedance : 4 to 8 Ω
Clarity Variable Range : ±150 Hz
===========================================================
