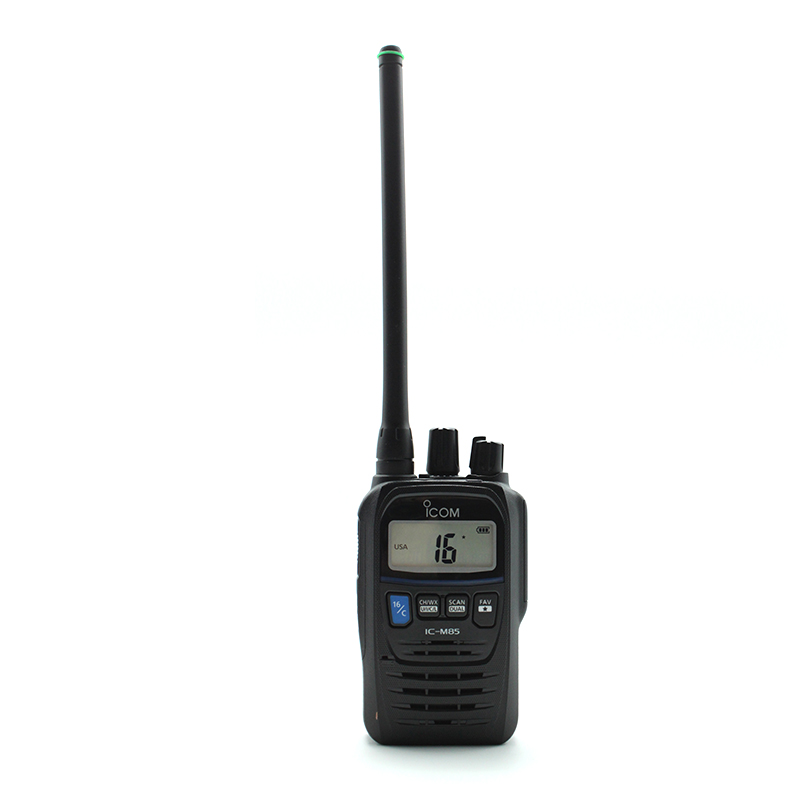

ICOM IC-M85UL Version VHF Marine Transceiver
============================================================
Features
· 5W output power for hazardous locations approved by UL
· Intrinsically safe: Class I, Division 1, Groups C, D; Class II, Division 1, Groups E, F, G; Class III. T3C.
· Non-incendive : Class I, Division 2, Groups A, B, C, D
· ANSI/TIA-4950-A, ANSI/UL 121201
· Compact and lightweight commercial grade marine and land mobile hybrid radio
· Covering 136–174 MHz land mobile frequency, in addition to VHF marine channels
· 700 mW powerful audio provides clear communications
· Abundant Emergency Functions; Man Over Board, Man Down, and Lone Worker Alarms
· Easy switch between channel groups (Marine LMR) with a programmable multi-function button on the top panel
· IP67 and MIL-STD-810G rugged construction
· AquaQuake™ prevents audio degradation from a water-logged speaker
· Ultra Compact Intrinsically Safe Radio with 5 Watt Power Output
· 11 hours of long-lasting operating time (with BP-292IS, TX: RX: Standby = 5 : 5 : 90)
· Optional speaker-microphone, HM-184UL
============================================================
Specifications
GENERAL
Frequency Coverage :
*Marine Channels :
- TX : 156.025–157.425MHz
- RX : 156.050–163.275MHz
*LMR Channels :
- TX/RX : 146.000–174.000MHz
Usable Channel Groups, Number of Channels :
*Marine Channels : INT, USA*, CAN, WX* channels (*Varies according to version)
*LMR Channels : 100 LMR channels
Type of Emission (Channel Spacing) :
*Marine Channels :
- USA : 16K0G3E (25kHz)
- EXP : 16K0G3E (25kHz)
*LMR Channels :
- USA : 11K0F3E (12.5kHz)
- EXP : 16K0F3E (25kHz); 11K0F3E (12.5kHz)
Power Supply Requirement : 7.2V DC nominal
Current Drain (approx.) :
*Marine Channels :
- TX (USA/EXP) : 1.5A (at 5W)
*LMR Channels :
- TX : USA : 0.9A (at 2W); EXP : 1.5A (at 5W)
- RX (max. Audio) : 0.45A
Antenna Impedance : 50 Ω
Operating Temperature Range :
*Marine Channels : -20°C to +60°C
*LMR Channels : −30°C to +60°C
Dimensions (W × H × D;) (Projections not included) : 59 x 92 x 34.1 mm (with BP-292UL)
Weight (approx.) : 285 g (with BP-292UL, FA-SC58V and MBB-3)
Supplied Accessories (*May differ, depending on transceiver version) : Battery pack (BP-292UL), Desktop charger (BC-227), AC adapter (BC-123SA/SE*), Antenna (FA-S58V), Belt clip (MBB-3), Hand strap
TRANSMITTER
Output Power (at 7.2V DC) :
*Marine Channels :
- USA/EXP : 5/3/1W
*LMR Channels :
- USA : 2/1W
- EXP : 5/3/1W
Max. Frequency Deviation :
*Marine Channels : ±5.0kHz
*LMR Channels : ±5.0kHz (Wide); ±2.5kHz (Narrow
Frequency Stability : ±5.0ppm
Spurious Emissions : -70dBc typical
Hum and Noise :
*Marine Channels : 40dB
*LMR Channels : 40dB (Wide); 34dB (Narrow)
Audio Harmonic Distortion : 10% (at 60% deviation)
Modulation Limiting : 60–100% of maximum deviation
RECEIVER
Sensitivity (at 12 dB SINAD) : 0.25μV typ.
Adjacent Channel Selectivity :
*Marine Channels : 70dB typ.
*LMR Channels : 70dB typ.(Wide); 55dB typ.(Narrow)
Spurious Response : 70dB typical
Intermodulation : 70dB typical
Hum and Noise :
*Marine Channels : 40dB
*LMR Channels : 40dB (Wide); 34dB (Narrow)
Audio Output Power :
- Internal SP : 700mW typical (at 10% distortion with 12 Ω load)
- External SP : 700mW (at 10% distortion with 8 Ω load)
===========================================================
