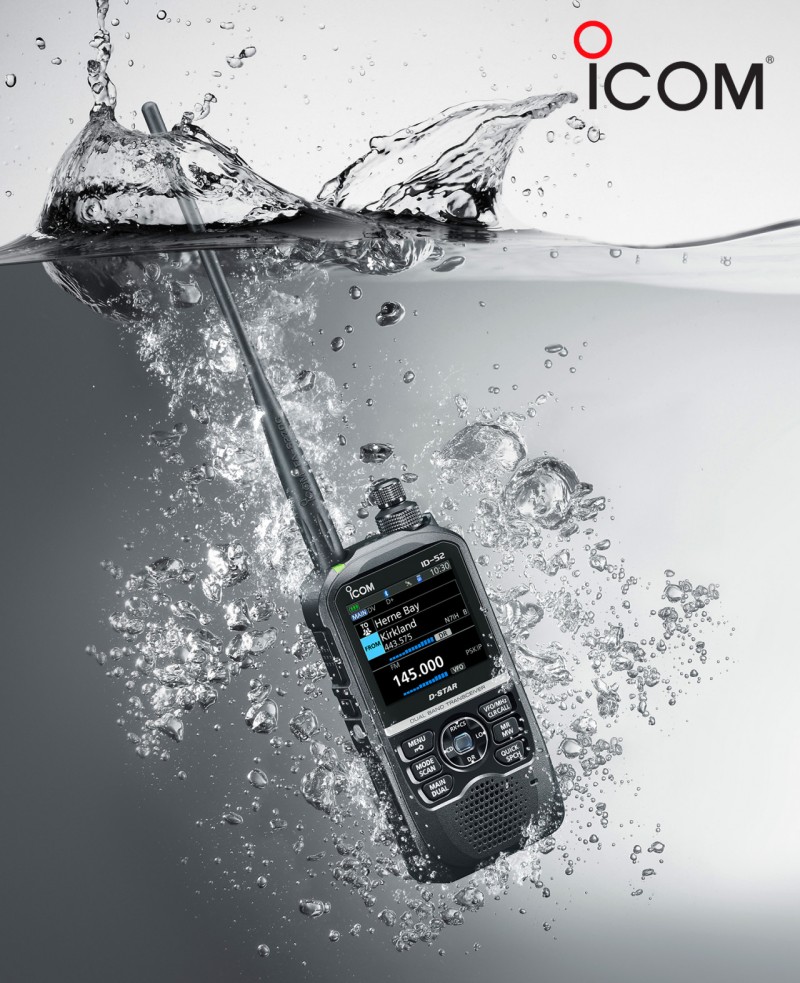

ICOM ID-52A VHF/UHF Amateur Handheld D-STAR Portable

============================================================

Features

·         Large Color Screen with Waterfall Functions

·         Receive Modes

·         Bluetooth® Enabled Features

·         Integrated GPS/GLonASS Receiver

·         microSD card slot

·         Micro USB connector

·         Improved heat dissipation efficiency

·         QSO log in CSV data format

·         Voice recorder function

============================================================

Specifications

GENERAL

Frequency Coverage (Unit : MHz) :

*Version USA

*Transmit : 144 – 148, 430 – 450*

*Receiver : (A) 108–174, 225–479*; (B) 137–174, 375–479*

*Broadcast Band : 88.0–108.0

(A) means A band, (B) means B band. Guaranteed range: * 144–148, 440–450 MHz

Type of Emission : F2D, F3E, F7W

Mode : DV, FM, FM-N, WFM*, AM*, AM-N*. (*WFM, AM and AM-N are Rx only)

Number of Memory Channels : 1000 memory channels, 4 call channels, 50 scan edges, 100 skip channels, 500 broadcast stations, 2500 repeaters, 300 call signs and 300 GPS memories

Frequency Resolution : 5, 6.25, 8.33*, 10, 12.5, 15, 20, 25, 30, 50, 100, 125 and 200kHz. *Selectable depending on the operating band.

Operating Temperature Range : -20°C to +60°C

Frequency Stability : ±2.5ppm (-20°C to +60°C on the basis of 25°C)

Antenna Impedance : 50Ω (SMA)

Power Supply Requirement :

- Battery Pack : 7.4 V DC (with BP-272), 7.2 V DC (with BP-307)

- Alkaline Cells : 5.5V DC (with BP-273)

- External DC : 10 – 16V DC

Current Drain (at 7.4V DC) :

- TX High : Less than 2.5A

- RX AF Max. : Less than 450 mA (DV), Less than 400 mA (FM, FM-N) (Internal SP, 8 ­)

Dimensions (W x H x D, projections not included) : 61.1 × 121.6 × 34.8 mm (with BP-272)

Weight (approx.) : 330 g (with BP-272 & antenna)

Supplied Accessories : Battery pack (BP-272), Wall charger (BC-167SA), Antenna (FA-S270C), Belt clip (MB-127), Hand strap

TRANSMITTER

Modulation System :

- DV : GMSK reactance modulation

- FM, FM-N : FM reactance modulation

Output Power (at 7.4V DC) : 5 W, 2.5 W, 1.0 W, 0.5 W, 0.1 W. (High, Mid, Low2, Low1, S-low)

Spurious Emission : Less than –60 dBc (High, Mid), Less than –13 dBm (Low2, Low1, S-low)

Max. Frequency Deviation : ±5.0/2.5 kHz (FM/FM-N)

Ext. Microphone Impedance : 2.2kΩ

RECEIVER

Sensitivity :

- DV : Less than 0.2 ‑V (at 1% BER)

- FM, FM-N : Less than 0.18 ‑V (at 12 dB SINAD)

Selectivity : More than 50 dB (DV, FM-N), More than 55 dB (FM)

Spurious Rejection: More than 60 dB

Audio Output Power :

- Internal SP : More than 750 mW (8 Ω load)

- External SP : More than 200 mW (8 Ω load)

Receiver Sensitivity (Except Amateur Bands.)

BC Band :

*FM/FM-N/WFM (12 dB SINAD) @ 88.000–108.000MHz

A Band :

*FM/FM-N/WFM (12 dB SINAD) :

Less than 0.18µV @ 137.000–142.000MHz

Less than 0.18µV @ 142.005–148.000MHz

Less than 0.32µV @ 148.005–174.000MHz

Less than 0.56µV @ 225.000–259.995MHz

Less than 0.32µV @ 260.000–354.995MHz

Less than 0.5µV @ 355.000–374.995MHz

Less than 0.5µV @ 375.000–399.995MHz

Less than 0.32µV @ 400.000–479.000MHz

*AM/AM-N (10 dB S/N) :

Less than 1µV @ 108.000–136.991MHz

Less than 1µV @ 137.000–142.000MHz

Less than 1.8µV* @ 225.000–259.995MHz

Less than 1µV* @ 260.000–354.995MHz

Less than 1.8µV* @ 355.000–374.995MHz

B Band :

*FM/FM-N/WFM (12 dB SINAD) :

Less than 0.18µV @ 137.000–148.000MHz

Less than 0.32µV @ 148.005–174.000MHz

Less than 0.5µV @ 375.000–399.995MHz

Less than 0.32µV @ 400.000–479.000MHz

*AM-N mode cannot be received from 225 to 374.995 MHz.

===========================================================
