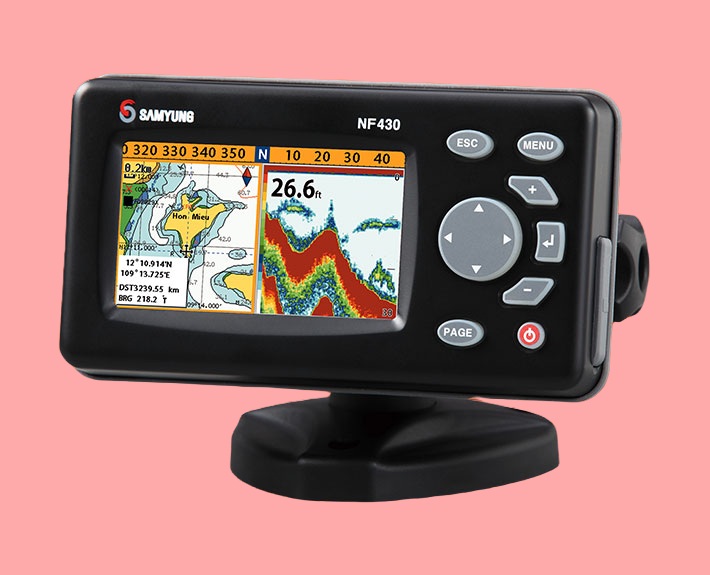

SAMYUNG NF430 GPS/Combo/Fishfinder
============================================================
Features
• Wide 4.3”High resolution TFT LCD
• Fast screen response by high performance CPU
• 10 steps adjustable LED backlight
• Multiple languages available including English, Chinese, Russian,Thai, Malay etc.
• 128MB internal memory and built-in standard Samyung chart
• DGPS(WAAS, MSAS, EGNOS)
• User-friendly operation type by using icon for each menu
• NMEA 0183 interface (AIS, NAVTEX, DSC etc.)
• 2 split screens (Chart, Data, Highway etc.)
• Suitable for small fishing boat
• Using single frequency (200Khz) for detection of small and individual fish
• Easy to use by auto gain
============================================================
Specifications
Size : 127.5 mm(H) x 183 mm(W) x 91.5 mm(D)
Display : Wide 4.3”, TFT color, 480 x 272 pixels
Supply Voltage : 10 to 36 V DC
Supply Current : 13.8 V, 0.13A min-no backlighting. 0.24A max-full backlighting.
Operating Temp. : -10°C to 50°C
Alarms : Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate, low battery, low fuel(optional), loss of DGPS fix, radar guard zone, dangerous AIS vessels.
Chart/User Card : C-MAP™ SD Card (NT-MAX, NT+ or NT) / SD Card
Waypoints : 10,000 waypoints (Event Mark : 48, Mark Color : 16)
Routes : 100 Routes, with up to 100 points each
Tracks : By time or distance, 10 track of 15,000 points
Chart Datums : 216 Chart datums (see next page)
Chart Scale : 0.2 to 500 nm
Interface : NMEA 0183
Frequency : 200KHz
Output : 300W
Depth Range : Min : 0m to 3m, Max : 0m to 300m
Color Display : 16 colors
Brightness : 10-step
Screen Moving Speed : super fast, fast, medium, low, stop
Battery Voltage Display : Voltage number dispaly
AUTO GAIN Adjustment : OFF/ON
A-Mode Display : OFF/ON
Demo Display : OFF/ON
Weak Color Removal : 0% to 75%
===========================================================
