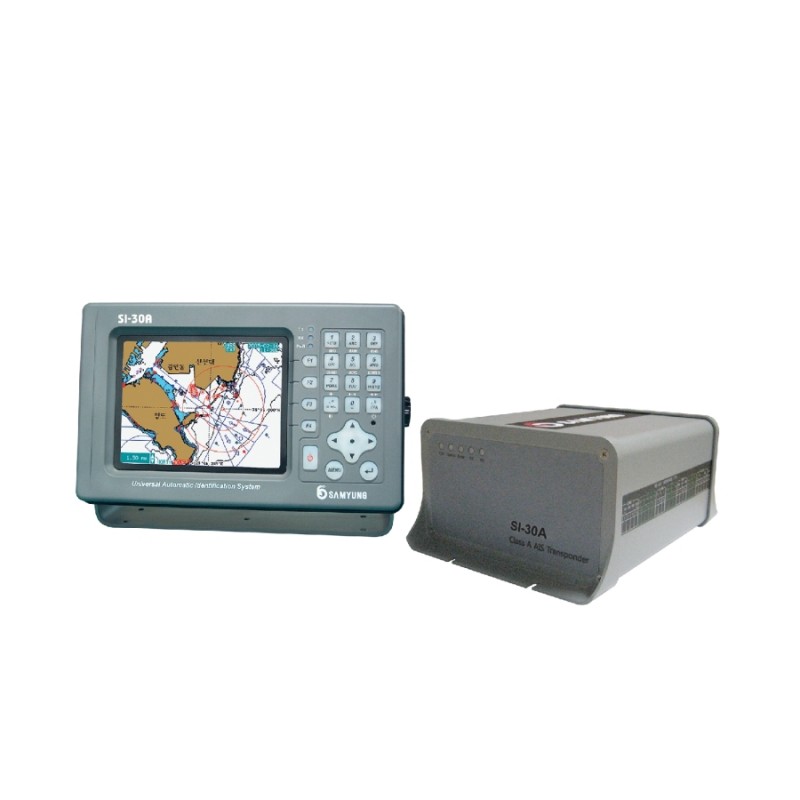

SAMYUNG SI-30A Universal Automatic Indentification System

============================================================

Features

• Class-A Universal AIS Complying with IMO MSC. 74(69) Annex3, IEC 61993-2, ITU-R M.1371-3, ITU-R M.493-13, ITU-R M.825(DSC), IEC-60945, IEC-61162-1/2.

• Displaying navigational data based on Dynamic / Static data.

• Completely compatible with all system using NMEA standard.

• Edition of user message on navigation & ship securities is available.

• GLONASS/GPS function available receiving Signal from Russian Satellite.

• Interfaces with RADAR, ECDIS, GYRO COMPASS, and external GPS, etc.

• Easy identification on other ship’s status by providing electronic chart data.

• System self-restoring function enhances stability.

• Adopted user-friendly one touch keypad.

============================================================

Specifications

GENERAL

• Power Consumption : 50W peak / 10W average(Main Unit)

• Power Voltage : 12V DC -10% +30%(DC10.8V~15.6V)

• Power Supply (SP-700AD) : Input 24V DC -10% +30% / 110V AC / 220V AC

• Default Frequencies : AIS1 (CH 87B) : 161.975 MHz AIS2 (CH 88B) : 162.025 MHz DSC (CH70) : 156.525 MHz

• Frequency Range : 156.025 to 162.025 MHz

• Transponder Size/Weight : 221 x 165 x 95 mm, 1.5 kg

• MKD Display : 5.6 color TFT LED

• MKD Size/Weight : 255 x 162 x 75 mm, 0.9 kg

• GPS Size/Weight: 90 x 65mm (+140mm mounting bar) 0.2kg

AIS TRANSMITTER

• Power Output : 12.5W or 1.0W(41dBm ±1.5 dB or 30dBm ±1.5 dB)

• Antenna Impedance : 50 ohms(SO-239) • Channel spacing : 25kHz

AIS RECEIVERS

• Sensitivity : (PER) < 20% at -107 dBm

• Modulation : GMSK • Data rate : 9600 bits/s

• Frequency Stability : <±1 ppm

• Co-Channel : 10dB

• Adjacent Channel : 70dB

• IMD : 65dB

• Blocking : 84dB

DSC RECEIVERS

• Sensitivity : BER <10-4 at 107 dBm

• Modulation : FSK (1300 Hz/2100 Hz)

SERIAL INPUT/OUTPUTS

• SENS1/2/3/4 : IEC61162-1/2 (input only)

• LONG/AUX/PILOT/RTCM : IEC61162-1/2 (input & output)

• Display : RS422 non-isolated

GPS ANTENNA & RECEIVER

• Antenna : PATCH ANTENNA / TNC (RG-58U)

• Receiver Type : 16channel, L1 frequency, C/A code

• Accuracy : Acquisition -140 dBm / Tracking -150 dBm

ENVIRonMENT

• Operation Temperature : -15˚C to +55˚C

• Storage Temperature : -25˚C to +75˚C

• Vibration : IEC 60945

===========================================================
