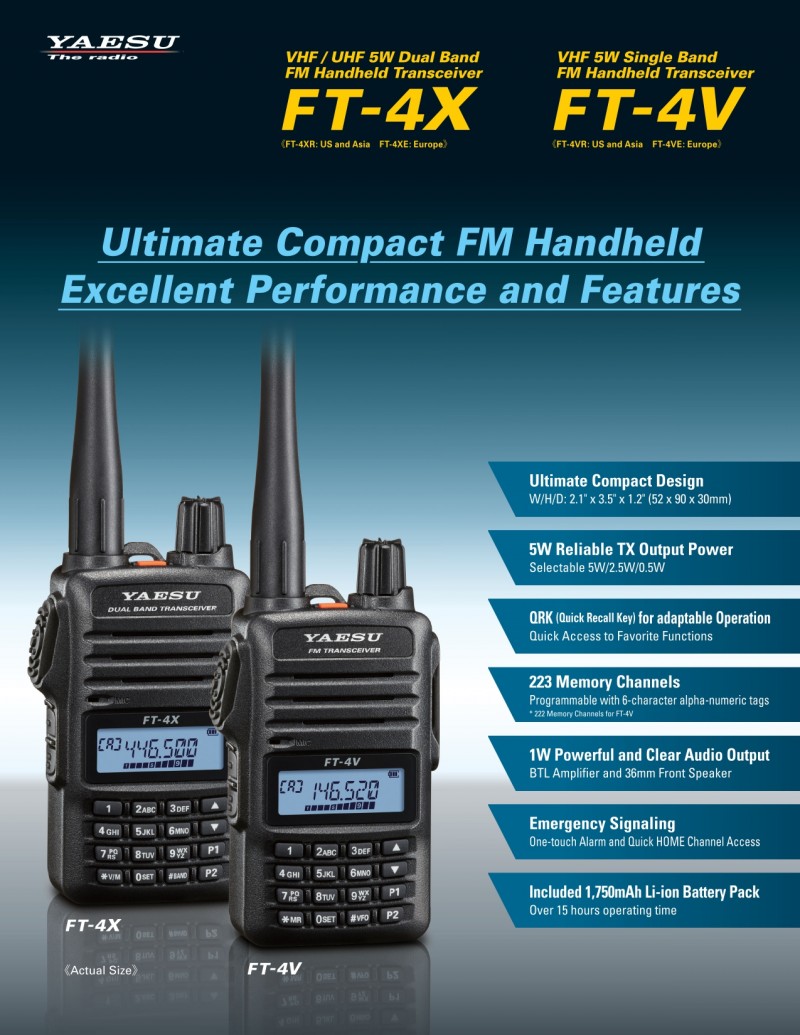

YAESU FT-4V VHF 5W Single Band FM Handheld Transceiver
============================================================
The FT-4V are Ultimate compact, ruggedly constructed FM transceivers with an oversized front speaker that provides a full 1 watt of crisp, clear high quality audio output. They are packed with excellent performance and valuable features demanded by discriminating Radio operators.
Features
· Ultimate Compact Design, Measuring W52 x H90 x D30mm
· 5 Watts of Reliable RF Power within an ultra-compact body
· Three Selectable TX Power settings : 5W(High)/2.5W(Middle)/0.5W(Low)
· One Watt Powerful Audio Output and Clear Audio from the 36mm Front Speaker
· QRK (Quick Recall Keys) Two User Programmable Keys for direct Access to favorite functions
· 222 Memory Channels : 200 basic memories, 2 Home-channels and 10 sets of PMS memory channels
· The Channel TAGs are programmable with 6 alpha-numeric characters for easy recognition
· Over 15 hours Operating time with Supplied 1,750mAh Li-ion Battery pack
· 3.5-Hour Rapid Charger (SBH-22) Included (With SBR-28LI)
· One-touch Alarm and Quick Home Channel Access for Emergency Signaling
· Versatile Scanning Capabilities : VFO Scan, Memory Scan, Programmable Memory Scan (PMS), Memory Bank Scan and Dual Receive
· WX Channels with “Severe Weather” alert
· VOX Operation with Optional VOX Earpiece Microphone (SSM-512B)
· PC Programmable with Optional Programming Cable (SCU-35)
· Transceiver-to-Transceiver Cloning with Optional Cloning Cable (SCU-36)
· FM Broadcast Receiver Equipped
· ARTS (Automatic Range Transponder System) function
· DTMF Operation
· CTCSS/DCS Operation
· Busy Channel Lock Out (BCLO)
· Battery Saver function
· Automatic Power Off (APO) feature
· Transmitter Time Out Timer (TOT)
============================================================
Specifications
GENERAL
Frequency Range :
- RX : 136 – 174MHz
- TX : 136 – 174MHz
- FM Broadcast : 65 – 108MHz
Channel Steps : 5/10/12.5/15/20/25/50/100kHz
Frequency Stability : ±2.5ppm -10°C to +60°C
Emission Type : F2D, F3E, F2A
Antenna Impedance : 50 Ohms
Supply Voltage : Nominal : 7.4V DC, Negative Ground
Current Consumption :
- 190mA (Receive) 200mW Output
- 95mA (Standby, Saver Off)
- 23mA (Standby, Saver On)
- 5mA (Auto Power Off)
- 1.5A (5W TX, 144MHz) 7.4V DC
Operating Temperature : -20°C to +60°C
Case Size : 52 (W) x 90 (H) x 30 (D) mm, without Knob and Antenna
Weight (Approx.) : 250g with SBR-28LI and Antenna
Included : Li-ion battery 7.4V 1,750mAH (SBR-28LI), Rapid Charge (SB-22), AC Adapter (SAD-20), Belt Clip (SHB-18), Antenna
TRANSMITTER
RF Power Output : 5W (High) / 2.5W (Middle) / 0.5 (Low) @ 7.4V with SBR-28LI
Modulation Type : Variable Reactance
Maximum Deviation : ±5.0kHz
Spurious Emission :
- At least 60dB down (@ High and Middle power)
- At least 50dB down (@ Low Power)
Microphone Impedance : 2k Ohms
RECEIVER
Circuit Type : Direct-Conversion
Sensitivity : 0.2µV for 12dB SINAD (140 – 150MHz, NFM)
Selectivity : 12kHz / 35kHz (-6dB/-60dB)
AF Output : MAX Power 1W @ 16 Ohms, 0.8W @ 16 Ohms for 10% THD
===========================================================
