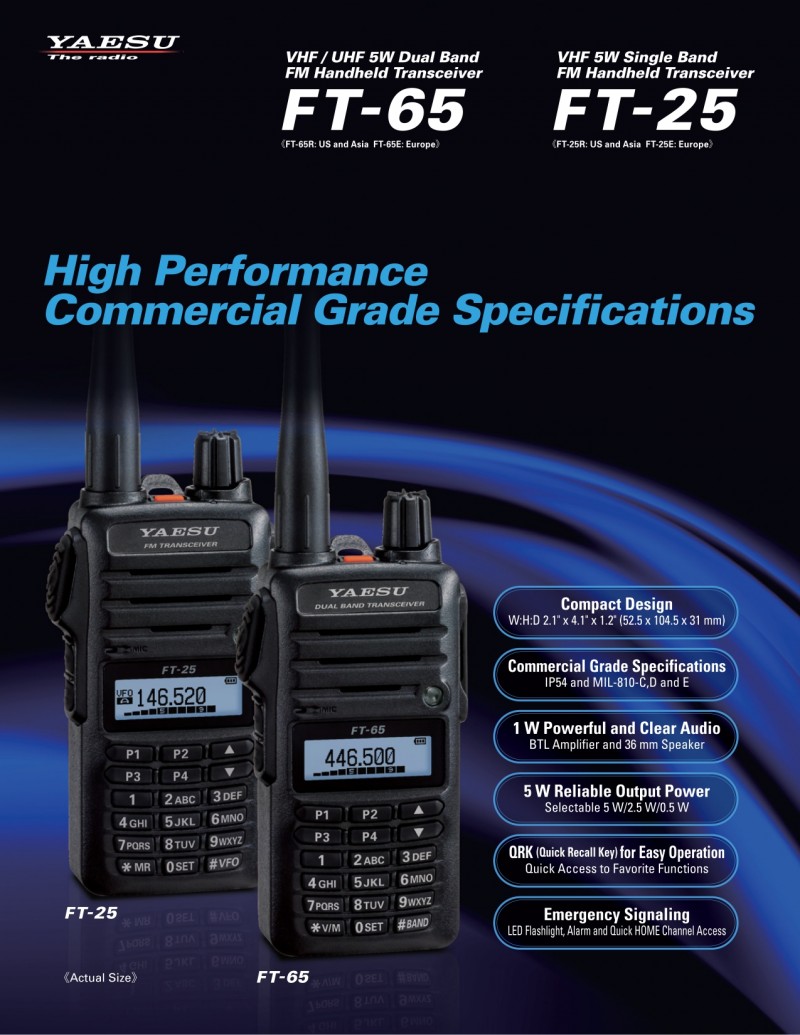

YAESU FT-65R VHF/UHF 5W Dual Band FM Handheld Transceiver
============================================================
The FT-65 are compact FM transceivers, ruggedly constructed to meet commercial grade specifications. They are packed with the high performance and valuable features demand by Radio operators around the world.
Features
· Compact Design, Measuring W52.5 x H104.5 x D31mm
· 5 Watts of Reliable RF Power within a Compact body
· Three Selectable TX Power settings : 5W(High)/2.5W(Middle)/0.5W(Low)
· One Watt Powerful Audio Output and Clear Audio from the 36mm Front Speaker
· Rugged Construction : Meets IP54 Rating (Dust/Water protection), MIL-810-C, D and E
· QRK (Quick Recall Keys) Four User Programmable Keys for Quick Access to favorite functions
· Over 9 hours Operating time with Supplied 1,950 mAh Li-Ion Battery pack
· Optional High-capacity 2,500 mAh Li-Ion Battery Pack (SBR-26LI) provides over 11.5 hours of Extended Operating Time
· 3.5-Hour Rapid Charger (SBH-22) Included (Using SBR-25LI)
· Large White LED flashlight, Alarm and Quick Home Channel Access for Emergency Signaling
· Versatile Scanning Capabilities : (Programmed VFO Scan, Memory Scan, Priority Channel Scan, Weather alert Scan)
· WX Channels with “Severe Weather” alert (US Version)
· VOX Operation with Optional VOX Earpiece Microphone (SSM-512B)
· PC Programmable with Optional Programming Cable (SCU-35)
· Transceiver-to-Transceiver Cloning with Optional Cloning Cable (SCU-36)
· FM Broadcast Receiver Equipped
· ARTS (Automatic Range Transponder System)
· DTMF Operation
· CTCSS/DCS Operation
· Busy Channel Lock Out (BCLO)
· Battery Saver function
· Automatic Power Off (APO) feature
· Transmitter Time Out Timer (TOT)
============================================================
Specifications
GENERAL
Frequency Range :
- RX : 136 – 174MHz; 400 – 480MHz
- TX : 136 – 174MHz; 400 – 480MHz
- FM Broadcast : 65 – 108MHz
Channel Steps : 5/10/12.5/15/20/25/50/100kHz
Frequency Stability : ±5ppm -10°C to +60°C
Emission Type : F2D, F3E
Antenna Impedance : 50 Ohms
Supply Voltage : Nominal : 7.4V DC, Negative Ground
Current Consumption :
- 205mA (Receive) 200mW Output
- 100mA (Standby, Saver Off)
- 18mA (Standby, Saver On)
- 4mA (Auto Power Off)
- 1.7A (5W TX, 430MHz) 7.4V DC
Operating Temperature : -20°C to +60°C
Case Size : 52.5 (W) x 104.5 (H) x 31 (D) mm, without Knob and Antenna
Weight (Approx.) : 260g with SBR-28LI and Antenna
Included : Li-ion battery 7.4V 1,950mAH (SBR-25LI), Rapid Charge (SB-22), AC Adapter (SAD-20U), Belt Clip (SHB-18), Antenna
TRANSMITTER
RF Power Output : 5W (High) / 2.5W (Middle) / 0.5 (Low) @ 7.4V
Modulation Type : Variable Reactance
Maximum Deviation : ±5.0kHz
Spurious Emission :
- At least 60dB down (@ High and Middle power)
- At least 50dB down (@ Low Power)
Microphone Impedance : 2k Ohms
RECEIVER
Circuit Type : Direct-Conversion
Sensitivity : 0.2µV for 12dB SINAD (420 – 470MHz, NFM)
Selectivity : 12kHz / 35kHz (-6dB/-60dB)
AF Output : MAX Power 1W @ 16 Ohms, 0.8W @ 16 Ohms for 10% THD
===========================================================
